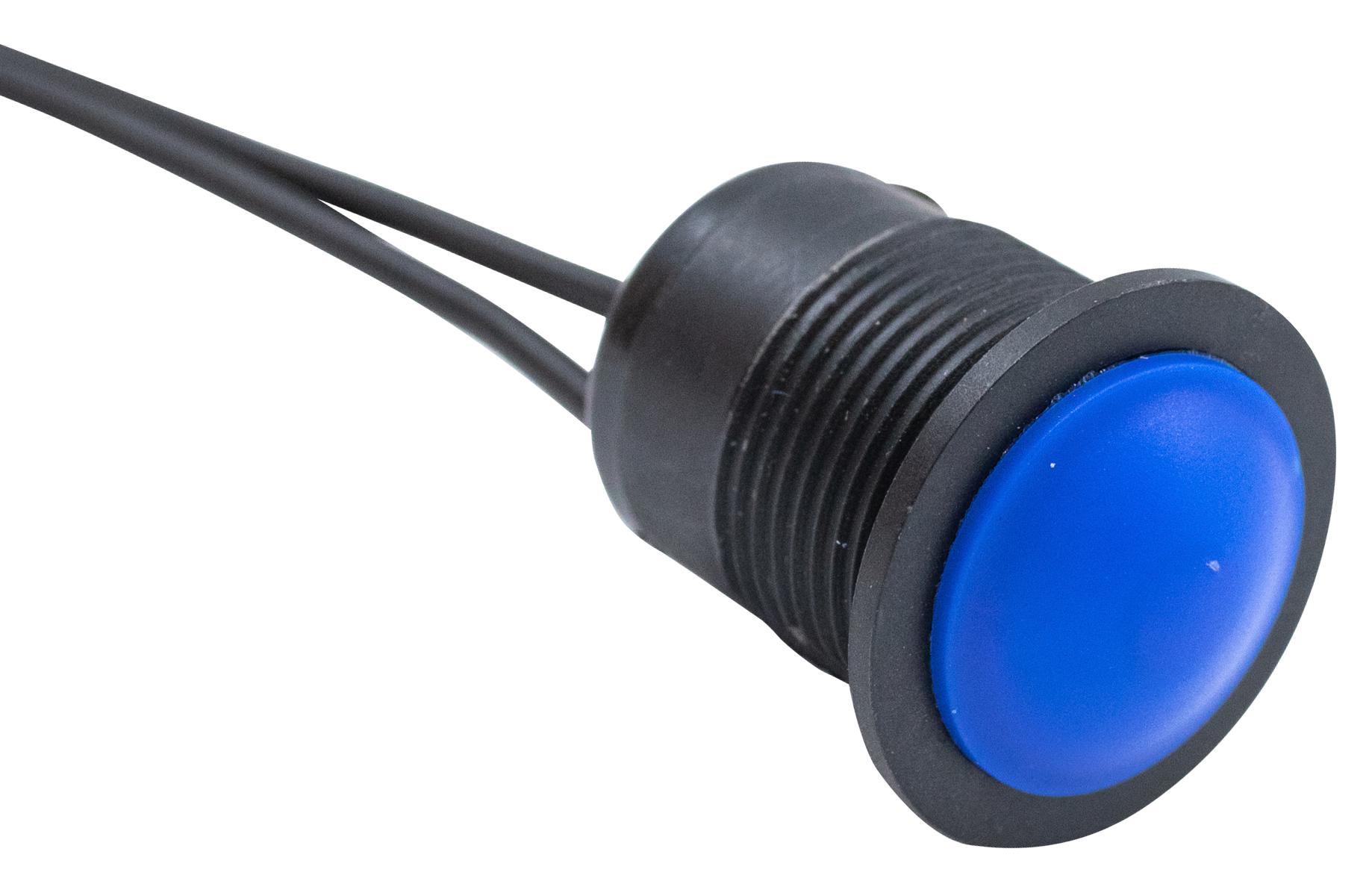

E-SWITCH PMV6DW2BBLU Industrial Vandal Switch
The PMV6 series anti-vandal switches are robust, IP67-rated devices designed for secure and reliable operation in industrial environments. Featuring a 16mm panel cutout, these switches offer multiple cap color options such as black, white, red, yellow, green, and blue, with models available in SPST configurations including On-On, Off-On, and On-Off functions. They have an electrical rating of 2A at 24VDC, a 10,000 cycle lifespan, and a travel distance of 1.5mm. Ideal for control panels requiring durable, vandal-resistant switches with tactile feedback, these switches provide excellent moisture protection and easy installation for various industrial applications.
E-SWITCH PMV6DW2BBLU Industrial Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ Max.@1A/12VDC
- Insulation Resistance: 100 MΩ Min. @ 500VDC
- Dielectric Strength: 500Vrms
- Operating Temperature: -20°C to 65°C
- Travel: 1.5mm
- Moisture Protection: IP67
- Contact Arrangement: SPST On-(On), Off-(On), On-(Off)
- Actuation Force: 7N ±2N
- Panel Thickness: 1-7mm
- Mounting Nut Torque: 0.5-1Nm
- Panel Cutout: 16mm
- Wire Leads: 20AWG UL3385, pre-stripped, 500mm length
- Cap Options: Multiple colors including black, white, red, yellow, green, blue
- Mounting: Panel mounting with nut, suitable for rugged applications
Buy the PMV6 Series – Reliable Vandal Switches for Industrial Applications
Order the PMV6 series vandal switches online now to ensure reliable control in your industrial applications. These switches feature IP67 moisture protection, multiple color caps, and high cycle durability, making them ideal for rugged control panels. With a 16mm panel cutout and 2A/24VDC electrical rating, they deliver excellent tactile feedback and long-lasting performance. Whether you need ON-On, Off-On, or On-Off configurations, purchase these durable, pre-wired switches online today for fast delivery and seamless integration into your control systems.
Get PMV6 series vandal switches today—built for durability and reliable operation in challenging industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PMV6DW2BBLU?
You can click on the BUY or RFQ button to purchase PMV6DW2BBLU from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PMV6DW2BBLU?
You can download the PMV6DW2BBLU datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PMV6DW2BBLU?
E-SWITCH
