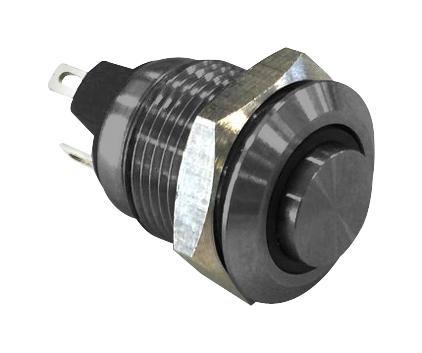

E-SWITCH PV0H24011311 Vandal Switch
The PVO Series Anti-Vandal Switch offers durable, high-performance switching solutions with an IP65-rated enclosure for moisture resistance. It features a 2A, 36VDC electrical rating, with a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles. The switch provides options for illumination with various LED colors, a 12mm panel cutout, and easy installation on panels with a thickness of 1-6mm. Suitable for industrial and control applications requiring reliable, vandal-resistant operation.
E-SWITCH PV0H24011311 Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Cycles: 1,000,000
- Electrical Life: 50,000 Cycles
- Ingress Protection: IP65 rated
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 1.50mm
- Panel Cutout: 12mm diameter
- Panel Thickness: 1-6mm
- LED Options: Dot or ring illumination with multiple colors
- Mounting Nut Torque: 5-14 Nm
- Thread Size: M12 x 0.75
- Actuation Force: 4 N
Buy the Vandal Switch Series PVO: PV0H24011311
Purchase the vandal-resistant switch series PVO online today to benefit from reliable sealing, extended mechanical lifespan, and flexible illumination options suitable for harsh environments. This high-quality switch features a 12mm panel cutout, multiple LED colors, and IP65 moisture protection, making it ideal for industrial, security, and control applications. With a rated electrical current of 2A at 36VDC, it offers dependable operation, easy installation, and long service life. Ensure your project’s safety and performance by buying this robust switch online now.
Order your Vandal Switch Series PVO model PV0H24011311 today and equip your devices with a highly durable, vandal-resistant, and versatile control switch.
