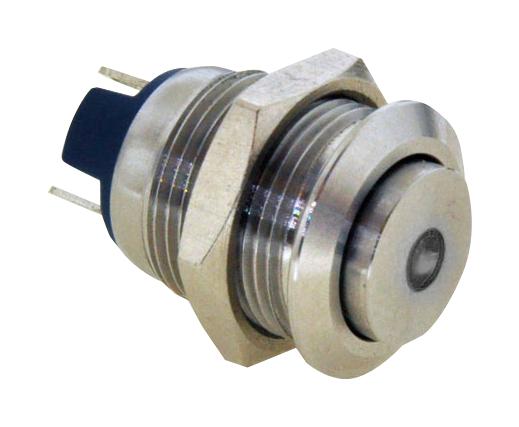

E-SWITCH PV0H240SS311 Anti-Vandal Switch
The PVO Series Anti-Vandal Switch offers robust, durable, and waterproof options suitable for industrial and public applications. It features a 12mm panel cutout, multiple LED illumination color options, and IP65 moisture protection. This switch supports SPST off-on contact arrangement, with a mechanical lifecycle of 1,000,000 cycles, electrical rating of 2A at 36VDC, and contact resistance of 50mΩ max. Its sturdy design ensures reliable operation in harsh environments, making it ideal for security, control panels, and outdoor equipment.
E-SWITCH PV0H240SS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 1.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-On
- Actuation Force: 4 N
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 5-14Nm
- Body and Actuator Material: Steel and Metal finish
- Illumination Options: Ring or Dot, multiple LED colors
Buy the Brand Series Vandal Switch: PV0H240SS311
Purchase the Anti-Vandal Switch online today to ensure reliable, waterproof control solutions for industrial and outdoor applications. Featuring IP65 protection, multiple LED illumination options, and a robust mechanical lifespan, this switch is designed for harsh environments requiring secure operation. Its compact 12mm panel cutout, SPST off-on contact, and high-quality materials guarantee long-lasting performance. Whether for security systems, control panels, or outdoor equipment, ordering online provides quick delivery, easy installation, and trusted quality for all your control needs.
Get Brand PV0H240SS311 vandal-proof switch today—built for durability and reliable outdoor performance.
Frequently Asked Questions
Where can I buy E-SWITCH PV0H240SS311?
You can click on the BUY or RFQ button to purchase PV0H240SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV0H240SS311?
You can download the PV0H240SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV0H240SS311?
E-SWITCH
