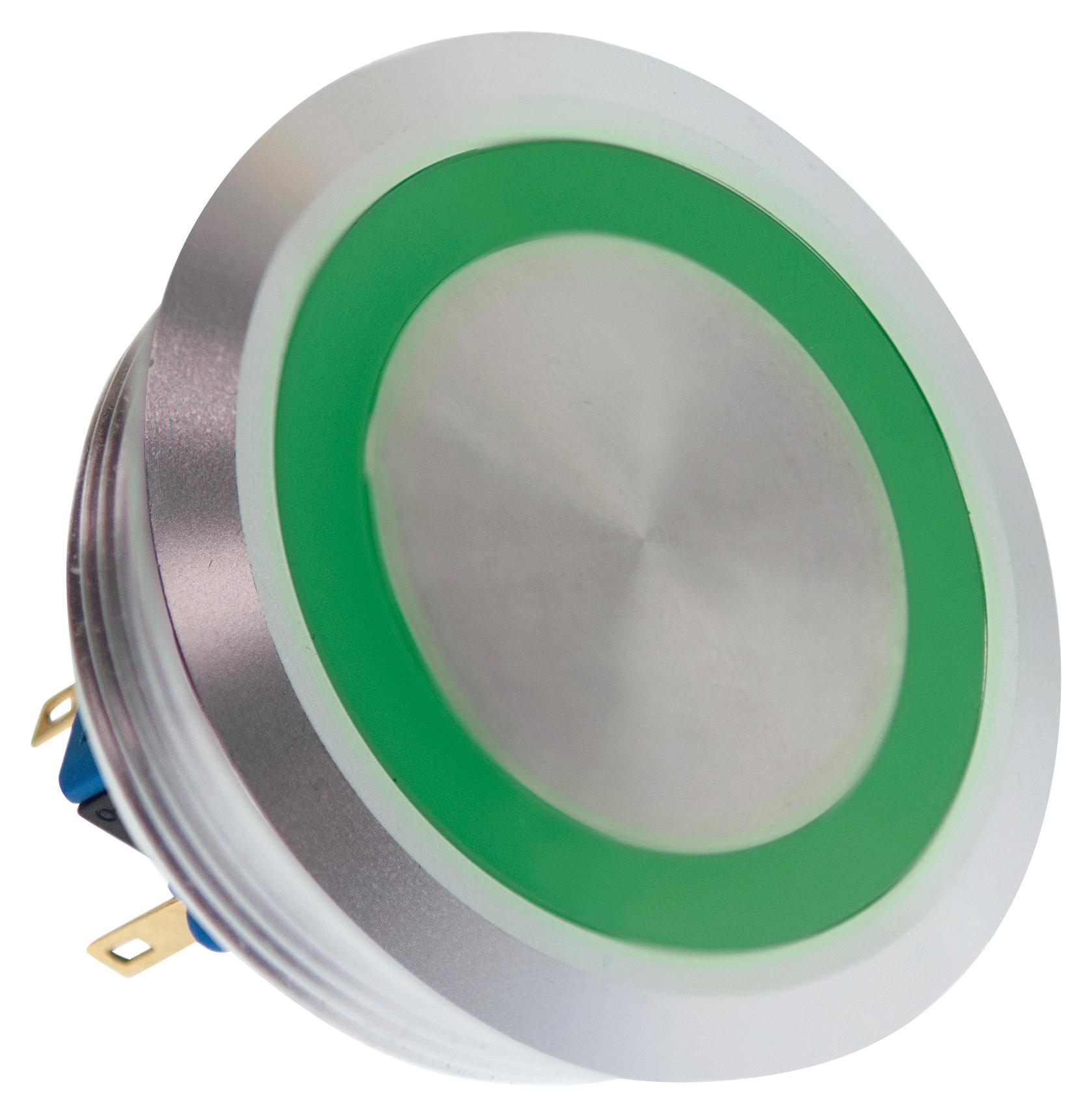

E-SWITCH PV10F2U0SS331 Anti-Vandal Switch
The PV10 series anti-vandal switch features a durable stainless steel body with a 46mm diameter panel cutout and IP65 moisture protection, making it ideal for industrial and harsh environments. It offers various switch configurations, including SPDT and DPDT contacts, with illumination options such as dot and ring types and multiple voltage levels. Designed for panel thicknesses of 1-5mm, it provides reliable mechanical and electrical performance with a mechanical life of 000,000 cycles and an electrical life of 50,000 cycles. Its robust construction and versatile features make it suitable for control panels, automation, and machinery applications.
E-SWITCH PV10F2U0SS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Cycles: 1,000,000
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 6.5N
- Panel Thickness: 1-5mm
- Hex Nut Torque: 0.6Nm
- Body Diameter: 46mm
- Thread Size: M40 x 1.5
Buy the Generic PV10F2U0SS331 – Reliable Anti-Vandal Switch for Industrial Applications
Order the PV10 series anti-vandal switch online today to secure a top-quality, IP65-rated control component suitable for industrial and harsh environment applications. Featuring a stainless steel body, durable mechanically rated for 1,000,000 cycles, and electrically rated for 50,000 cycles, this switch provides reliable operation in demanding conditions. Its compact 46mm diameter and panel thickness compatibility make installation straightforward. Equipped with various switch functions, illumination options, and voltage levels, it’s the optimal choice for automation, machinery controls, and rugged industrial systems. Purchase now for durable, versatile, and corrosion-resistant switching solutions.
Buy PV10F2U0SS331 now and experience unmatched reliability and performance in harsh industrial environments. Perfect for control panels, automation, and machinery, this switch ensures durable operation with IP65 protection and versatile configurations. Enhance your equipment with this robust, stainless steel anti-vandal switch designed to withstand demanding conditions. Get yours today and improve your control system’s resilience and functionality with a trusted, high-quality component built for industrial use.
