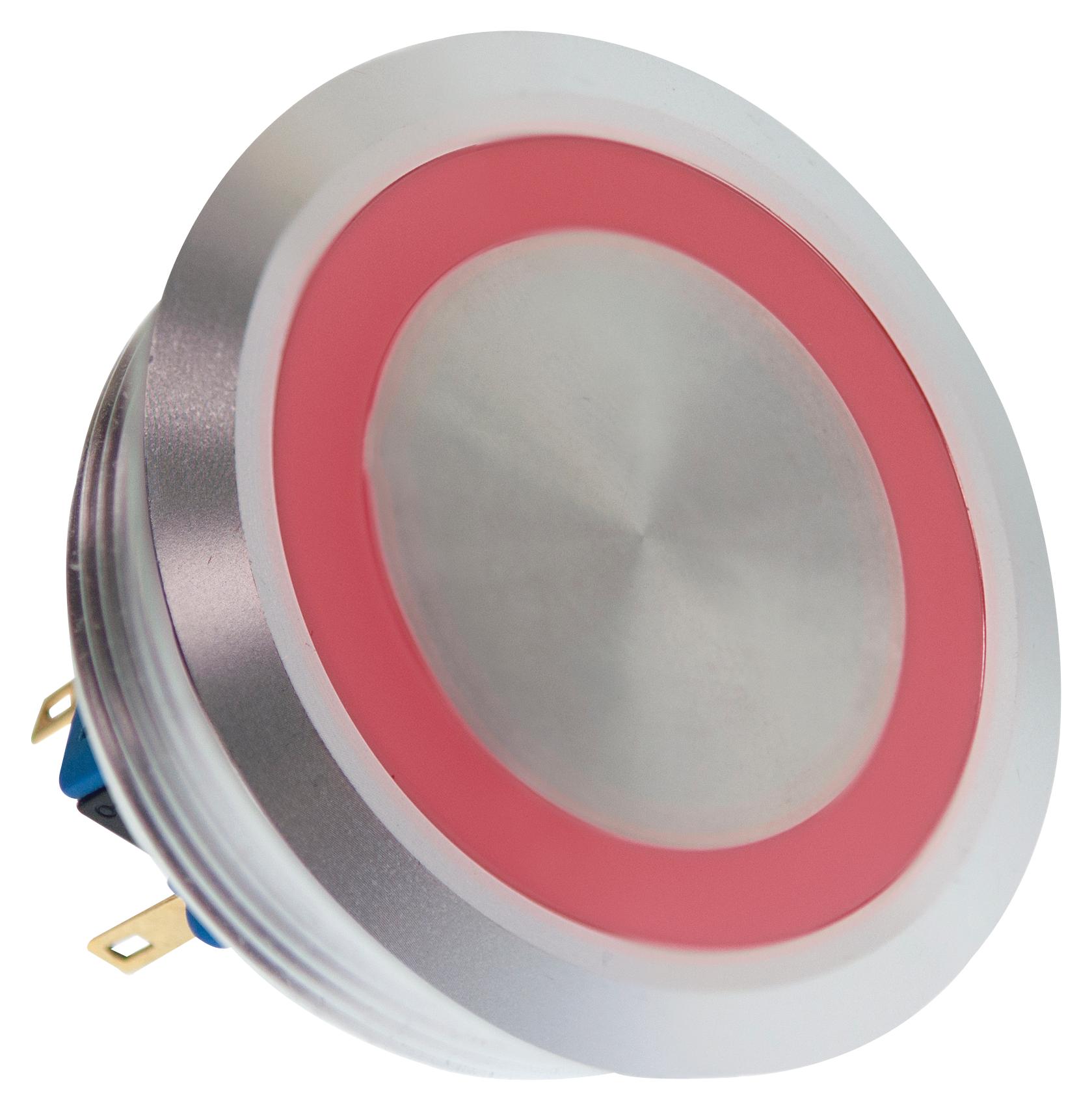

E-SWITCH PV10F2V0SS311 Anti-Vandal Switches
The PV10 series anti-vandal switches are robust, high-reliability devices designed for industrial and security applications. They feature a 40mm panel cutout, moisture protection rated IP65, and multiple contact configurations including SPDT and DPDT. These switches offer illuminated and non-illuminated options with various LED color choices, rated at 2A, 48VDC, with an operating temperature range of -20°C to 55°C. Mechanical life exceeds 50,000 cycles, making them ideal for demanding environments requiring durability and security.
E-SWITCH PV10F2V0SS311 Anti-Vandal Switches Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Cycles: 1,000,000
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 6.5N
- Panel Thickness: 1-5mm
- Hex Nut Torque: 0.6Nm
Buy the Brand Series Anti-Vandal Switches: PV10F2V0SS311
Discover the PV10 series anti-vandal switches, engineered for secure, durable operation in industrial settings. Featuring IP65 moisture protection, multiple contact configurations, and LED illumination options, these switches support a broad range of applications. They combine high reliability, with over 50,000 cycles of electrical life, and a robust 1,000,000 mechanical cycles, ensuring long-term performance. With panel compatibility for 1-5mm thickness and easy installation, these switches are ideal for security and industrial control solutions. Purchase online today and enhance the safety and reliability of your systems.
Buy PV10F2V0SS311 anti-vandal switch now and experience unmatched durability, reliable performance, and versatile illumination options for demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV10F2V0SS311?
You can click on the BUY or RFQ button to purchase PV10F2V0SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV10F2V0SS311?
You can download the PV10F2V0SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV10F2V0SS311?
E-SWITCH
