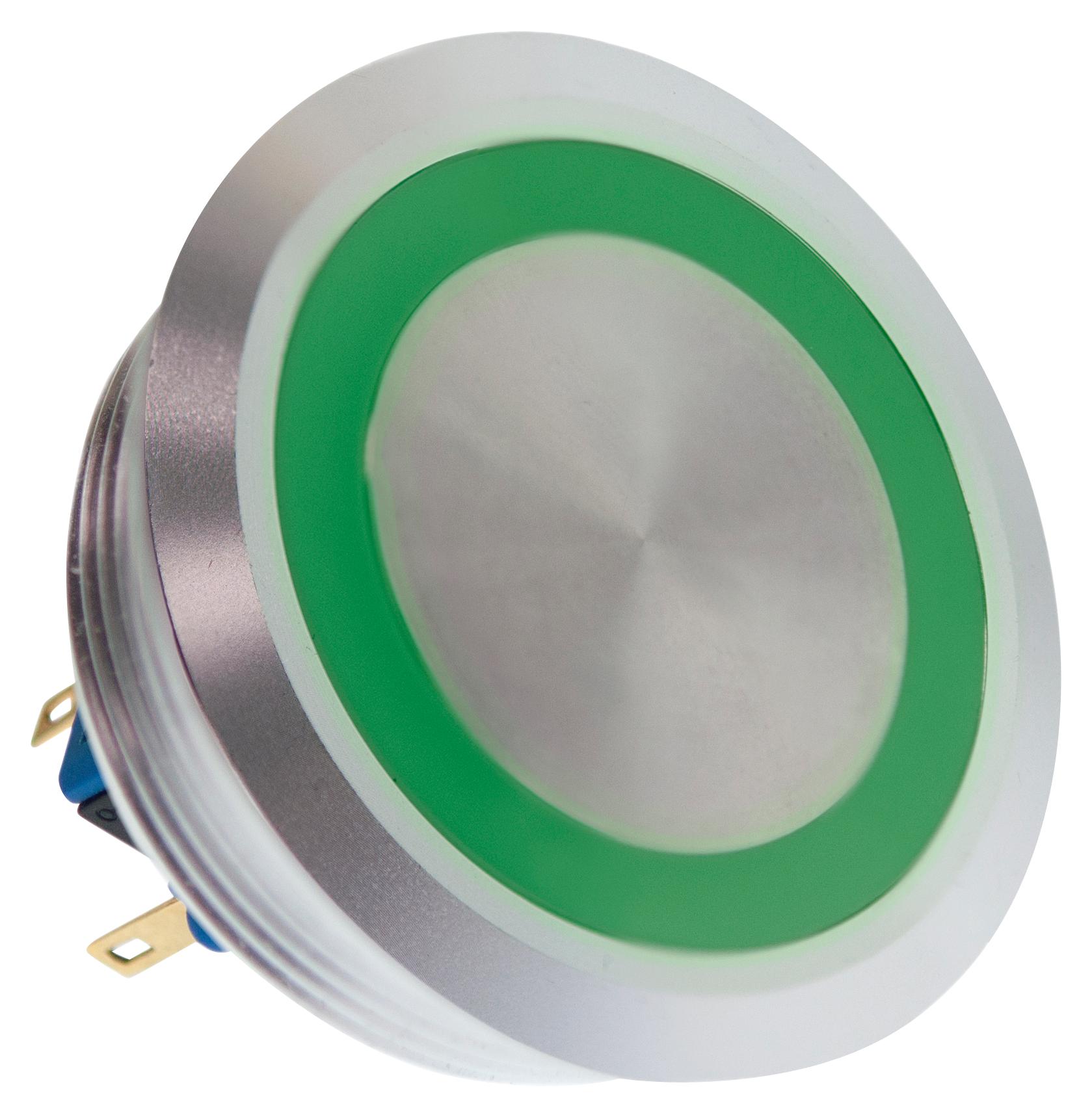

E-SWITCH PV10F2V0SS331 Anti-vandal switch
The PV10F2V0SS331 series anti-vandal switch features a robust 40mm diameter panel cutout with optional dot or ring illumination, IP65 moisture protection, and versatile SPDT or DPDT contact arrangements. Designed for durability, it withstands over 2 million mechanical cycles and offers an electrical life of 50,000 cycles. Suitable for panel thicknesses of 1-5mm, it includes stainless steel body options and multiple illumination voltage choices, making it ideal for industrial, security, and control applications requiring reliable performance under harsh conditions.
E-SWITCH PV10F2V0SS331 Anti-vandal switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Cycles: 1,000,000
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min. @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 6.5N
- Panel Thickness: 1-5mm
- Hex Nut Torque: 0.6Nm
Buy the Vandal Switch Series PV10F2V0SS: PV10F2V0SS331
Order the PV10F2V0SS331 series anti-vandal switch online today to ensure your industrial or security control panels are equipped with reliable, rugged components. This switch offers IP65 moisture protection, robust stainless steel construction, and multiple illumination options including dot and ring styles, with a panel cutout of 40mm. Its sturdy design withstands over 1 million mechanical cycles and 50,000 electrical cycles, making it perfect for demanding environments requiring dependable performance and long service life.
Buy PV10F2V0SS331 vandal switch now and experience unmatched durability, IP65 protection, and flexible illumination options for reliable industrial control.
Frequently Asked Questions
Where can I buy E-SWITCH PV10F2V0SS331?
You can click on the BUY or RFQ button to purchase PV10F2V0SS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV10F2V0SS331?
You can download the PV10F2V0SS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV10F2V0SS331?
E-SWITCH
