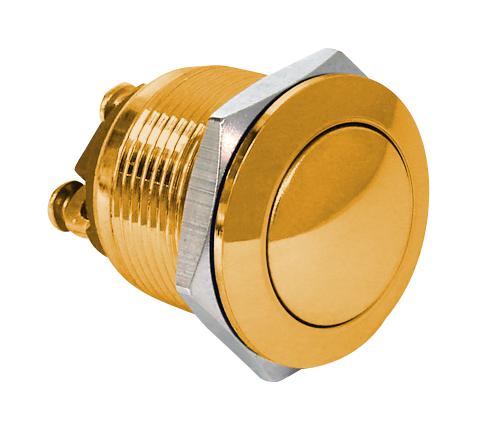

E-SWITCH PV1S640GG Anti-Vandal Switch
The PV1 Series Anti-Vandal Switch is a durable, IP65-rated switch suitable for industrial applications requiring reliable, vandal-resistant operation. Featuring a 19mm panel cutout, it offers solder or screw terminal options, with a flat, high, or domed actuator. Rated for 2A at 36VDC, it has a mechanical life of 1,000,000 cycles and electrical life of 200,000 cycles. Operating within -20°C to 55°C, it ensures excellent moisture protection and robust performance in harsh environments, ideal for control panels and security systems.
E-SWITCH PV1S640GG Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- IP65 rated moisture protection
- Panel Cutout: 19mm
- Terminal Options: Solder or screw
- Operating Temperature: -20°C to 55°C
- Travel: 2.50mm
- Actuation Force: 4N
- Panel Thickness: 1-8mm
- Body Material: Metal with black anodized finish
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 2,000VAC
- Mounting Nut Torque: 0.8Nm
Buy the Brand PV1 – Reliable Vandal-Resistant Switch for Industrial Applications
Order the PV1 Series Anti-Vandal Switch today online to ensure your industrial equipment remains protected against vandalism and harsh conditions. With IP65 moisture protection, high durability, and reliable electrical performance rated for 2A at 36VDC, this switch offers long-lasting service. Its easy mounting with a 19mm panel cutout, solder or screw terminal options, and robust actuation make it ideal for control panels, security systems, and automation setups. Secure your equipment now with this top-tier vandal-resistant switch.
Buy PV1 anti-vandal switch now and experience unmatched reliability and performance for harsh industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV1S640GG?
You can click on the BUY or RFQ button to purchase PV1S640GG from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV1S640GG?
You can download the PV1S640GG datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV1S640GG?
E-SWITCH
