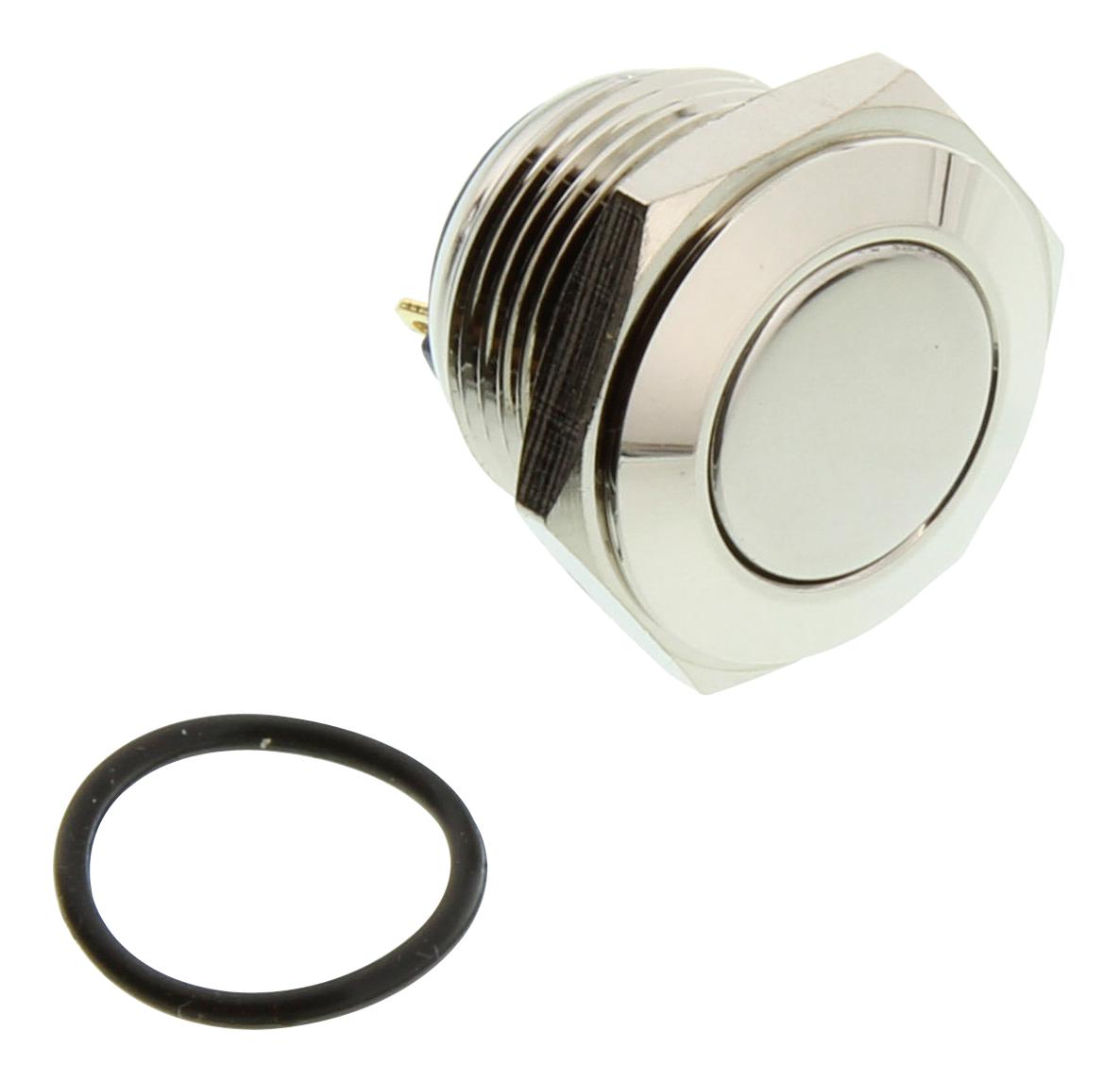

E-SWITCH PV2F240NN Vandal-Resistant Switch
The PV2F240NN is a vandal-resistant switch designed for reliable operation in demanding environments. It features a 16mm panel cutout with options for solder or screw termination, high or domed actuators, and a robust IP65 moisture protection rating. Its SPST off-on contact arrangement ensures simple switching, with a mechanical life of 1,000,000 cycles and electrical life of 200,000 cycles. Suitable for industrial, security, and public access applications, this switch offers durability and versatility for various control needs.
E-SWITCH PV2F240NN Vandal-Resistant Switch Specifications:
- Flammability: UL 94V-0
- Contact Material: Silver or Nickel platted contacts
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Housing: Metal or plastic construction with vandal-resistant design
- Actuator Options: Flat, High, Domed, Illuminated
- IP Rating: IP65 moisture protection
- Operating Temperature: -20°C to 55°C
- Solder Termination: Yes
- Screw Termination: Yes
- Panel Thickness: 1-6mm
- Actuation Force: 4 N
- Travel: 2.50mm
- Body Finish Options: Polished, Brushed, Black Anodized, Gold, Nickel
- Threaded Mounting: M16 x 1.0
- Mounting Nut Torque: 0.8Nm
Buy the Vandal-Resistant Switch Series PV2: PV2F240NN
Order the PV2F240NN vandal-resistant switch online today to ensure reliable performance in demanding environments. This switch combines IP65 moisture protection with a durable metal or plastic housing, making it ideal for security, industrial, and public access applications. It features a 16mm panel cutout, SPST off-on contact configuration, and options for solder or screw terminations, providing flexible installation. Its high durability guarantees a long service life of up to 1,000,000 mechanical cycles, making it an excellent choice for demanding control systems.
Get PV2F240NN vandal-resistant switch today—built for durability, reliable switching performance, and versatile mounting options.
Frequently Asked Questions
Where can I buy E-SWITCH PV2F240NN?
You can click on the BUY or RFQ button to purchase PV2F240NN from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV2F240NN?
You can download the PV2F240NN datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV2F240NN?
E-SWITCH
