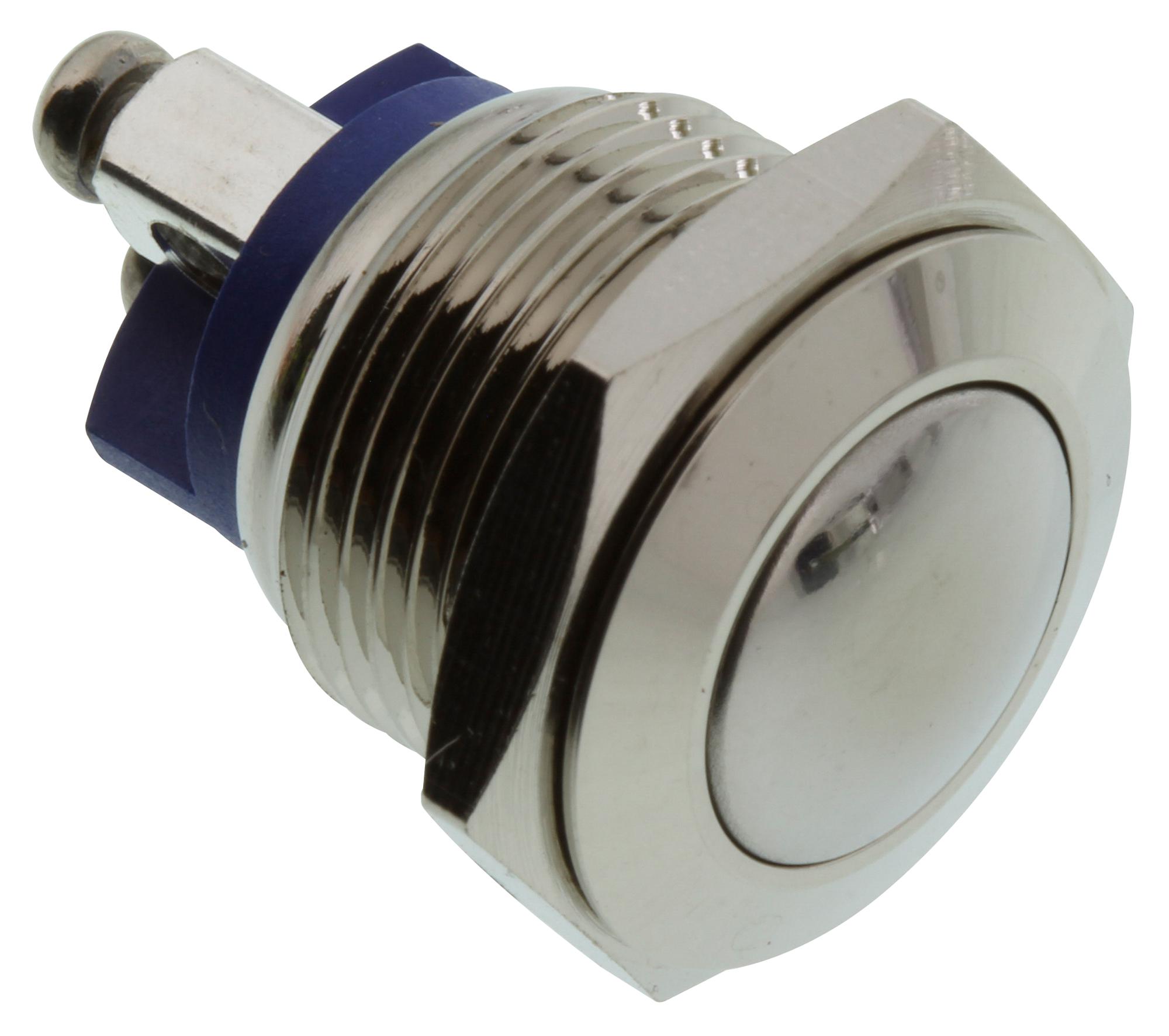

E-SWITCH PV2S640NN Vandal Switch
The PV2 Series Anti-Vandal Switch is a robust, high-durability switch designed for secure operations in harsh environments. Featuring a 16mm panel cutout, it offers solder or screw termination options, high or domed actuators, IP65 moisture protection, and a mechanical life of 1,000,000 cycles. Suitable for industrial controls, security systems, and outdoor equipment, this switch provides reliable switching with a contact resistance of 50mΩ and an insulation resistance of 1000 MΩ. Its versatile design supports multiple actuator and body finish options for customized applications.
E-SWITCH PV2S640NN Vandal Switch Specifications:
- Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-On
- Panel Cutout: 16mm
- Termination: Solder or screw
- Actuator Options: Flat, high, domed
- Finish Options: Gold, Nickel, Polished, Black anodized
- Material: Stainless steel, Zinc alloy
- Mounting Torque: 0.8Nm
Buy the Vandal Series Mechanical Switch: PV2S640NN
Purchase the PV2 Series Anti-Vandal Switch online today and enjoy a highly durable, IP65-rated switch suitable for demanding industrial, security, and outdoor applications. This switch features a robust design with a 16mm panel cutout, solder or screw termination options, multiple actuator styles, and an impressive lifespan of 1,000,000 mechanical cycles. Its high-quality construction ensures reliable performance, resistance to moisture, and versatile customization, making it an ideal choice for engineers, technicians, and system integrators seeking dependable switching solutions for harsh environments.
Get PV2S640NN today—built for precision, durability, and versatile industrial control applications.
Frequently Asked Questions
Where can I buy E-SWITCH PV2S640NN?
You can click on the BUY or RFQ button to purchase PV2S640NN from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV2S640NN?
You can download the PV2S640NN datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV2S640NN?
E-SWITCH
