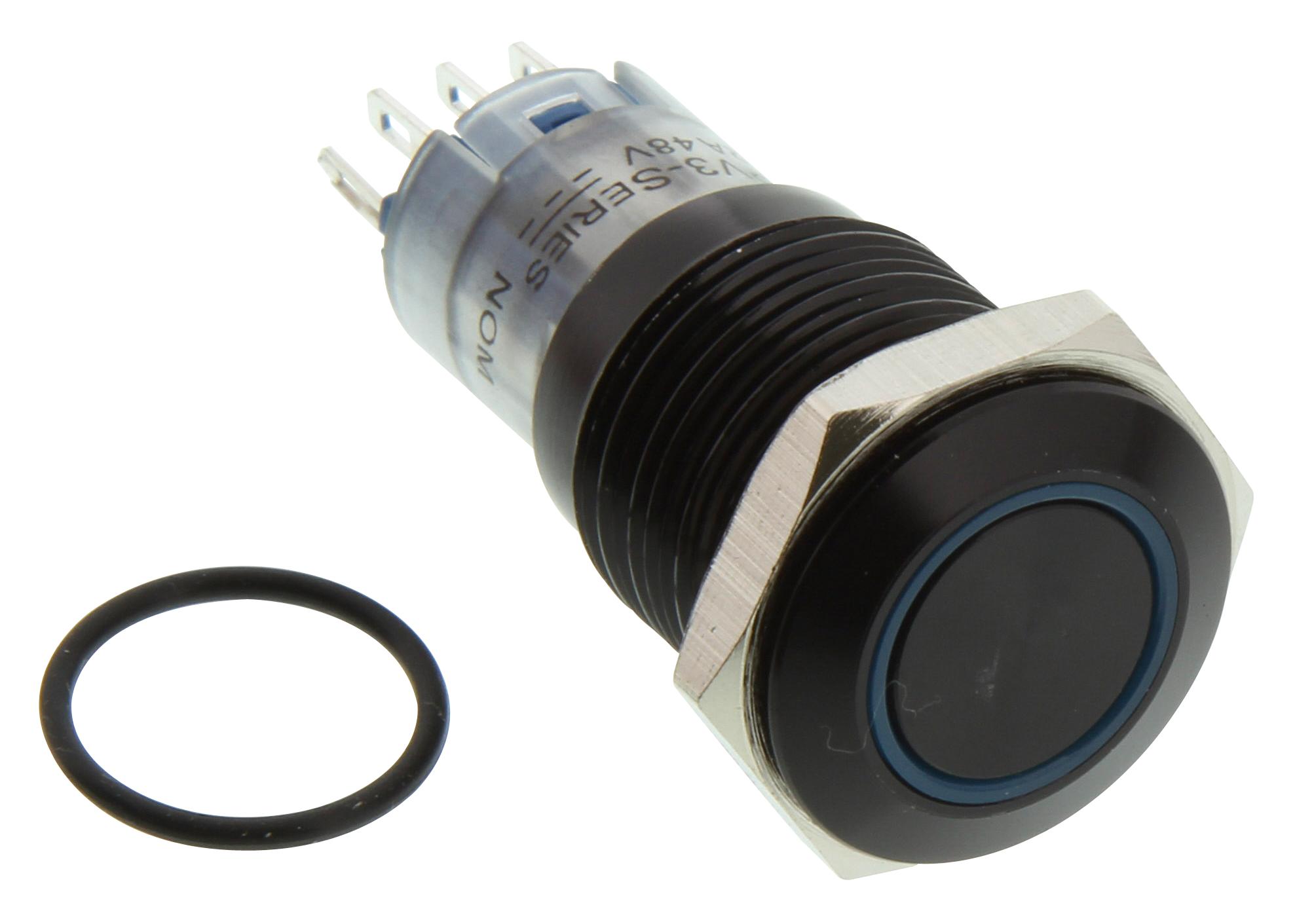

E-SWITCH PV3WF2B011G341 Anti-Vandal Switch
The PV3 Series anti-vandal switches are designed for secure, durable, and reliable panel control with options including dot and ring illumination, non-sealed and sealed configurations, and multiple actuator styles. Featuring a 16mm diameter panel cutout, the switches support SPST and DPDT contact arrangements with a mechanical life of 200,000 cycles and electrical life of 50,000 cycles. Suitable for various industrial applications, they provide leading-edge performance with IP40 and IP67 moisture protection options, and are easy to install with panel thickness compatibility of 1-8mm.
E-SWITCH PV3WF2B011G341 Anti-Vandal Switch Specifications:
- Panel Cutout: 16mm diameter
- Actuator Options: Dot, ring, concave, flat, high, guarded
- Illumination: Dot, ring, non-illuminated
- Contact Resistance: 50mΩ Max.
- Electrical Rating: 2A, 48VDC
- Mechanical Life: 200,000 Cycles
- Electrical Life: 50,000 Cycles
- Insulation Resistance: 1000MΩ Max.
- Operating/Storage Temperature: -20°C to 55°C
- Panel Thickness: 1-8mm
- Moisture Protection: IP40 (PV3, PV3S) & IP67 (PV3W, PV3SW)
- Travel Distance: 2.80mm
- Contact Arrangement: SPST & DPDT
- Actuation Force: 4 N
- Mounting Nut Torque: 0.6Nm
Buy the DOWOO Series PV3 Anti-Vandal Switch: PV3WF2B011G341
Enhance your control panels with the DOWOO Series PV3 anti-vandal switch, offering robust construction, multiple illumination and actuator options, and water resistance up to IP67. Perfect for industrial, security, and automation applications, these switches provide exceptional durability with a mechanical life of 200,000 cycles and IP-rated moisture protection. Easy to install in panel thicknesses from 1 to 8mm, ensuring versatile compatibility. Buy online now for quick delivery and superior performance in demanding environments.
Order your DOWOO Series PV3 anti-vandal switch today and ensure secure, reliable control with superior durability in harsh industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV3WF2B011G341?
You can click on the BUY or RFQ button to purchase PV3WF2B011G341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV3WF2B011G341?
You can download the PV3WF2B011G341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV3WF2B011G341?
E-SWITCH
