E-SWITCH PV3WF2H0SS341 Vandal-Proof Switch
The PV3 Series Anti-Vandal Switches are durable, illuminated pushbutton and navigation switches designed for industrial applications. Featuring a 16mm panel cutout, various actuator options, and optional illumination, these switches support both SPST and DPDT configurations. They are rated at 2A, 48VDC with a mechanical life of 200,000 cycles and an electrical life of 50,000 cycles. Their robust construction ensures reliable operation in harsh environments with IP40 and IP67 moisture protection options, suitable for control panels requiring vandal-resistant components.
E-SWITCH PV3WF2H0SS341 Vandal-Proof Switch Specifications:
- Panel Cutout: 16mm diameter
- Electrical Rating: 2A, 48VDC
- Mechanical Life: 200,000 cycles
- Electrical Life: 50,000 cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000MQ Max.
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.80mm
- Panel Thickness: 1-8mm
- Moisture Protection: IP40 (PV3, PV3S), IP67 (PV3W, PV3SW)
- Contact Arrangement: SPST & DPDT
- Actuation Force: 4 N
- Mounting Nut Torque: 0.6 Nm
- Body Dimensions: 16mm diameter, height varies with actuator and configuration
- Illumination: Dot and ring options, various voltage ratings (6V, 12V, 24V, 125V)
- Actuator Options: Flat, concave, high, guarded, various colors
- Material: Anodized Aluminum, Stainless Steel, Brass
- Ingress Protection: IP40 with optional IP67

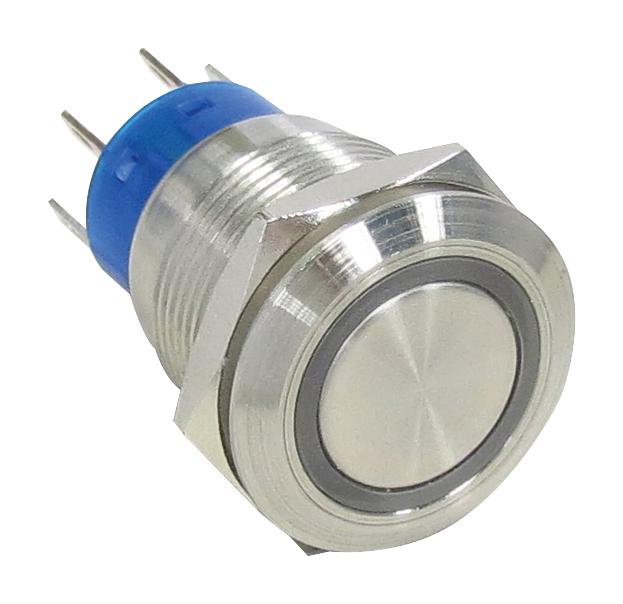

Buy the DINGEI Series PV3 Vandal-Proof Switch: PV3WF2H0SS341
Purchase the DINGEI PV3WF2H0SS341 vandal-proof switch online today and enhance your control panel's reliability. Featuring a sturdy design with IP67 moisture protection, multiple illumination and actuator options, and rated for 2A at 48VDC, this switch is perfect for industrial, security, and automation applications. Its rugged construction withstands harsh environments, providing long-lasting performance with up to 200,000 mechanical cycles. Order now to ensure your equipment operates securely and efficiently in demanding conditions.
Buy DINGEI PV3WF2H0SS341 vandal-proof switch now and experience unmatched durability and reliable illumination for harsh control environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV3WF2H0SS341?
You can click on the BUY or RFQ button to purchase PV3WF2H0SS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV3WF2H0SS341?
You can download the PV3WF2H0SS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV3WF2H0SS341?
E-SWITCH
