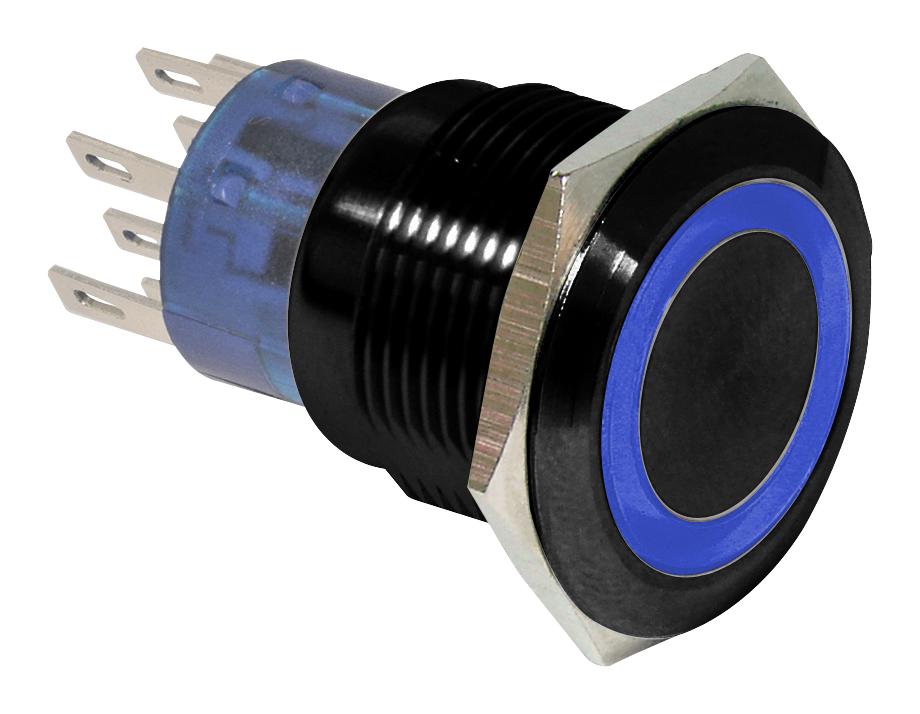

E-SWITCH PV4F23011344 Anti-Vandal Switch
The PV4 Series Anti-Vandal Switch offers robust, sealed operation with IP65 moisture protection, suitable for industrial environments. It features a 19mm panel cutout, multiple actuation options including pushbutton, rocker, rotary, and tactile switches, and optional RGB LED illumination with various symbols and graphic options. Designed for durability, it has an electrical rating of 2A at 24VDC, with contact resistance of 50mΩ, and can handle 50,000 operating cycles. Its sturdy construction makes it ideal for applications requiring vandal-resistant, reliable control interfaces.
E-SWITCH PV4F23011344 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Panel Thickness: 1-11mm
- Body Diameter: 19mm
- Moisture Protection: IP65
- Actuation Force: 4 N
- Travel: 2.50mm
- Body Material: Stainless Steel or Anodized Aluminum
- Mounting Nut Torque: 5-14Nm
- Contact Arrangement: SPDT, DPDT
- Lens/Graphic Options: Ring, Dot, Power Symbols, Laser Etched Graphics
- LED Colors: Red, Green, Blue, RGB (for specific functions)
Buy the Vandal Switch 23011344 – Reliable Control Switch for Industrial Applications
Order the PV4 Series Anti-Vandal Switch online today to ensure reliable, vandal-resistant operation in industrial environments. Featuring IP65 moisture protection, robust construction, multiple actuation options including pushbutton, rocker, rotary, tactile, and illuminated versions, this switch is designed to withstand harsh conditions. Its 19mm panel cutout, 2A at 24VDC rating, and high cycle life of 50,000 cycles make it ideal for control panels and machinery. Benefit from quick online purchase for fast, secure delivery and installation readiness.
Get PV4 Series Anti-Vandal Switch today—built for precision, durability, and vandal resistance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F23011344?
You can click on the BUY or RFQ button to purchase PV4F23011344 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F23011344?
You can download the PV4F23011344 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F23011344?
E-SWITCH
