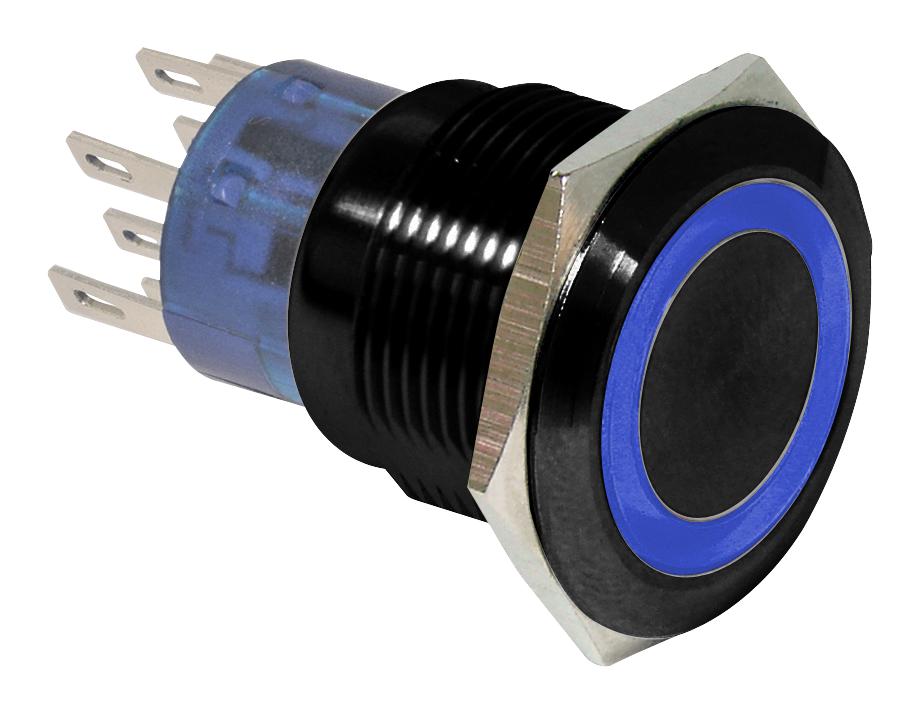

E-SWITCH PV4F230113R4 Anti-Vandal Switch
The PV4 Series Anti-Vandal Switch is a durable, IP65-rated pushbutton switch designed for rugged environments. Featuring a 19mm diameter panel cutout, it offers multiple illumination options including LED ring, dot, and power symbol graphic lighting. The switch is available with SPDT and DPDT contact arrangements, rated up to 2A at 24VDC. It supports a panel thickness of 1-11mm, with a panel mounting nut torque of 5-14Nm, making it suitable for industrial, security, and control applications requiring extended durability and moisture resistance.
E-SWITCH PV4F230113R4 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Panel Cutout Diameter: 19mm
- Body Material: Steel or Stainless Steel
- Actuator Travel: 2.50mm
- Moisture Protection: IP65
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Actuation Force: 4 N
- Lighting Options: LED ring, dot, power symbol
- Contact Arrangement: SPDT, DPDT
- Temperature Range: -20°C to 55°C
- Voltage Rating: 24VDC
- Rated Current: 2A
Buy the Brand Series Vandal Switch: PV4F230113R4
Discover the PV4 Series Anti-Vandal Switch, engineered for reliability in harsh environments. Featuring IP65-rated moisture resistance, multiple illumination options including LED ring and dot, and a sturdy 19mm panel cutout design. Ideal for industrial control panels, security systems, and automation setups, it offers a load capacity of 2A at 24VDC with a lifespan of 50,000 cycles. Easy to install with panel thickness support from 1 to 11mm, delivering durability, performance, and versatile illumination features that enhance operational safety and visibility.
Get PV4 Series Vandal Switch today—built for rugged environments with long-lasting durability and IP65 moisture protection.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F230113R4?
You can click on the BUY or RFQ button to purchase PV4F230113R4 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F230113R4?
You can download the PV4F230113R4 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F230113R4?
E-SWITCH
