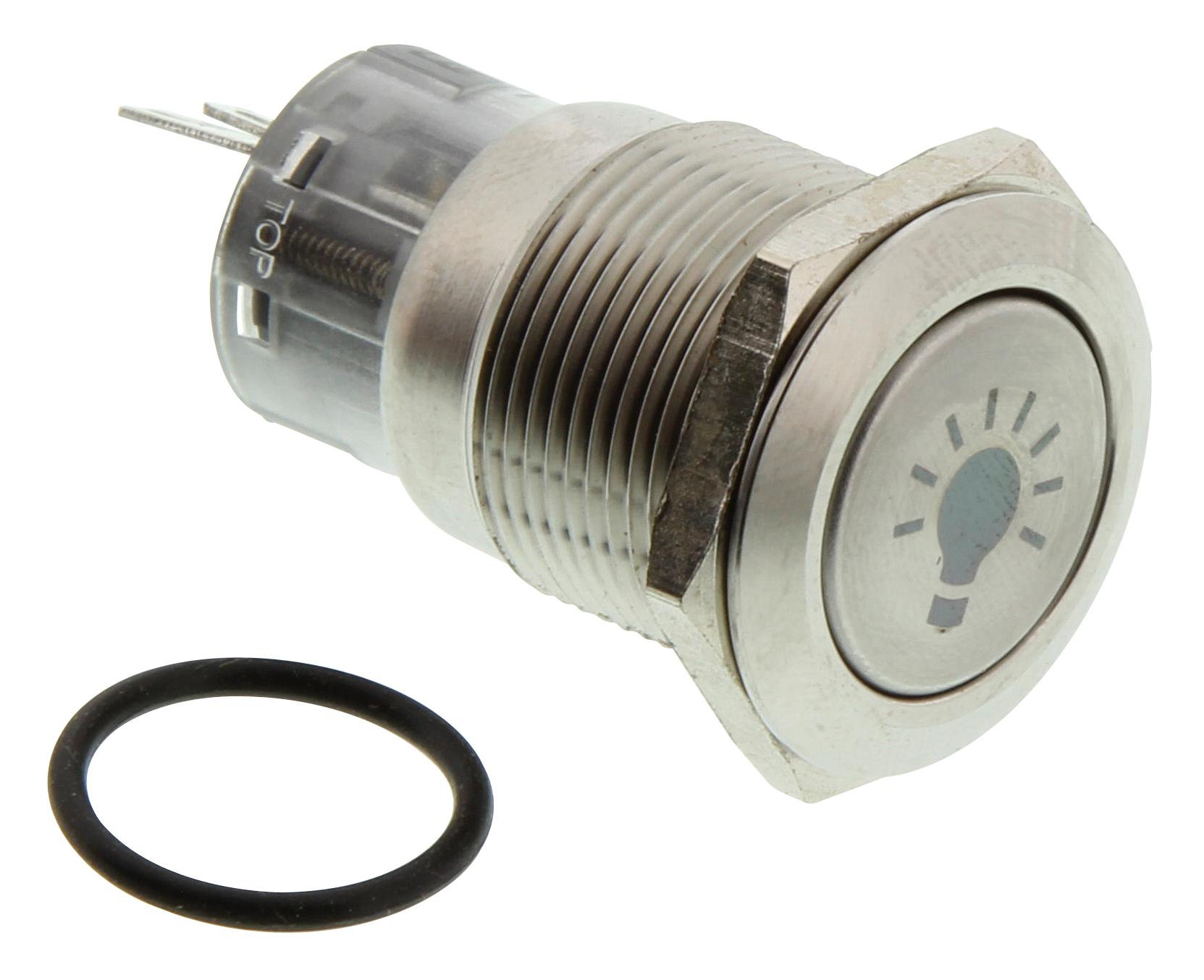

E-SWITCH PV4F230SSM05 Anti-Vandal Switch
The PV4 Series Anti-Vandal Switch is a durable, high-quality control device designed for industrial applications. It features a 19mm diameter panel cutout, IP65 moisture protection, and options for illumination including ring, dot, and power symbols. Available in SPDT and DPDT configurations, with a contact rating of 2A at 24VDC, it offers reliable performance with 50,000 cycles. The switch is suitable for harsh environments thanks to its vandal-resistant design, high operational and storage temperature range, and secure screw terminal connection. Ideal for automation, machinery, and control panels requiring robust switching solutions.
E-SWITCH PV4F230SSM05 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 2,000VAC
- Panel Cutout: 19mm diameter
- Moisture Protection: IP65
- Actuation Force: 4 N
- Travel: 2.50mm
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Options: Flat and high actuator styles
- Illumination: Ring and dot options, RGB LED available
- Electrical Contact Types: SPDT and DPDT
- Operating Temperature: -20°C to 55°C
- Storage Temperature: -20°C to 55°C
Buy the ACME PV4F230SSM05 – Reliable Anti-Vandal Switch for Industrial Applications
Enhance your control panels with the durable Anti-Vandal Switch from ACME. Designed for harsh industrial environments, it features IP65 protection, high reliability, and options for LED illumination. Easy to install, with a 19mm panel cutout, this switch offers SPDT and DPDT configurations, ensuring versatile control options. Its robust construction withstands extreme temperatures and mechanical stress, making it ideal for automation, machinery, and security systems. Order online today for quick delivery and seamless integration into your projects.
Buy ACME PV4F230SSM05 now and experience unmatched reliability and performance in demanding industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F230SSM05?
You can click on the BUY or RFQ button to purchase PV4F230SSM05 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F230SSM05?
You can download the PV4F230SSM05 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F230SSM05?
E-SWITCH
