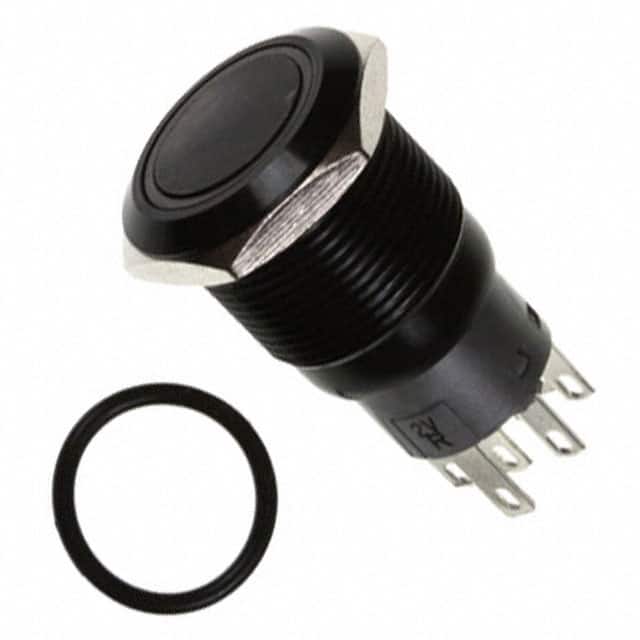

E-SWITCH PV4F2B0113R4 Illuminated Pushbutton Switch
The E-SWITCH PV4F2B011-3R4 is a robust, panel-mount illuminated pushbutton switch designed for a wide range of industrial and commercial applications. Featuring RGB illumination, this switch provides clear visual feedback and enhances user interface functionality. Constructed with a black anodized body and a durable design, it offers excellent resistance to environmental factors. With a 2A 24VDC rating, 50,000 make-and-break cycle electrical life, and IP67 ingress protection, the PV4F2B011-3R4 ensures reliable performance in harsh conditions. It includes hardware such as an O-ring and hexnut for secure installation.
E-SWITCH PV4F2B0113R4 Illuminated Pushbutton Switch Specifications:
- Contact Configuration: SPDT ON-(ON)
- Switch Function: 1-3 Positions
- Contact Material: Silver
- Rating: 2A 24VDC
- Electric Life: 50,000 Cycles
- Insulation Resistance: 1,000 MΩ Min
- Dielectric Strength: 2,000 VAC Min
- Contact Resistance: 50mΩ Max @ 1A 12VDC
- Operating Temperature: -25°C to 55°C
- Travel: 2.8mm
- Ingress Protection: IP67
- Lamp Voltage: 12V
- Panel Cutout: 15.80mm
- Body Height: 11.0mm
- Max Panel Thickness: 0.62 in
- Terminal Thread: M19x1.0
- General Tolerance: X.X = ±0.4, X.XX = ±0.25
