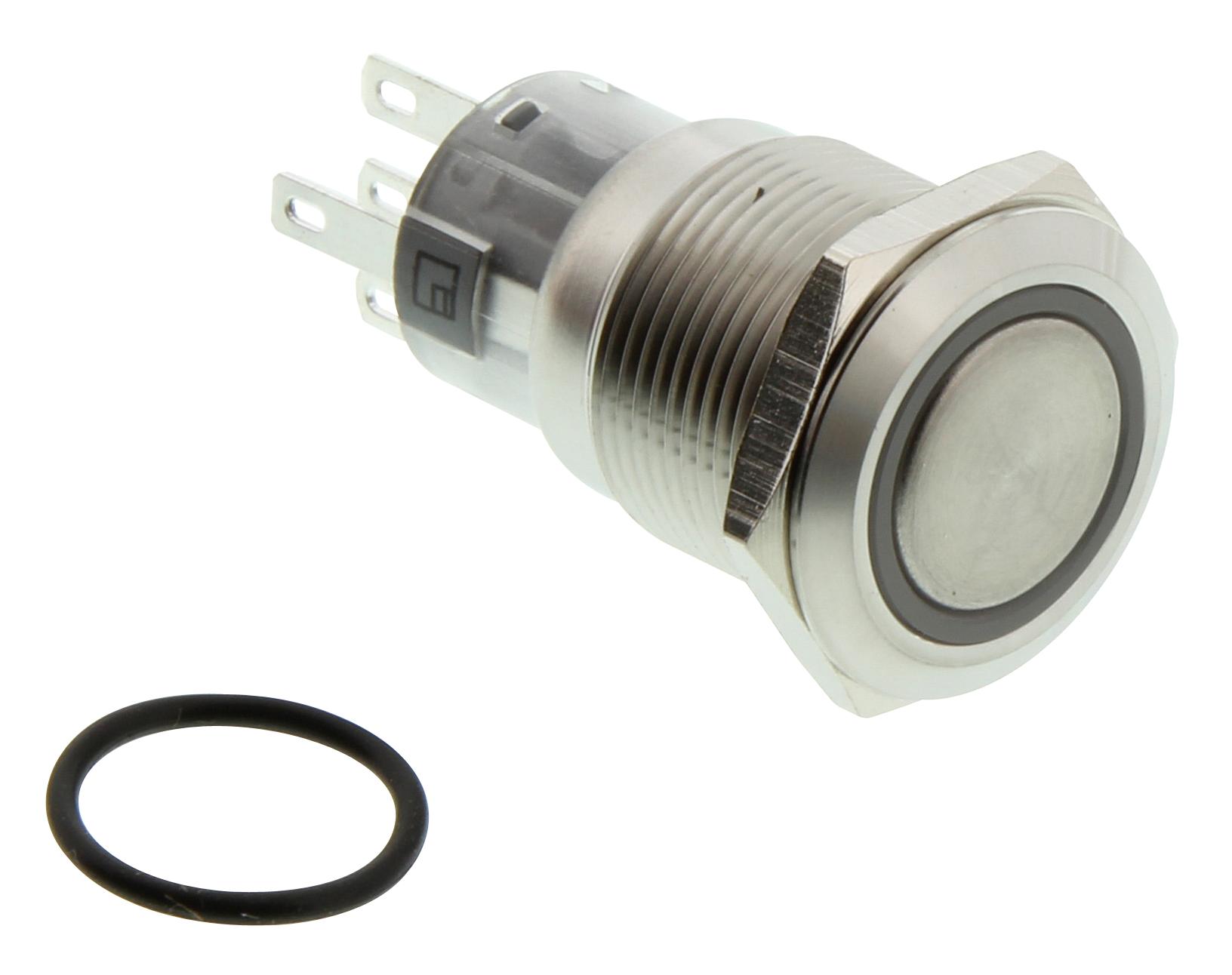

E-SWITCH PV4F2B0SS334 Anti-Vandal Switch
The PV4 series anti-vandal switch is a durable, IP65-rated pushbutton and keylock switch designed for industrial applications. It features a 19mm diameter panel cutout, RGB LED options with various illumination symbols, and multiple contact configurations including SPDT and DPDT. The switch provides reliable operation with a 2A, 24VDC electrical rating, a contact resistance of 50mΩ, and a dielectric strength of 2000VAC. Suitable for mounting on panels up to 11mm thick, it offers enhanced moisture protection and customizable graphic options for various control functions.
E-SWITCH PV4F2B0SS334 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Panel Cutout: 19mm diameter
- Moisture Protection: IP65
- Actuation Force: 4 N
- Travel: 2.50mm
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Operating Temperature: -20°C to 55°C
- Body Material: Stainless Steel
- Illumination: RGB LED, with various symbol options
- Contact Configuration: SPDT, DPDT
Buy the E-Switch Series PV4 Anti-Vandal Switch: PV4F2B0SS334
Purchase the robust E-Switch PV4 series anti-vandal switch online today and enjoy high reliability, IP65 moisture protection, customizable illumination options, and excellent electrical performance suitable for demanding industrial environments. Its versatile configurations, including SPDT and DPDT contact arrangements with RGB LED illumination, make it ideal for control panels, automation systems, and machinery. Easy to install with a 19mm panel cutout and panel thickness compatibility of 1-11mm, ensuring seamless integration across various applications for enhanced operational safety and durability.
Buy E-Switch PV4F2B0SS334 now and experience unmatched reliability and industrial-grade durable performance.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2B0SS334?
You can click on the BUY or RFQ button to purchase PV4F2B0SS334 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2B0SS334?
You can download the PV4F2B0SS334 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2B0SS334?
E-SWITCH
