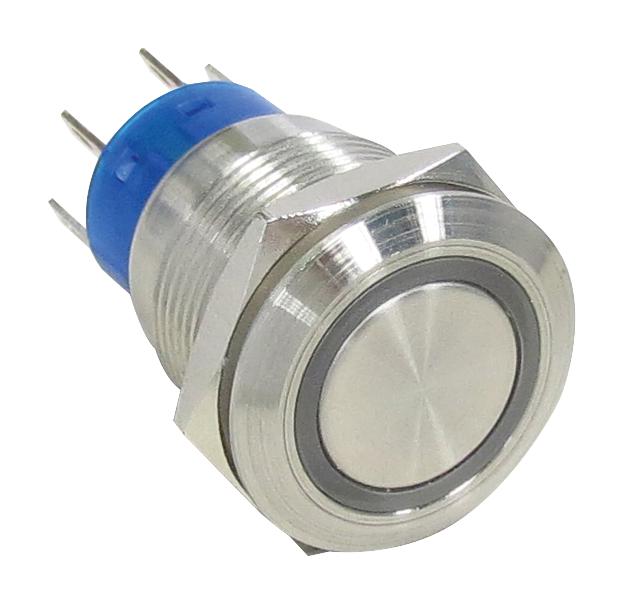

E-SWITCH PV4F2B0SS341 Anti-Vandal Switch
The PV4 Series Anti-Vandal Switch offers robust, high-quality switching solutions designed for industrial and harsh environments. Featuring IP65 moisture protection, various contact configurations including SPDT and DPDT, illumination options such as RGB LEDs, and panel cutout of 19mm, this switch is ideal for control panels requiring durability and visibility. Its electrical rating of 2A at 24VDC ensures reliable operation in demanding applications. Suitable for panel thickness of 1-11mm, with high cycle lifespan and diverse actuation styles, making it versatile for automation, machinery, and access control systems.
E-SWITCH PV4F2B0SS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000 VAC
- Panel Cutout: 19mm diameter
- Moisture Protection: IP65
- Actuator Travel: 2.50mm
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14 Nm
- Body Material: Stainless Steel
- Finish: Silver or Laser Etched Graphic Options
- LED Colors: Red, Green, Blue or RGB
- Operation Temperature: -20°C to 55°C
- Contact Arrangement: SPDT, DPDT
Buy the E-Switch Series PV4 Anti-Vandal Switch: PV4F2B0SS341
Order the E-Switch PV4 Series Anti-Vandal Switch online today to enhance your control panels with a durable, IP65 rated switch featuring versatile illumination options. With robust construction, high cycle life, and reliable contact configurations, this switch is suitable for industrial automation, machinery, and security systems. Its 19mm panel cutout and IP65 moisture protection ensure easy installation and protection against harsh environmental factors. Elevate your application’s reliability and visibility by purchasing this high-quality switch directly from our trusted online store now.
Buy E-Switch PV4F2B0SS341 anti-vandal switch now and experience unmatched durability, high illumination options, and reliable control in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2B0SS341?
You can click on the BUY or RFQ button to purchase PV4F2B0SS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2B0SS341?
You can download the PV4F2B0SS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2B0SS341?
E-SWITCH
