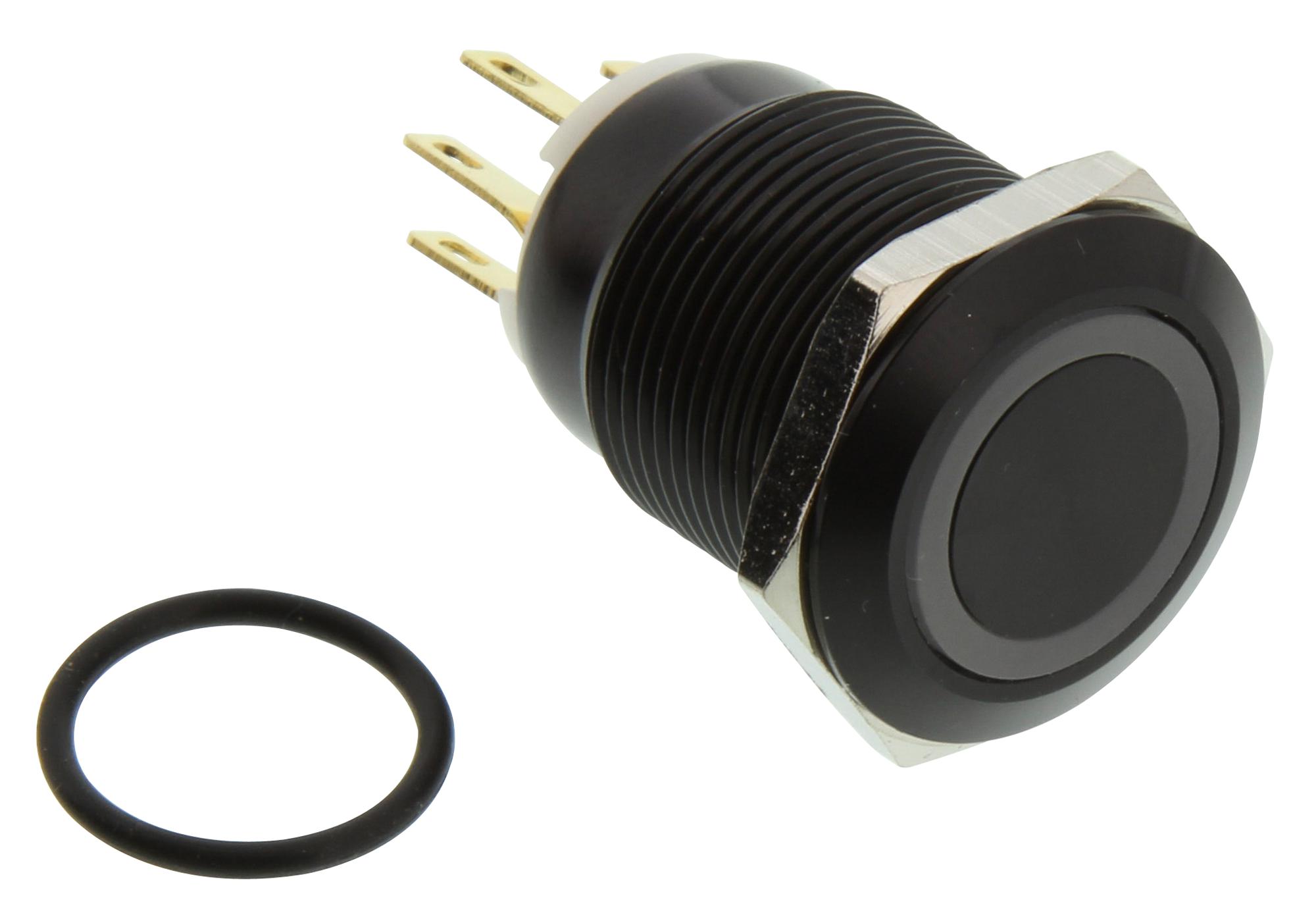

E-SWITCH PV4F2Y011314 Anti-Vandal Switch
The PV4 series anti-vandal switch features a durable design suitable for industrial and control panel applications. It offers various actuation options, including flat and high actuators, with illumination options like ring, dot, or power symbols. Rated at 2A and 24VDC, it includes multiple switching configurations such as SPDT and DPDT. Its IP65 rating ensures moisture protection, with a 19mm panel cutout and easy mounting. Ideal for industrial environments requiring reliable, illuminated, and vandal-resistant switches.
E-SWITCH PV4F2Y011314 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Strength: 2,000VAC
- Panel Cutout: 19mm diameter
- Moisture Protection: IP65
- Actuator Travel: 2.50mm
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Operating/Storage Temperature: -20°C to 55°C
- Body Options: Flat or High Actuator
- Illumination: Ring, Dot, or Power Symbol Compatible
- Contact Configuration: SPDT, DPDT
- Actuation Force: 4 N
- Power Voltage Options: 6V, 12V, 24V, 125V, 250V
- Material: Stainless Steel, Steel, Anodized Aluminum
- Certification: UL Listed, CSA Certified
Buy the Vistion PV4 – Reliable Anti-Vandal Switch for Industrial Applications
Purchase the Vistion PV4 series anti-vandal switch online today and benefit from a highly durable, moisture-resistant switch rated IP65, suitable for industrial, control, and automation applications. This switch offers multiple actuation options, including flat and high actuators, with illumination features like ring, dot, or power symbols for clear visibility. Its design ensures easy installation with a 19mm panel cutout and reliable performance rated at 2A and 24VDC. Ensure your machinery or control panels operate safely and efficiently with this robust, vandal-resistant switch available to order online now.
Order your Vistion PV4 series anti-vandal switch today and enhance your control panels with durable, illuminated, and vandal-resistant switch solutions.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2Y011314?
You can click on the BUY or RFQ button to purchase PV4F2Y011314 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2Y011314?
You can download the PV4F2Y011314 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2Y011314?
E-SWITCH
