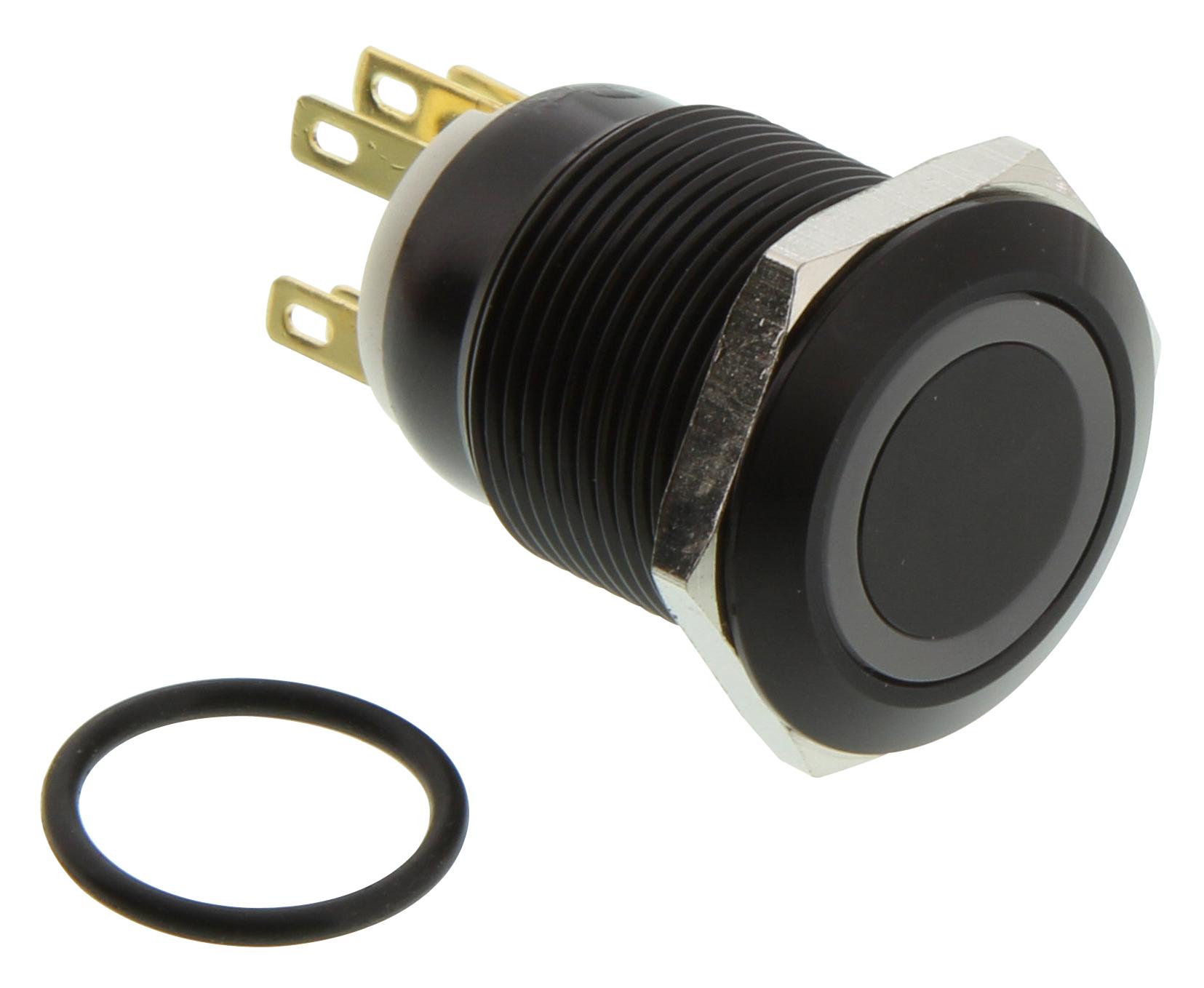

E-SWITCH PV4F2Y011345 Anti-Vandal Switch
The PV4 Series anti-vandal switch features a robust design with a 19mm diameter panel cutout, IP65-rated moisture protection, and options for RGB LED illumination with dot, ring, or power symbols. It supports SPDT and DPDT contact arrangements, operates within -20°C to 55°C, and has a rated current of 2A at 24VDC. Suitable for demanding industrial and control applications, the switches include keylock, navigation, pushbutton, rocker, rotary, slide, snap action, tactile, and toggle types, ensuring versatile installation and reliable performance.
E-SWITCH PV4F2Y011345 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 2,000VAC
- Panel Cutout Diameter: 19mm
- Operating Temperature: -20°C to 55°C
- Moisture Protection: IP65
- Actuator Travel: 2.50mm
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Options: Flat, high, screw types
- Illumination: RGB, ring, power symbol, laser etched
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4N
- Body Material: Steel, stainless steel
- Finish: Silver, anodized options
- Connector Terminals: Solder, screw
- Lens Options: Flat, high actuator, 4.0mm actuator
Buy the Buy Brand PV4 Anti-Vandal Switch Part Number PV4F2Y011345 Online
Order the PV4 series anti-vandal switch online today to ensure reliable performance with IP65 moisture protection, RGB LED options, and versatile contact configurations. Designed for demanding industrial environments, this switch features a robust steel body, various actuator styles including flat and high options, and easy solder or screw terminal connections. With a panel cutout of 19mm and an operating temperature range of -20°C to 55°C, it guarantees durability and flexibility across automation, control, and surveillance applications. Purchase now for fast delivery and superior quality.
Buy Brand PV4 anti-vandal switch now and experience unmatched reliability and industrial-grade durability for your control panels.
Frequently Asked Questions
Where can I buy E-SWITCH PV4F2Y011345?
You can click on the BUY or RFQ button to purchase PV4F2Y011345 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV4F2Y011345?
You can download the PV4F2Y011345 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV4F2Y011345?
E-SWITCH
