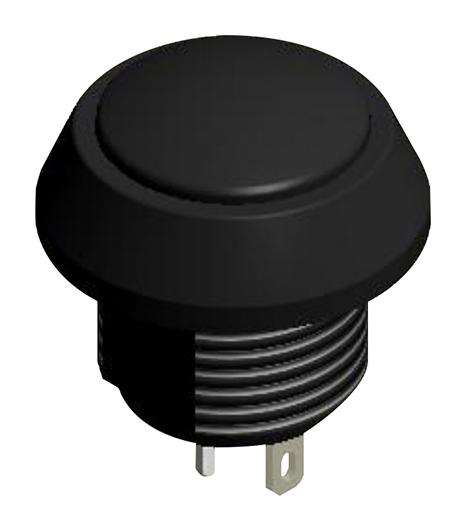

E-SWITCH PV5S24011 Anti-Vandal Switch
The PV5 Series Anti-Vandal Switch is a durable, IP65-rated switch designed for industrial environments. Featuring a mechanical life of 1,000,000 cycles and an electrical life of 200,000 cycles, it offers reliable performance with a contact resistance of 50mΩ max. The switch operates within -25°C to 55°C, has a travel of 2.50mm, and is suitable for panel thicknesses of 1-5mm. It offers various actuator finish options, solder or screw terminations, and a sealed body ideal for vandal-resistant applications.
E-SWITCH PV5S24011 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-(On)
- Actuation Force: 5N
- Panel Thickness: 1-5mm
- Mounting Nut Torque: 0.3Nm
Buy the Generic Switch Brand PV5 – Reliable Vandal-Resistant Switch for Industrial Applications
Discover the PV5 Series Anti-Vandal Switch—engineered for durability and reliability in harsh industrial settings. With IP65 moisture protection and a lifespan of over a million cycles, this switch ensures consistent performance. It suits panel thicknesses from 1 to 5mm and offers multiple actuator and termination options. Whether for control panels, machinery, or outdoor equipment, this vandal-resistant switch provides a secure, robust solution designed to withstand tampering and environmental challenges. Purchase online now for fast, secure delivery and reliable operation.
Buy PV5 Series Anti-Vandal Switch now and experience unmatched durability, IP65 protection, and reliable switching performance for industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV5S24011?
You can click on the BUY or RFQ button to purchase PV5S24011 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV5S24011?
You can download the PV5S24011 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV5S24011?
E-SWITCH
