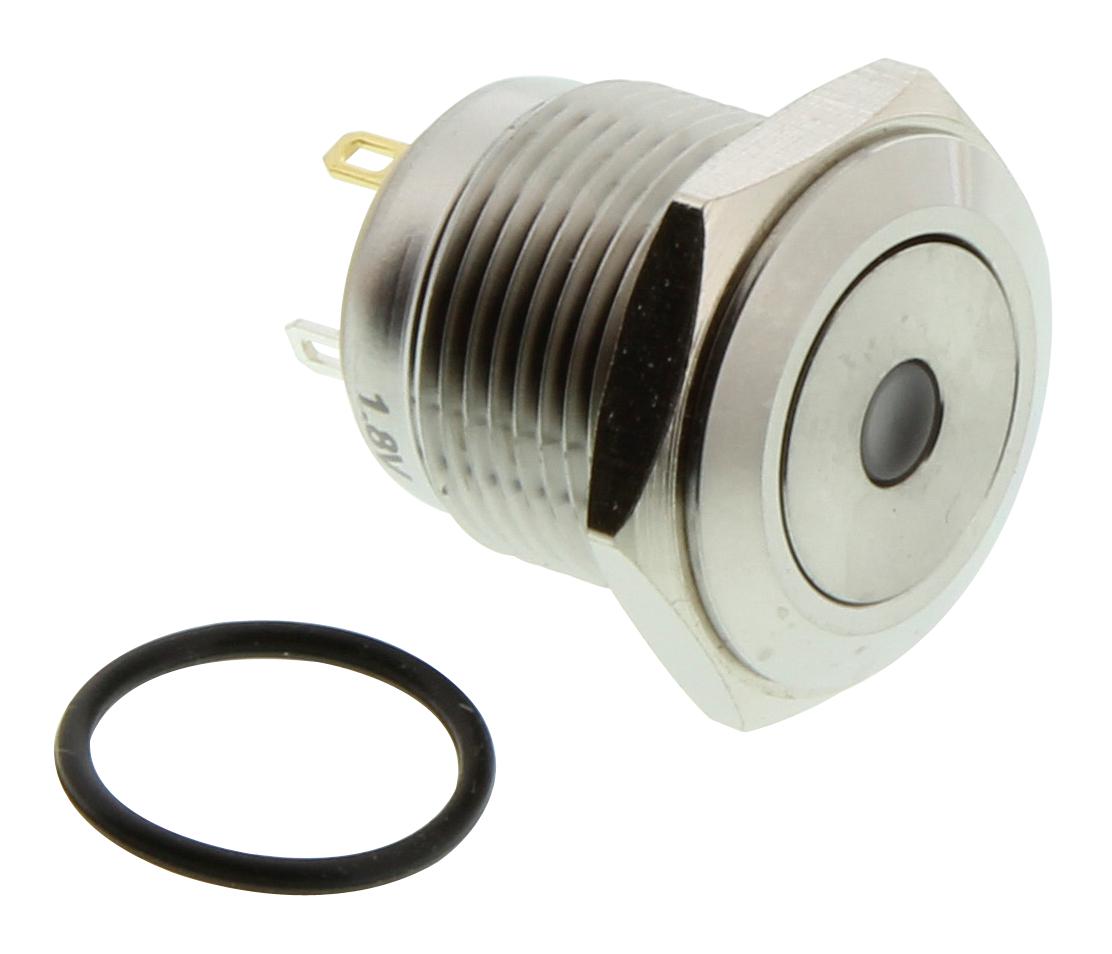

E-SWITCH PV6F240SS221 Vandal-Resistant Switch
The PV6 Series Anti-Vandal Switch offers robust and reliable operation with a 2A, 48VDC electrical rating, IP65 moisture protection, and a durable construction suitable for harsh environments. It features a 16mm panel cutout, various illumination options including dot and ring, and multiple actuator configurations for flexible installation. The switch supports a mechanical life of 1,000,000 cycles and an electrical life of 50,000 cycles, making it ideal for industrial and security applications requiring vandal-resistant components. Its sturdy design ensures long-lasting performance in demanding settings.
E-SWITCH PV6F240SS221 Vandal-Resistant Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MO Min.
- Panel Thickness: 1-10mm
- Body Diameter: 18.00 mm
- Illumination Options: Dot, Ring, RGB available
- IP65 moisture protection
- Actuation Force: 400 gf
- Travel: 1.50mm
- Mounting Nut Torque: 5-14Nm
- Operating Temperature: -20°C to 55°C
Buy the Winer PV6F240SS221 – Reliable Vandal-Resistant Switch for Industrial Applications
Purchase the Winer PV6F240SS221 vandal-proof switch online today and ensure secure, long-lasting operation in industrial or security settings. Featuring IP65 rating, various illumination options, and a robust construction, this switch is perfect for demanding environments. With a panel cutout of 16mm and high cycle durability, it provides reliable performance and easy installation. Order now to equip your equipment with a dependable vandal-resistant switch that combines durability, flexibility, and excellent operational life for industrial applications.
Get Winer PV6F240SS221 today—built for durability, with multiple illumination and actuation options for demanding industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV6F240SS221?
You can click on the BUY or RFQ button to purchase PV6F240SS221 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV6F240SS221?
You can download the PV6F240SS221 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV6F240SS221?
E-SWITCH
