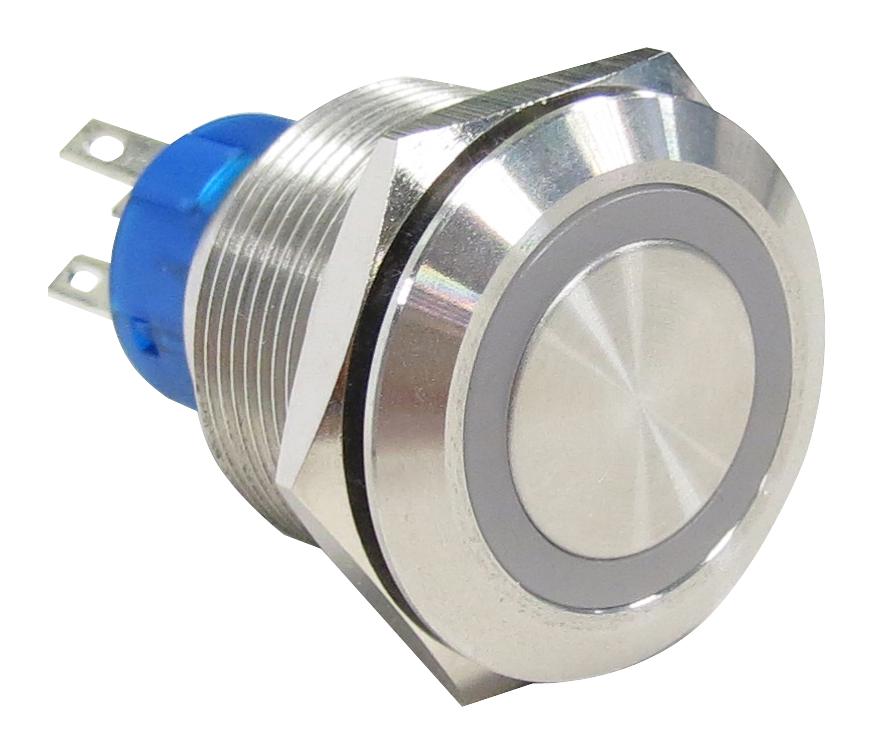

E-SWITCH PV7F2T0SS311 Anti-Vandal Switch
The PV7 Series Anti-Vandal Switch is a robust, IP65-rated switch designed for industrial applications requiring high durability and security. It features a 22mm diameter panel cutout, with options for non-illuminated or illuminated activations, including RGB LED variants. The switch offers SPDT contact arrangement, electrical ratings of 2A at 48VDC, a mechanical life of 50,000 cycles, and multiple function options such as power symbols or custom graphics. Its rugged construction makes it suitable for harsh environments, ensuring reliable switch operations in vandal-prone areas.
E-SWITCH PV7F2T0SS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Panel Cutout: 22mm diameter
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50m Max
- Insulation Resistance: 1000 MO Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Moisture Protection: IP65
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.20mm
- Panel Thickness: 1-8mm for Y Function, 1-12mm for T Function
- Mounting Nut Torque: 5-14Nm
- Actuation Force: 4 N
- Contact Arrangement: SPDT
- Body Material: Steel or Anodized Aluminum
- Illumination: Dot, ring, or power symbol, RGB LED options available
- Termination: Solder terminals
Buy the Brand Series Anti-Vandal Switch: PV7F2T0SS311
Purchase the PV7 Series Anti-Vandal Switch online today to ensure reliable and secure control in rugged industrial settings. This switch features a durable IP65 rating, 2A at 48VDC electrical capacity, and offers various illumination options including RGB LED. Its robust construction is designed to withstand harsh environments and vandal exposure, making it ideal for security, automation, and control panels. Buy now to enjoy swift delivery and comprehensive support for your critical applications.
Get Brand PV7F2T0SS311 today—built for durability and vandal resistance in industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PV7F2T0SS311?
You can click on the BUY or RFQ button to purchase PV7F2T0SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV7F2T0SS311?
You can download the PV7F2T0SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV7F2T0SS311?
E-SWITCH
