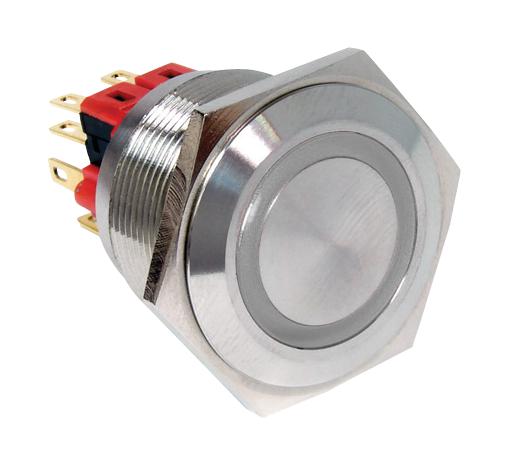

E-SWITCH PV8F2Y0SS345 Anti-Vandal Switch
The PV8 Series Anti-Vandal Switch offers robust and reliable performance with a 25mm diameter panel cutout, IP65 moisture protection, and multiple illumination options including LED ring and symbol illumination. Designed for industrial environments, it features SPDT and DPDT contact arrangements, with an electrical rating of 2A at 48VDC and a lifespan of 50,000 cycles. Suitable for various control and automation applications, this switch supports both maintained and momentary functions, with environmental resilience from -20°C to 55°C, making it ideal for demanding operational conditions.
E-SWITCH PV8F2Y0SS345 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min @ 500VDC
- Dielectric Strength: 2,000VAC
- Panel Cutout: 25mm diameter
- Moisture Protection: IP65
- Operating/Storage Temperature: -20°C to 55°C
- Actuation Force: 6.5 N
- Panel Thickness: 1-10mm (Momentary), 3-12mm (Maintained)
- Body Material: Anodized Aluminum
- Mounting Nut Torque: 5-14Nm
- Illumination: LED options with Dot, Ring, or Power symbol
- Contact Arrangement: SPDT & DPDT
- Travel: 2.0mm
- Body Diameter: 25mm
Buy the Vandal Proof Switch – Reliable Industrial Control Switch for Automation Applications
Purchase the PV8 Series Anti-Vandal Switch online today to ensure your control panels are protected and reliable. Featuring IP65 moisture resistance, 25mm panel cutout, LED illumination, and SPDT/DPDT configurations, this switch delivers durability for demanding environments. Its robust design withstands environmental challenges with an operating temperature range of -20°C to 55°C, providing long-term operational stability. Whether for automation, security, or control systems, order now and experience effortless installation combined with dependable performance in industrial settings.
Order your PV8 Series Anti-Vandal Switch today and enhance your industrial projects with dependable control and illumination solutions.
Frequently Asked Questions
Where can I buy E-SWITCH PV8F2Y0SS345?
You can click on the BUY or RFQ button to purchase PV8F2Y0SS345 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV8F2Y0SS345?
You can download the PV8F2Y0SS345 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV8F2Y0SS345?
E-SWITCH
