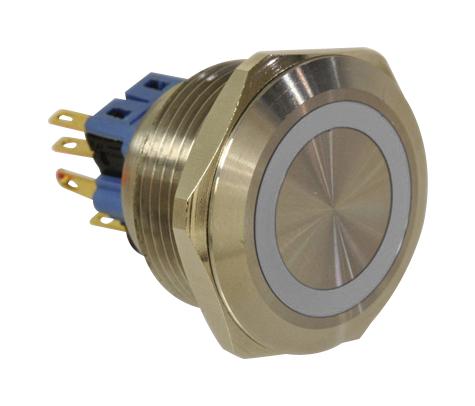

E-SWITCH PV9F2U0SS341 Anti-Vandal Switch
The PV9 Series Anti-Vandal Switch offers durable construction with IP65 moisture protection, suitable for industrial and electronic control applications. It features a 28mm panel cutout, a travel distance of 2.8mm, and various illumination options including dot and ring. The switch supports SPDT or DPDT contact arrangements, with a mechanical life of 1,000,000 cycles and electrical rating of 2A at 48VDC. Its rugged body options include nickel-plated or stainless steel, making it an ideal choice for harsh environments requiring reliable and vandal-resistant switching.
E-SWITCH PV9F2U0SS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 48VDC
- Mechanical Life: 1,000,000 Cycles
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min. @ 500VDC
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT or DPDT
- Actuation Force: 660 gf
- Panel Thickness: 1-10mm
- Body Finish Options: Nickel Plated or Stainless Steel
- Button Diameter: 28mm
- Thread Size: M28 x 1.5
- Terminal Options: Solder, Screw
- Illumination Voltage: 3-6V, 4-12V, 5-24V, 6-125V, 7-250V
Buy the Buy Vandalproof Switch Part Number PV9F2U0SS341 Online
Order the anti-vandal switch PV9F2U0SS341 online today to ensure reliable, rugged performance for industrial control and automation projects. This switch boasts a 28mm diameter, IP65 moisture protection, and supports SPDT or DPDT contact arrangements, perfect for demanding environments. Its durable body options include nickel-plated or stainless steel, with various illumination configurations including dot and ring options. With a travel of 2.8mm and a mechanical life of 1,000,000 cycles, this switch guarantees long-lasting operation. Buy online now for fast delivery and secure checkout.
Buy Vandalproof Switch PV9F2U0SS341 now and experience unmatched reliability and performance in harsh environments with multiple illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH PV9F2U0SS341?
You can click on the BUY or RFQ button to purchase PV9F2U0SS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PV9F2U0SS341?
You can download the PV9F2U0SS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PV9F2U0SS341?
E-SWITCH
