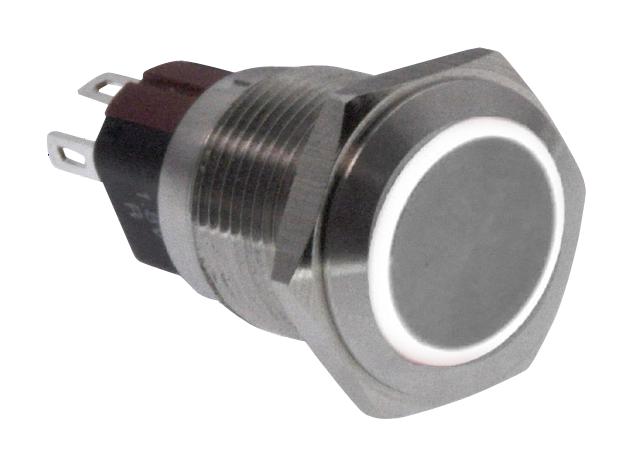

E-SWITCH PVA3F230SS3R1 Anti-Vandal Switch
The PVA3 Series anti-vandal switch features a 16mm panel cutout, ring illumination with multiple LED color options, and IP65 rated moisture protection. It offers a SPDT contact arrangement, operating temperature range from -25°C to 55°C, and an actuation force of 1.7N. Designed for robust applications, it supports a mechanical life of 50,000 cycles and an electrical rating of 2A at 36VDC. Suitable for control panels requiring durable and reliable switches with enhanced visibility and IP65 protection.
E-SWITCH PVA3F230SS3R1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1000 MΩ Min. @ 500VDC
- Dielectric Strength: 1,500VAC
- Operating Temperature: -25°C to 55°C
- Travel: 3.0mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT
- Actuation Force: 1.7N
- Panel Thickness: 1-8mm
- Mounting Nut Torque: 5-14Nm
- LED Voltage/Color Options: 1.8V @ 20mA for Red, Yellow, Orange; 2.8V @ 20mA for Blue, Green, White
- Lens Style: Ring illumination with optional LED colors
- Actuator Series: Flat (F), High (H)
- Body Finish Options: Nickel, Stainless Steel, Black Anodized
- Terminal Options: Solder
- Switch Function: Momentary or Latching, ON-ON, ON-OFF
- Mounting: M16 x 1.0 thread
- Panel Cutout: 16mm, recommended panel thickness 1-8mm
Buy the Buy Brand PVA3 Series Anti-Vandal Switch Part Number PVA3F230SS3R1 Online
Purchase the PVA3 Series anti-vandal switch online today to benefit from its robust construction, IP65 moisture protection, and bright LED illumination. Perfect for industrial control panels, this switch supports multiple LED colors, offers a compact 16mm panel cutout, and provides reliable SPDT switching with a 50,000 cycle lifespan. Secure your control systems with this durable, easy-to-install switch that ensures long-term performance and visibility in demanding environments.
Buy Brand PVA3F230SS3R1 now and experience unmatched reliability and performance with our durable and IP65 rated anti-vandal switch.
Frequently Asked Questions
Where can I buy E-SWITCH PVA3F230SS3R1?
You can click on the BUY or RFQ button to purchase PVA3F230SS3R1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA3F230SS3R1?
You can download the PVA3F230SS3R1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA3F230SS3R1?
E-SWITCH
