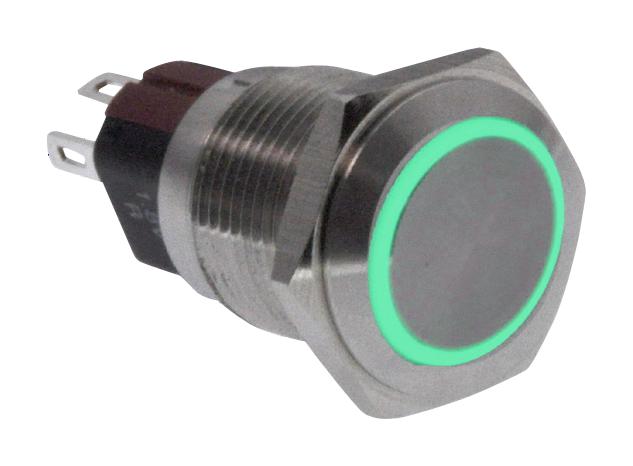

E-SWITCH PVA3H230SS331 Anti-Vandal Switch
The PVA3 series anti-vandal switch features a durable IP65 rated design suitable for industrial environments and outdoor applications. It includes ring illumination with multiple LED color options, a panel cutout of 16mm, and a contact arrangement of SPDT. The switch supports operation within -25°C to 55°C and has a mechanical life of 50,000 cycles. Its robust construction includes stainless steel or nickel actuators, and it offers various terminal options such as solder. It is ideal for applications requiring reliable actuation and illumination in demanding conditions.
E-SWITCH PVA3H230SS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min. @ 500VDC
- Dielectric Strength: 1,500VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 3.0mm
- Panel Cutout: 16mm
- Panel Thickness: 1-8mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT
- Actuation Force: 1.7N
- Mounting Nut Torque: 5-14Nm
- Finish Options: Nickel or Stainless Steel
- Actuator Series: Flat or High
- LED Voltage/Colors: 1.8V @ 20mA for Red, Yellow, Orange; 2.8V @ 20mA for Blue, Green, White
- LED Illumination Ring: Yes
- Body Material: Anodized Aluminum or Zinc
- Terminal Options: Solder terminals available
Buy the Brand PVA3 – Reliable Anti-Vandal Switch for Industrial Applications
Purchase the PVA3 series anti-vandal switch online today to benefit from its IP65 rated protection, multiple LED color options, and robust construction. Ideal for industrial, outdoor, and harsh environments, this switch ensures reliable operation with a mechanical life of 50,000 cycles. Its easy installation with a 16mm panel cutout, combined with momentary or latching functions, makes it versatile. Order now for fast delivery and enhance your control systems with durable, illuminated switches built for demanding applications.
Buy PVA3 anti-vandal switch now and experience superior durability, illumination options, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH PVA3H230SS331?
You can click on the BUY or RFQ button to purchase PVA3H230SS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA3H230SS331?
You can download the PVA3H230SS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA3H230SS331?
E-SWITCH
