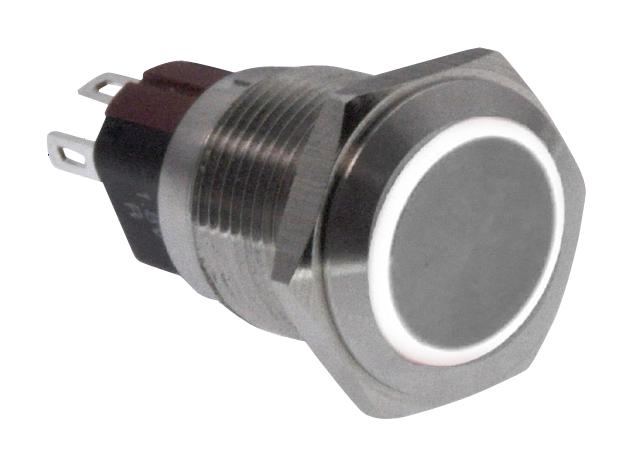

E-SWITCH PVA3H2B0SS3R1 Anti-Vandal Switch
The PVA3 Series Anti-Vandal Switch features high durability with an IP65 rating, illuminated ring options in multiple LED colors, and a 16mm panel cutout. It supports various actuation and body finish options, with a mechanical life of 50,000 cycles and electrical ratings of 2A at 36VDC. Suitable for industrial, control, and automation environments, this switch offers a robust design with illumination, keylock options, and a contact resistance of 50mΩ, ensuring reliable operation in harsh conditions and easy maintenance.
E-SWITCH PVA3H2B0SS3R1 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC
- Mechanical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min. @ 500VDC
- Dielectric Strength: 1,500VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 3.0mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT
- Actuation Force: 1.7N
- Panel Thickness: 1-8mm
- Mounting Nut Torque: 5-14Nm
Buy the Vandal Series Anti-Vandal Switch: PVA3H2B0SS3R1
Experience the reliable performance of the PVA3 Series Anti-Vandal Switch designed for demanding industrial and control applications. Its IP65 rated construction ensures durability against dust and water, while illumination options enhance visibility in low-light environments. The switch features a 16mm panel cutout, multiple LED color configurations, and a mechanical life of 50,000 cycles. Perfect for automation, machinery, and safety systems, this switch guarantees long-term operation even in harsh conditions, offering ease of installation and versatile mounting options.
Get PVA3H2B0SS3R1 today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy E-SWITCH PVA3H2B0SS3R1?
You can click on the BUY or RFQ button to purchase PVA3H2B0SS3R1 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA3H2B0SS3R1?
You can download the PVA3H2B0SS3R1 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA3H2B0SS3R1?
E-SWITCH
