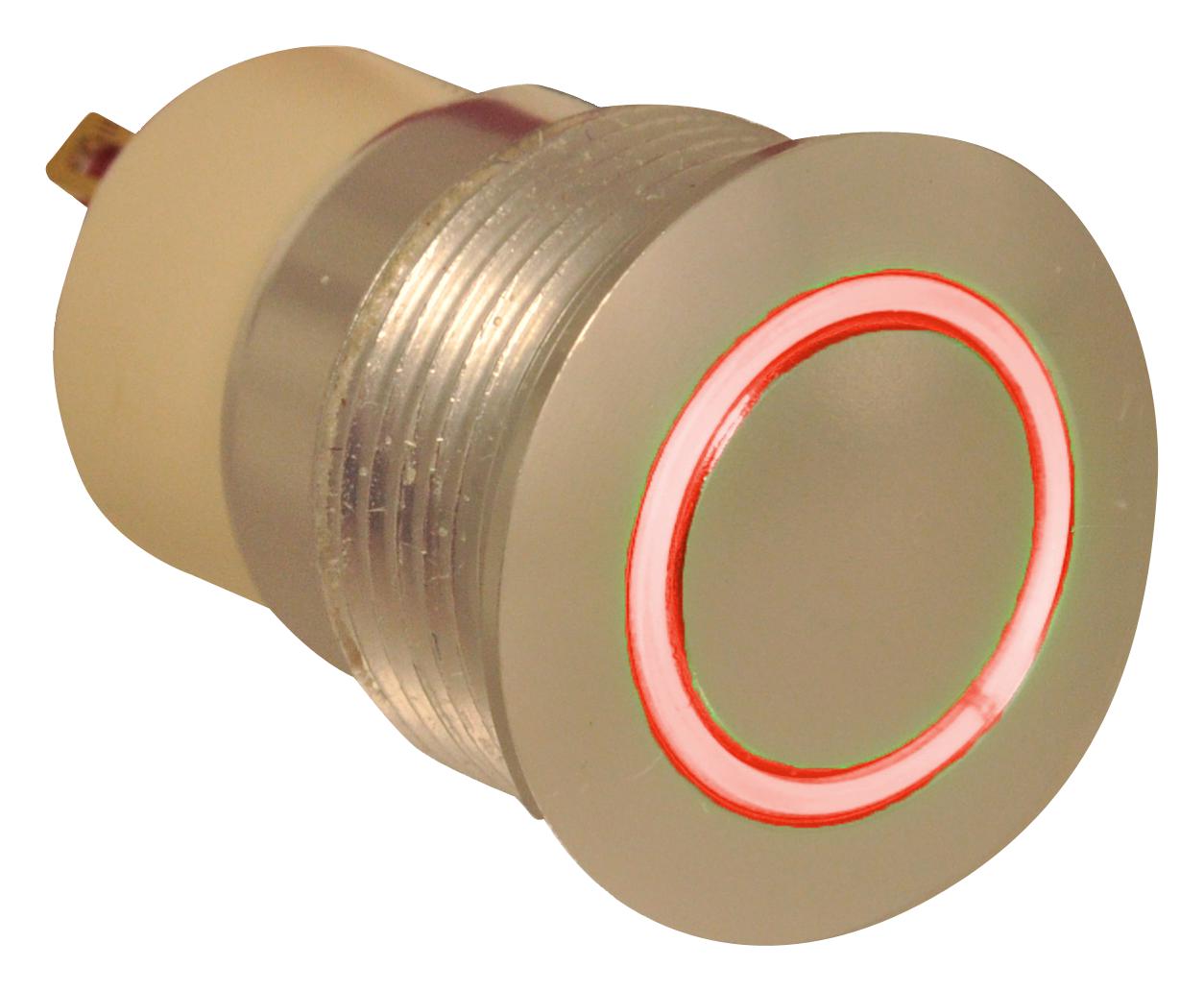

E-SWITCH PVA6LRE21211 Anti-Vandal Switch
The PVA6LRE21211 series is a durable, anti-vandal switch designed for secure and reliable operation in demanding environments. Featuring a 16mm diameter panel cutout, IP67 rated moisture protection, and a mechanical life of 1,000,000 cycles, these switches support SPST contact configuration with off-on, latching functionality. Equipped with LED illumination options in various colors, solder lug or wire lead terminations, and an operating temperature range of -20°C to 70°C, they are ideal for industrial control, security, and automation applications, offering longevity and resistance to vandalism.
E-SWITCH PVA6LRE21211 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC PVAG
- Mechanical Cycles: 1,000,000 (PVAG6L), 100,000 (PVAGL)
- Panel Cutout: 16mm diameter
- Contact Resistance: 50mΩ Max. Initial
- Insulation Resistance: 1,000 MO @ 500VDC
- Dielectric Strength: 2,000V
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 2.0mm (PVAGL 2.3mm)
- Moisture Protection: IP67 rated
- Contact Arrangement: SPST
- Actuation Force: 460 gf
- LED Colors: White, Red, Green, Blue, Yellow, Red/Green bi-color
- Termination: Solder lug or wire leads (500mm long)
- Housing Material: Anodized aluminum, stainless steel
- Bezel Shape: Rounded
- Dimensions: Bezel diameter approx. 18mm, mounting hole 16mm
- Thread: M16 x 1.0
- Panel Thickness: 1-8mm
Buy the Buy E-Switch PVAG 21211 Part Number PVA6LRE21211 Online
Enhance your industrial control systems with the high-quality E-Switch anti-vandal switch. Featuring exceptional durability, IP67 waterproof rating, and a robust build, this switch includes LED illumination options in multiple colors for visibility and signaling. Its large 16mm panel cutout ensures easy installation, while the 1,000,000 cycle life guarantees long-lasting performance. Ideal for security, automation, and machinery control, this switch provides reliable actuation in harsh environments. Purchase online today for a dependable, vandal-resistant solution that ensures operational safety and efficiency.
Get E-Switch PVAG 21211 today—built for durability, vandal resistance, and reliable performance in demanding conditions.
Frequently Asked Questions
Where can I buy E-SWITCH PVA6LRE21211?
You can click on the BUY or RFQ button to purchase PVA6LRE21211 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA6LRE21211?
You can download the PVA6LRE21211 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA6LRE21211?
E-SWITCH
