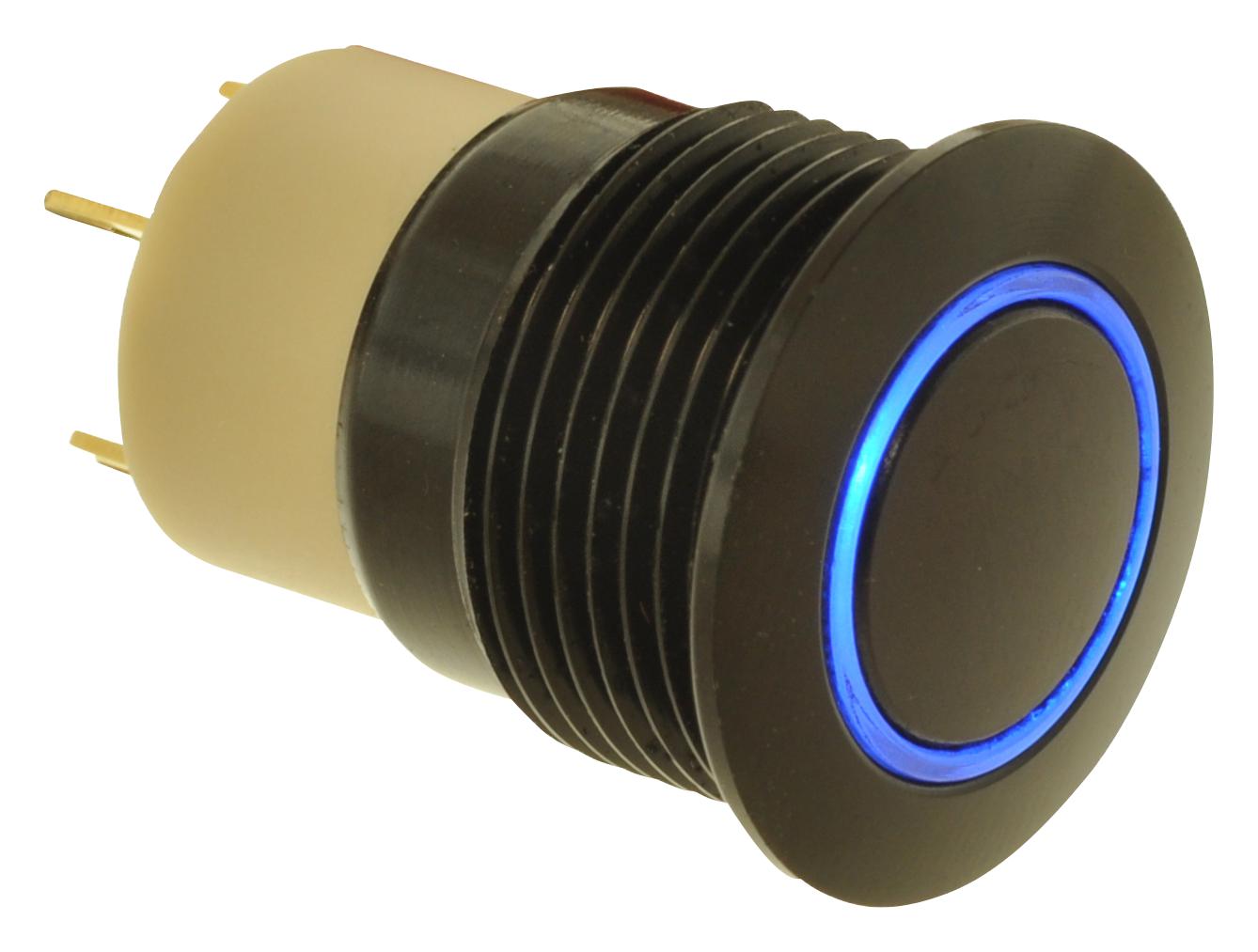

E-SWITCH PVA6LRE21231 Anti-Vandal Switch
The PVAG Series anti-vandal switches are rugged, IP67-rated devices designed for industrial environments. Featuring a 16mm diameter panel cutout, these switches offer SPST contact configuration, with illumination options including LED rings and power symbols. They endure up to 200,000 electrical cycles, operate from -20°C to 70°C, and provide reliable sealing against moisture and dust. Suitable for control panels, security systems, and machinery, they come with solder lug or wire lead terminations, and various actuator and bezel styles for versatile applications.
E-SWITCH PVA6LRE21231 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 36VDC PVAG
- Mechanical Cycles: 1,000,000 (PVAG), 100,000 (PVAG6L)
- Electrical Life: 200,000 Cycles
- Contact Resistance: 50mΩ Max.
- Insulation Resistance: 1,000 MΩ @ 500VDC
- Dielectric Strength: 2,000V
- Operating/Storage Temperature: -20°C to 70°C
- Travel: 2.0mm (PVAGL 2.3mm)
- Moisture Protection: IP67
- Contact Arrangement: SPST
- Actuation Force: 460 gf
- Panel Thickness: 1-8mm (PVAGL 1-6mm)
- Bezel: Rounded, Flat options available
- LED Colors: White, Red, Green, Blue, Yellow, Bi-color options
- Terminations: Solder lug or wire leads (500 mm)
- Thread: M16 x 1.0
- Housing Material: Anodized Aluminum or Stainless Steel
- Seal: IP67 rated
Buy the E-Switch PVAG – Reliable Anti-Vandal Switches for Industrial Applications
Purchase the E-Switch PVAG anti-vandal switches online now to enhance your control systems with rugged, IP67-rated durability. These switches feature LED illumination, SPST contact configuration, and M16 x 1.0 threading, making them ideal for demanding industrial environments. Their excellent electrical longevity, moisture resistance, and extensive actuator options ensure dependable operation in security panels, machinery controls, and more. With easy wiring and a compact 16mm diameter, they are a perfect choice for reliable, vandal-proof system control. Shop now for fast delivery and quality assurance.
Order your E-Switch PVAG series anti-vandal switch today and ensure reliable control in your industrial projects with durable IP67 sealing and versatile illumination options.
Frequently Asked Questions
Where can I buy E-SWITCH PVA6LRE21231?
You can click on the BUY or RFQ button to purchase PVA6LRE21231 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVA6LRE21231?
You can download the PVA6LRE21231 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVA6LRE21231?
E-SWITCH
