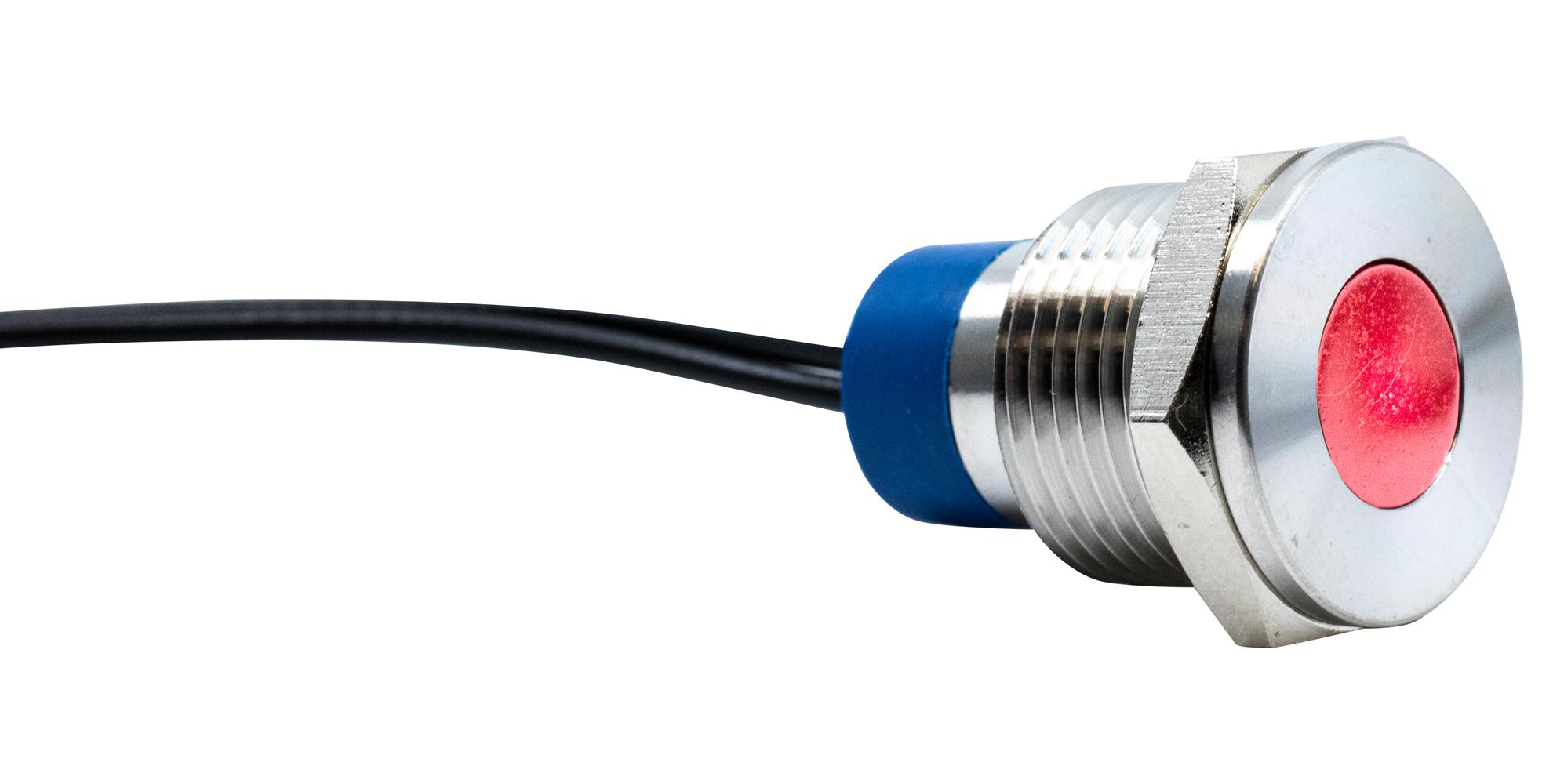

E-SWITCH PVL14FWS16 Pilot Indicator Light
The PVL14 series pilot indicator is a robust, IP67-rated illumination device designed for industrial environments. It features a stainless steel body, multiple LED color options, and versatile mounting sizes from 6mm to 19mm diameter. Equipped with a 150mm wire lead option, it supports various voltage inputs including 6V, 12V, 24V, and 110V. Its high lamp life of 40,000 hours and operating temperature range of -25°C to 55°C ensure durability and reliable performance in demanding applications, ideal for control panels and machinery indicators.
E-SWITCH PVL14FWS16 Pilot Indicator Light Specifications:
- Contact Arrangement: Lamp indicator
- Operating/Storage Temperature: -25°C to 55°C
- Lamp Life: 40,000 Hours Nominal
- Ingress Protection: IP67
- Panel Thickness: 1-6mm or 1-10mm
- Panel Cutout Diameters: 6mm to 19mm
- Body Material: Stainless Steel
- Illumination Voltage Options: 6V, 12V, 24V, 110V
- LED Color Options: Red, Yellow, Orange, Blue, Green, White
- Wire Lead Length: 150mm optional
- Mounting Nut Torque: 5-14 Nm
- Maximum Panel Thickness: 6.0mm to 10.0mm depending on model
- Thread Sizes: M6 x 0.5, M8 x 0.75, M10 x 0.75, M12 x 1.0, M14 x 1.0
- Schematic and dimensional details available for precise installation
Buy the Industrial Components PVL14 – Reliable Pilot Indicator for Industrial Applications
Order the PVL14 pilot indicator online today to enhance your industrial control panels with high durability, IP67 rating, and multiple LED color options. Ideal for demanding environments, this stainless steel indicator offers exceptional longevity with a lamp life of 40,000 hours. Its versatile mounting sizes and voltage options simplify installation, making it suitable for various applications from machinery to automation systems. Purchase now for reliable performance and quick delivery, ensuring your control systems operate efficiently and safely.
Get PVL14 today—built for precision, durability, and versatile control panel integration.
Frequently Asked Questions
Where can I buy E-SWITCH PVL14FWS16?
You can click on the BUY or RFQ button to purchase PVL14FWS16 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVL14FWS16?
You can download the PVL14FWS16 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVL14FWS16?
E-SWITCH
