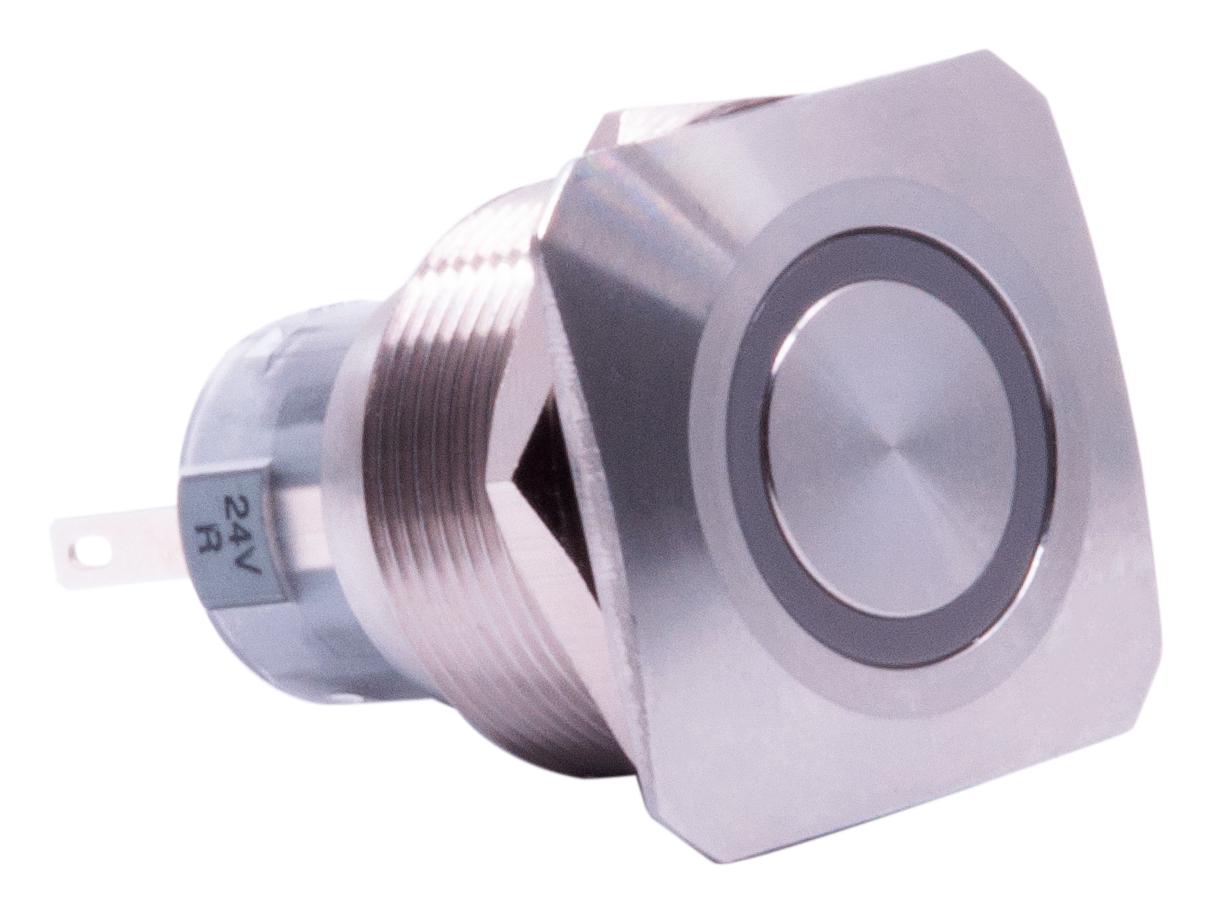

E-SWITCH PVS7F2BSS3R1 Vandal Switch
The PVS7 series anti-vandal switch features a stainless steel body with IP65 moisture protection, multiple actuation options, ring illumination, and soldered wire leads. Designed for durability and security, it offers SPDT and DPDT contact arrangements with a 2A, 24VDC electrical rating, and a travel distance of 2.50mm. Suitable for panel thicknesses of 1-11mm, this switch supports various illumination signals, including RGB options, making it ideal for robust industrial and control applications requiring vandal-resistant components.
E-SWITCH PVS7F2BSS3R1 Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MΩ Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
Buy the Brand Series PVS7 Vandal Switch: PVS7F2BSS3R1
Purchase the Brand Series PVS7F2BSS3R1 vandal-resistant switch online today. Experience its rugged stainless steel body, IP65 moisture protection, RGB LED illumination options, and reliable 2A 24VDC electrical rating. Perfect for industrial control panels, security systems, and vandal-prone environments, this switch offers durable performance with multiple actuation options and soldered wire leads. Don't compromise on security—order now to enhance your project with a robust and vandal-resistant switch built for demanding applications.
Order your Brand Series PVS7F2BSS3R1 vandal switch today and ensure the reliability and security needed for demanding industrial environments.
