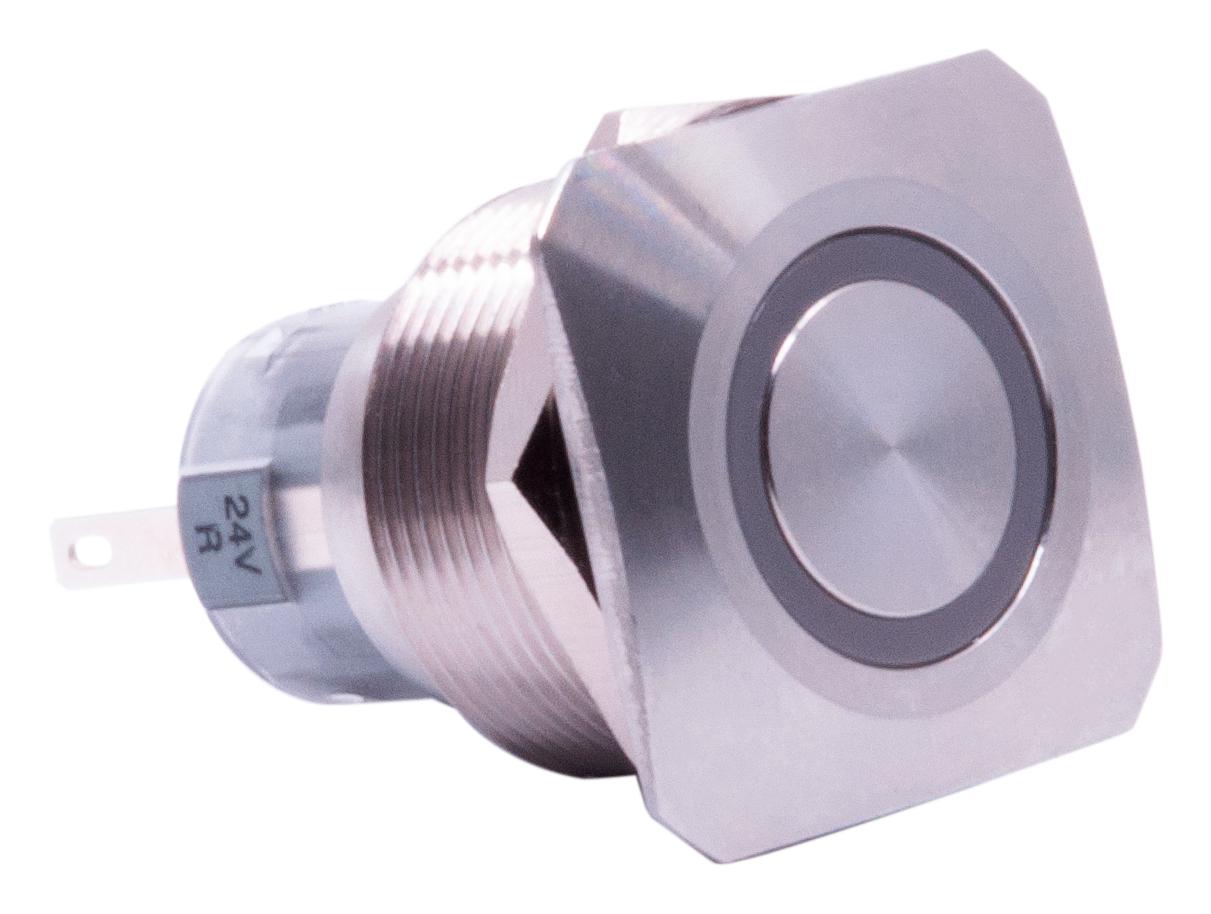

E-SWITCH PVS7F2GSS341 Anti-Vandal Switch
The PVS7 series anti-vandal switch offers durable, IP65-rated construction suitable for industrial environments. It features SPDT and DPDT contact arrangements, illuminated and non-illuminated options, and a stainless steel body with a 22mm diameter panel cutout. The switch includes multiple LED and graphic options, soldered wire leads, and optional ring illumination. With a travel distance of 2.50mm and an operating temperature range of -20°C to 55°C, it is ideal for reliable, high-performance switching applications requiring rugged design and varied illumination features.
E-SWITCH PVS7F2GSS341 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MO Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
Buy the Electro Switch PVS7F2GSS341 – Reliable Industrial Control Switch for Industrial Applications
Secure your industrial operations with our rugged PVS7 series anti-vandal switch. Featuring stainless steel construction, IP65 moisture protection, multiple LED illumination options, and optional ring lighting, this switch is designed for demanding environments. Its 22mm panel cutout, SPDT and DPDT contact configurations, and soldered wire leads ensure durability and easy installation. Perfect for control panels, machinery, and security systems, this switch combines high performance, weather resistance, and versatility for reliable, long-lasting operation in industrial settings.
Buy PVS7 series anti-vandal switch now and experience unmatched reliability and performance in your industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2GSS341?
You can click on the BUY or RFQ button to purchase PVS7F2GSS341 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2GSS341?
You can download the PVS7F2GSS341 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2GSS341?
E-SWITCH
