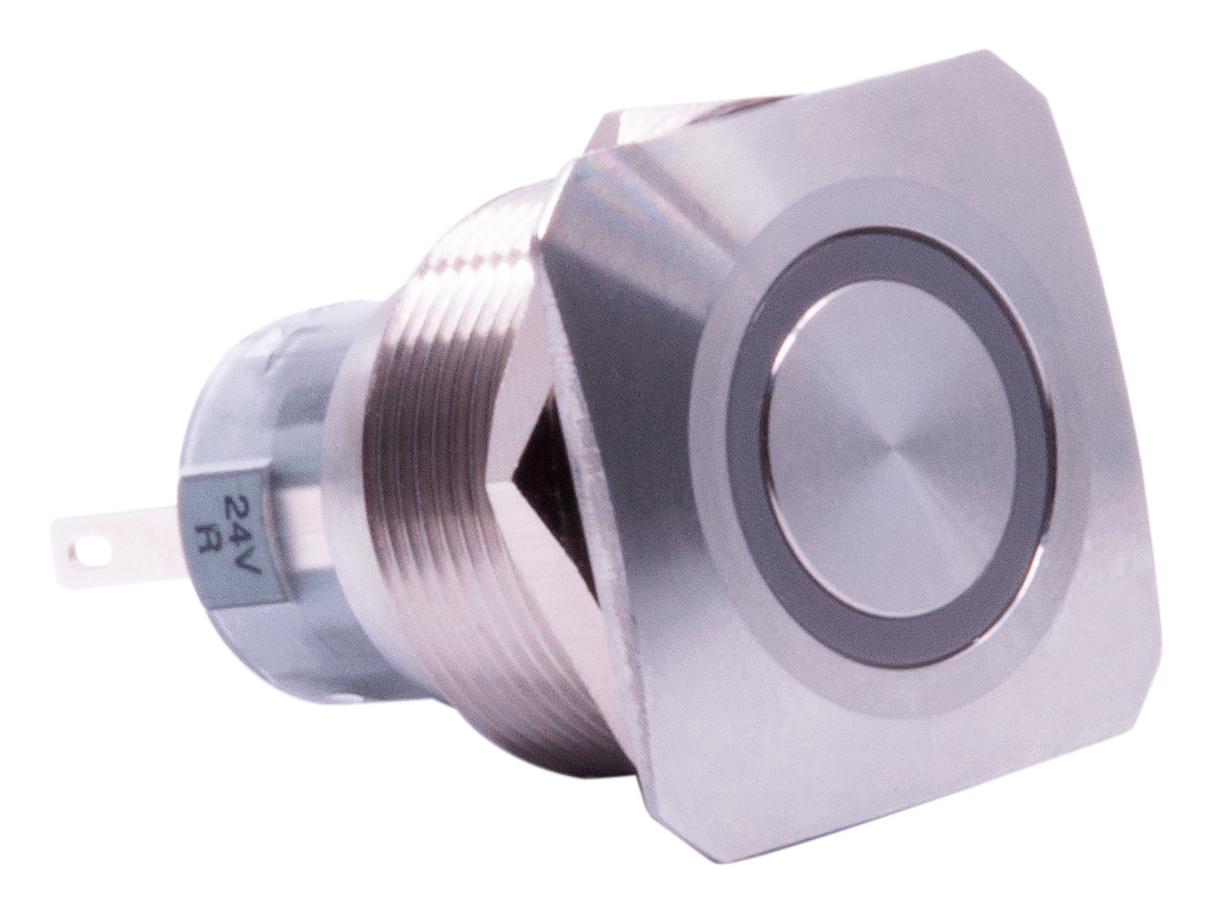

E-SWITCH PVS7F2HSS331 Anti-Vandal Switch
The PVS7F2HSS331 anti-vandal switch features a stainless steel body, 22mm diameter panel cutout, and IP65 moisture protection. It offers SPDT and DPDT contact arrangements with soldered or wire leads, illuminated or non-illuminated options, and various LED color choices including red, green, blue, yellow, and orange. The switch has a travel distance of 2.50mm, actuation force of 4 N, operating temperature from -20°C to 55°C, and panel thickness compatibility of 1-11mm. Designed for harsh environments, it ensures reliable performance in industrial and outdoor applications.
E-SWITCH PVS7F2HSS331 Anti-Vandal Switch Specifications:
- Body Material: Stainless Steel
- Panel Cutout Diameter: 22mm
- Moisture Protection: IP65
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 2,000VAC
- Operating Temperature: -20°C to 55°C
- Travel: 2.50mm
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Contact Arrangement: SPDT, DPDT
- LED Colors: Red, Orange, Green, Blue, Yellow
- LED Voltage Options: 3-6V, 4-12V, 5-24V, 6-125V, 7-250V
- Wire Lead Length: 300mm (approx. 11.8 inches)
- Switch Type: Illuminated and non-illuminated options
- Mechanical Life: 50,000 cycles
Buy the Stainless Steel 22mm Anti-Vandal Switch – Reliable Toggle for Industrial Applications
Order the anti-vandal switch online today to ensure reliable operation in harsh environments. Featuring stainless steel construction, IP65 protection, multiple contact options, and LED illumination, this switch is ideal for industrial, outdoor, and security applications. With a panel diameter of 22mm, travel of 2.50mm, and a force of 4 N, it offers durability and precision. Easy to install and suitable for panel thicknesses of 1-11mm, the switch provides long-lasting performance and peace of mind in demanding conditions.
Buy PVS7F2HSS331 stainless steel anti-vandal switch now and experience unmatched durability and performance in rugged industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2HSS331?
You can click on the BUY or RFQ button to purchase PVS7F2HSS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2HSS331?
You can download the PVS7F2HSS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2HSS331?
E-SWITCH
