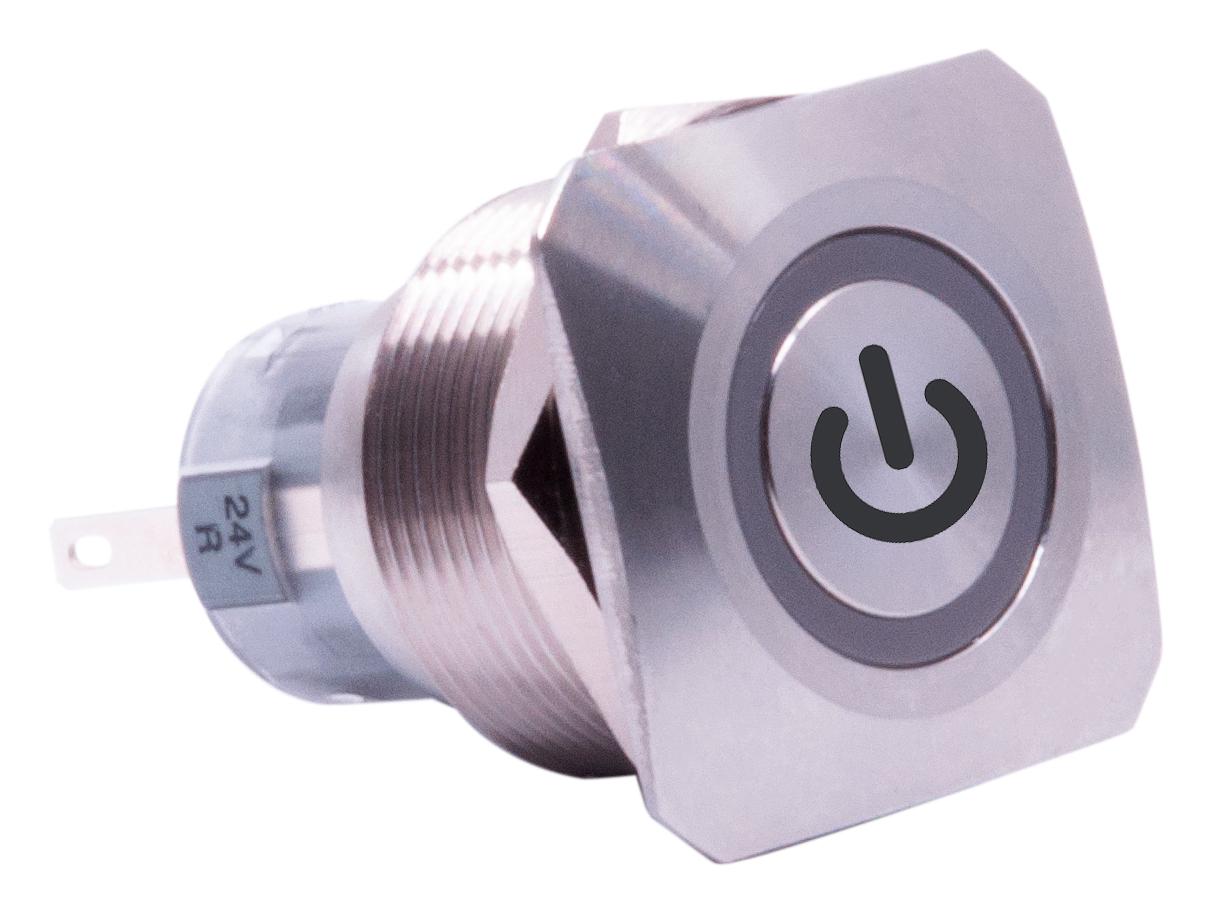

E-SWITCH PVS7F2HSS335M01 Anti-Vandal Switch
The PVS7 Series Anti-Vandal Switch is a robust, stainless steel, 22mm diameter panel-mounted switch rated for 2A at 24VDC. It features IP65 moisture protection, a 2.50mm travel, and optional LED illumination with multiple color and graphic options. Suitable for industrial and security applications, it offers SPDT and DPDT contact arrangements, soldered wire leads, and a flat actuator with laser-etched graphic options. Designed for panel thicknesses up to 11mm, it combines durability with versatile illumination features for enhanced visibility and control.
E-SWITCH PVS7F2HSS335M01 Anti-Vandal Switch Specifications:
- Electrical Rating: 2A, 24VDC
- Electrical Life: 50,000 Cycles
- Contact Resistance: 50mQ Max.
- Insulation Resistance: 1000 MO Min.
- Dielectric Strength: 2,000VAC
- Operating/Storage Temperature: -20°C to 55°C
- Travel: 2.50mm
- Moisture Protection: IP65
- Contact Arrangement: SPDT, DPDT
- Actuation Force: 4 N
- Panel Thickness: 1-11mm
- Mounting Nut Torque: 5-14Nm
- Body Finish: Stainless Steel
- Panel Cutout Diameter: 22mm
- Wire Leads: 300mm long, 24AWG UL1015, optional soldered
- LED Illumination: Multiple colors, options for laser etched or graphic symbols
- Actuator Options: Flat with laser engraving
Buy the M22 Series Anti-Vandal Switch: PVS7F2HSS335M01
Purchase the M22 Series Anti-Vandal Switch online today to enhance your equipment's durability and control. Featuring IP65 protection, stainless steel construction, versatile LED illumination options, and a robust 2A, 24VDC rating, this switch is ideal for demanding industrial and security environments. Its flat actuator, laser-etched graphic options, and soldered wire leads ensure easy installation and long-lasting performance. Order now for reliable, high-quality switching solutions designed to withstand harsh conditions and deliver clear visual feedback.
Order your M22 Series Anti-Vandal Switch PVS7F2HSS335M01 today and secure reliable performance for industrial and security applications.
Frequently Asked Questions
Where can I buy E-SWITCH PVS7F2HSS335M01?
You can click on the BUY or RFQ button to purchase PVS7F2HSS335M01 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVS7F2HSS335M01?
You can download the PVS7F2HSS335M01 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVS7F2HSS335M01?
E-SWITCH
