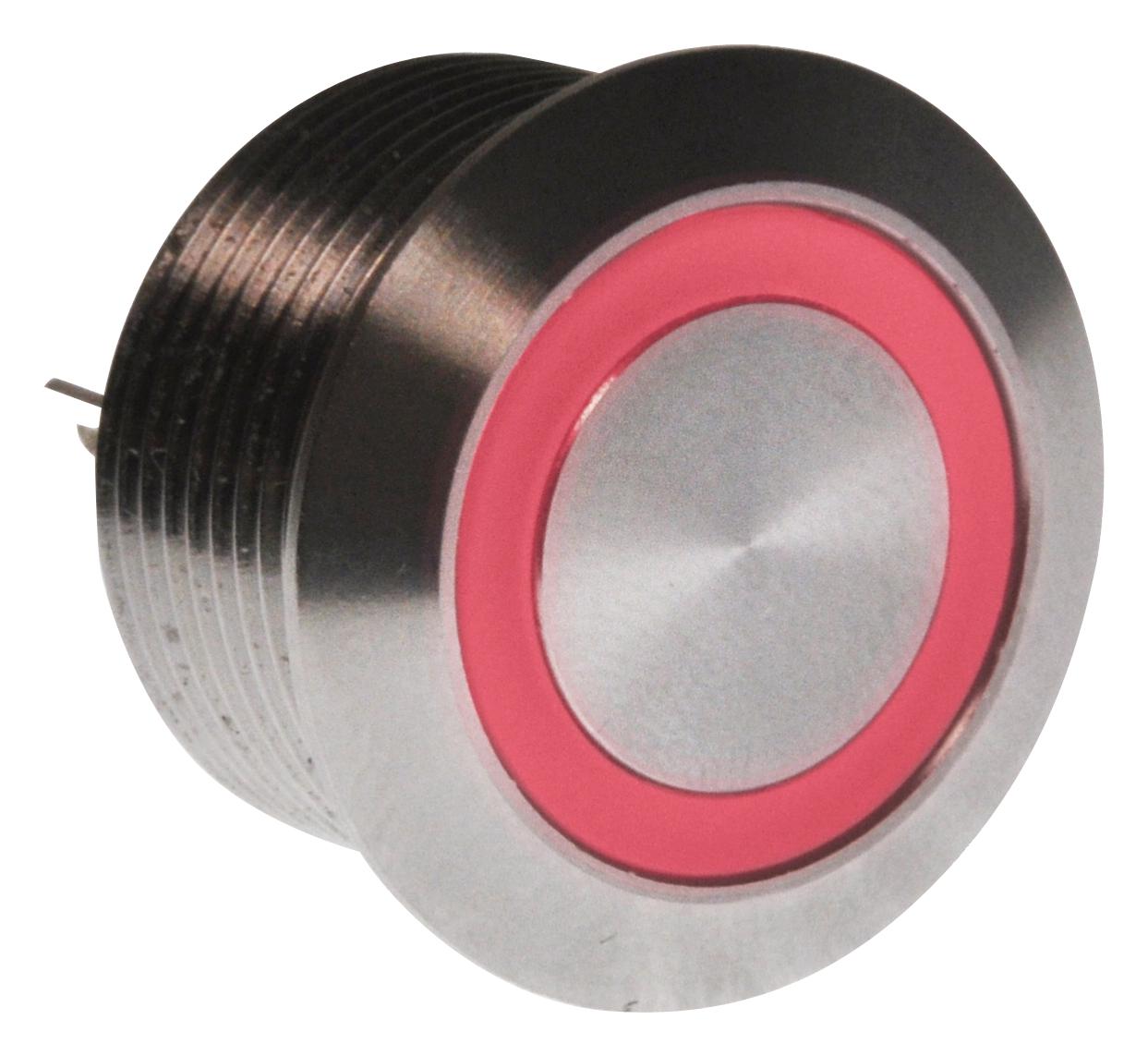

E-SWITCH PVT4FS4SS314 Anti-Vandal Switch
The PVT4 series anti-vandal switch offers robust and reliable operation with a 50mA, 24VDC electrical rating and an IP65 moisture protection rating. It features a stainless steel housing with a 19mm panel cutout, and various termination options including solder or wire leads. Equipped with LED illumination options and a tactile response, this switch is suitable for demanding industrial environments. Its high durability ensures a lifespan of 500,000 cycles, making it ideal for control panels, machinery, and safety applications requiring vandal-resistant performance.
E-SWITCH PVT4FS4SS314 Anti-Vandal Switch Specifications:
- Electrical Rating: 50mA, 24VDC
- Electrical Life: 500,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000 MΩ Min
- Dielectric Strength: 250VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 0.5mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-(On)
- Actuation Force: 490 grams
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 0.8Nm
- Housing Material: Stainless Steel
- LED Voltage Options: 3-6V, 12V, 24V
- Ring Illumination: Yes
- Actuator Material: Stainless Steel
- Mounting Thread: M19 x 1.0
- Wire Lead Lengths: 300mm
- Cap Options: Various including stainless steel, LED illumination rings
- Dimensions: 15mm diameter ring illumination, actuator length 13mm, housing height 11.8mm
- Termination Options: Solder Lug, Wire Leads
- Environmental Rating: IP65
Buy the E-switch Series PVT4 Anti-Vandal Switch: PVT4FS4SS314
Purchase the E-switch PVT4FS4SS314 anti-vandal switch online today and benefit from its robust stainless steel construction, IP65 moisture protection, and high lifespan of 500,000 cycles. Equipped with LED illumination options and various termination configurations, it is ideal for demanding industrial environments requiring vandal-resistant control solutions. Whether for control panels, machinery, or safety systems, this switch combines durability, ease of installation, and reliable performance, ensuring seamless operation in tough conditions. Order now to enhance your control systems with this industrial-grade component.
Buy E-switch PVT4FS4SS314 now and experience unmatched reliability, vandal resistance, and durable LED illumination for industrial control applications.
Frequently Asked Questions
Where can I buy E-SWITCH PVT4FS4SS314?
You can click on the BUY or RFQ button to purchase PVT4FS4SS314 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVT4FS4SS314?
You can download the PVT4FS4SS314 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVT4FS4SS314?
E-SWITCH
