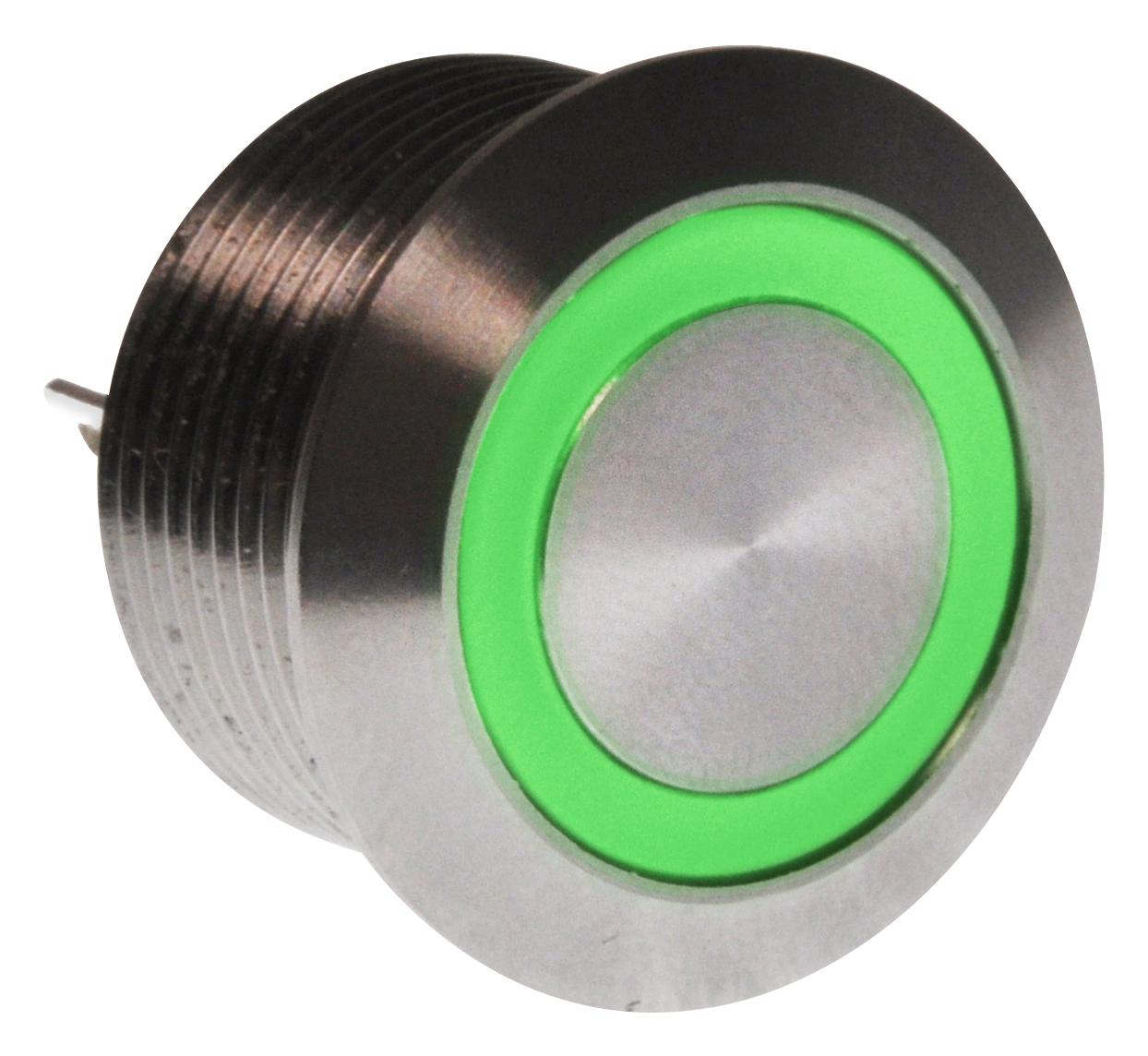

E-SWITCH PVT4FS4SS334 Anti-vandal Switch
The PVT4 Series anti-vandal switch offers durable, IP65-rated design with crisp tactile response, suitable for industrial applications. Equipped with stainless steel actuators and housing, it features solder or wire lead terminations, LED illumination with multiple color options, and a panel cutout of 19mm. The switch has a contact resistance of 50mΩ, dielectric strength of 250VAC, and an operating temperature range of -25°C to 55°C, ensuring reliable performance in demanding environments.
E-SWITCH PVT4FS4SS334 Anti-vandal Switch Specifications:
- Electrical Rating: 50mA, 24VDC
- Electrical Life: 500,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Strength: 250VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 0.5mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-(On)
- Actuation Force: 490 grams
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 0.8Nm
- Panel Cutout: 19mm
- Housing Material: Stainless Steel
- Actuator Material: Stainless Steel
Buy the Industrial Series Anti-Vandal Switch: PVT4FS4SS334
Purchase the durable anti-vandal switch PVT4FS4SS334 online today and enhance your control panels with IP65-rated protection, stainless steel durability, and versatile illumination options. Featuring solder or wire lead terminations, crisp tactile response, and a panel cutout of only 19mm, this switch is ideal for industrial environments. Its specification includes a 50mΩ contact resistance, 250VAC dielectric strength, and a temperature range from -25°C to 55°C, ensuring reliable operation in harsh conditions. Get yours now to upgrade your projects with quality and durability.
Order your industrial series anti-vandal switch PVT4FS4SS334 today and ensure reliable control in demanding environments with IP65 protection.
Frequently Asked Questions
Where can I buy E-SWITCH PVT4FS4SS334?
You can click on the BUY or RFQ button to purchase PVT4FS4SS334 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part PVT4FS4SS334?
You can download the PVT4FS4SS334 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of PVT4FS4SS334?
E-SWITCH
