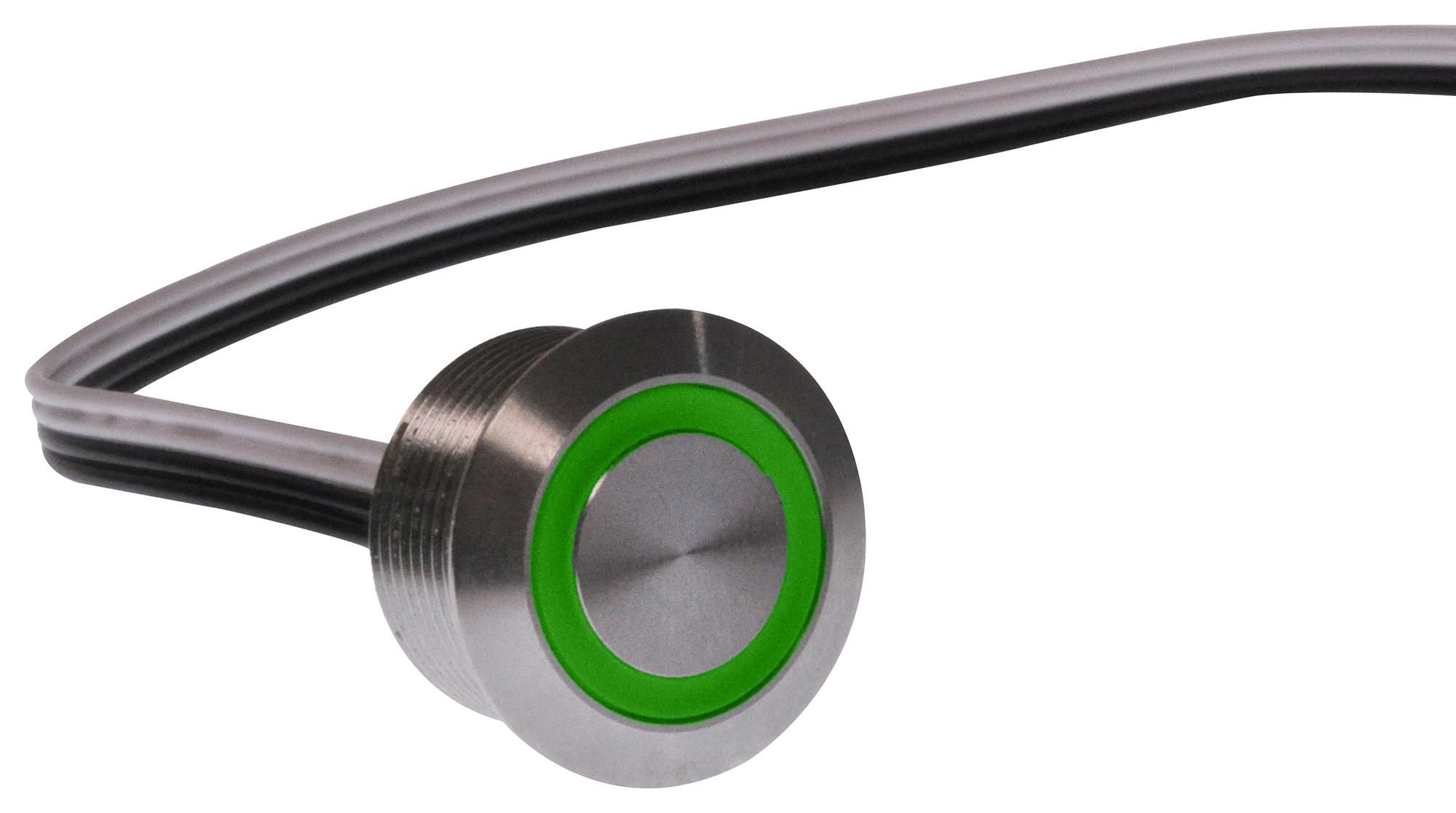

E-SWITCH PVT4FW4SS331 Anti-Vandal Switch
The PVT4 series anti-vandal switches are robust, IP65-rated devices featuring stainless steel housings designed for harsh environments. They offer tactile response, with options for ring illumination in multiple LED colors, and come with solder or wire lead terminations. Suitable for panel mounting with a 19mm cutout, these switches support SPST Off-(On) contact arrangements and operate within -25°C to 55°C. Ideal for control panels, industrial machinery, and security devices requiring reliable, vandal-resistant switching solutions.
E-SWITCH PVT4FW4SS331 Anti-Vandal Switch Specifications:
- Electrical Rating: 50mA, 24VDC
- Electrical Life: 500,000 Cycles
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 1000MΩ Min
- Dielectric Strength: 250VAC
- Operating/Storage Temperature: -25°C to 55°C
- Travel: 0.5mm
- Moisture Protection: IP65
- Contact Arrangement: SPST Off-(On)
- Actuation Force: 490 grams
- Panel Thickness: 1-6mm
- Mounting Nut Torque: 0.8Nm
- Panel cutout: 19mm
- LED voltage options: 3V, 6V, 12V, 24V
- Housing & actuator material: Stainless steel
- Connection: Solder or wire leads with 300mm length
- Illumination: Ring indicator with various color options
Buy the Stainless Steel Series Anti-Vandal Switch: PVT4FW4SS331
Enhance your control panel with the durable PVT4 series anti-vandal switches, featuring stainless steel housing and IP65 protection. With options for LED illumination in multiple colors, these switches provide reliable tactile response and easy mounting through a 19mm panel cutout. Ideal for industrial machinery, security systems, and harsh environments, they support SPST on-off contact arrangements, ensuring optimal functionality and longevity. Purchase online now for prompt delivery and confidence in your control solutions.
Buy PVT4 series stainless steel anti-vandal switch now and experience unmatched reliability and performance for rugged environments.
