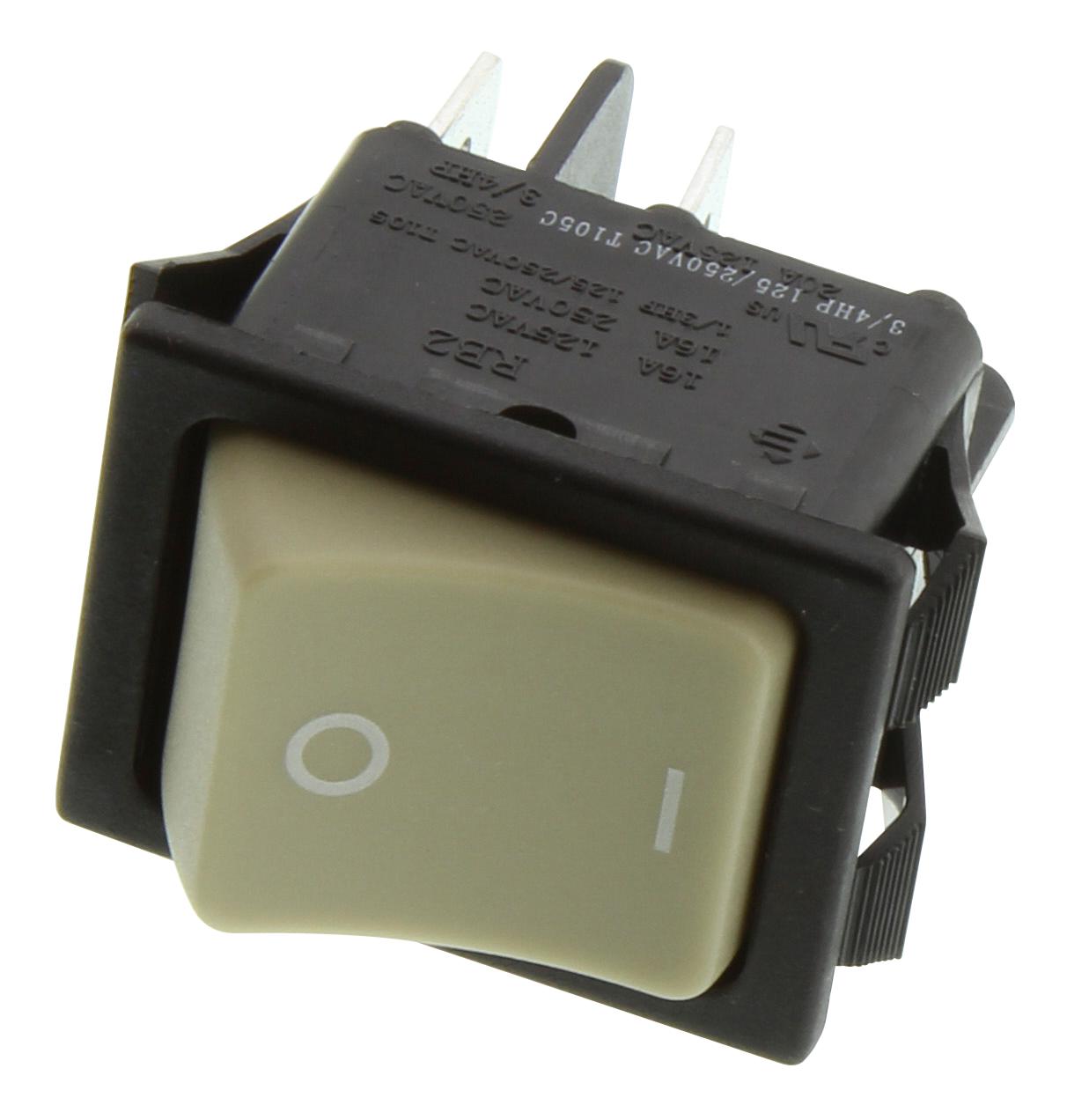

E-SWITCH RB242D142R Industrial Rocker Switch
The RB2 Series Rocker Switch is a versatile, high-quality anti-vandal switch designed for reliable operation in various applications such as industrial appliances, detector systems, and control panels. Featuring multiple positions, illumination options, and configurable terminal and actuator choices, it offers durability with an operating temperature range of -20°C to 65°C and an electrical life of 10,000 cycles. Its IP54 ingress protection, optional dust and water caps, and various ratings (16A, 20A, 16A/250VAC, 250VAC, etc.) make it suitable for demanding environments requiring robust switching solutions.
E-SWITCH RB242D142R Industrial Rocker Switch Specifications:
- Electrical Ratings: 16A 125VAC T85, 16A 250VAC T85, 20A 125VAC T105, 16A 250VAC T105, 10A 250VAC T85/55, 16A 250VAC T85/55
- Operating Temperature: -20°C to 65°C
- Ingress Protection: IP54 with optional silicone cap
- Electrical Life: 10,000 cycles
- Contact Resistance: 35mΩ Max at 50VAC
- Insulation Resistance: 100MΩ Min at 500VDC
- Dielectric Strength: 1,500VAC for 1 min
- Panel Thickness Tolerance: 0.75 - 3.00 mm (varies by model)
- Body Dimensions: Approximately 22-25mm width, height varies per model
- Terminal Types: 2- or 4-pole configurations, with Tab terminals
- Marking & Illumination Options: Non-illuminated, illuminated, various marking colors
- Certifications: cULus, SEMKO, ENEC, VDE
Buy the Buy RB2 Series Rocker Switch Part Number RB242D142R Online
Purchase the RB2 Series Rocker Switch online today to enjoy reliable, high-quality switching solutions for industrial, detector, and control panel applications. Designed with robust ingress protection and multiple configuration options including illumination and marking styles, this switch ensures long-lasting durability and dependable operation across a wide temperature range. Its certified safety ratings and optional dust and water caps make it suitable for harsh environments. Experience seamless online ordering with fast delivery and comprehensive support for your automation and control needs.
Get RB2 Series Rocker Switch RB242D142R today—built for durability, versatile configurations, and reliable performance in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH RB242D142R?
You can click on the BUY or RFQ button to purchase RB242D142R from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RB242D142R?
You can download the RB242D142R datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RB242D142R?
E-SWITCH
