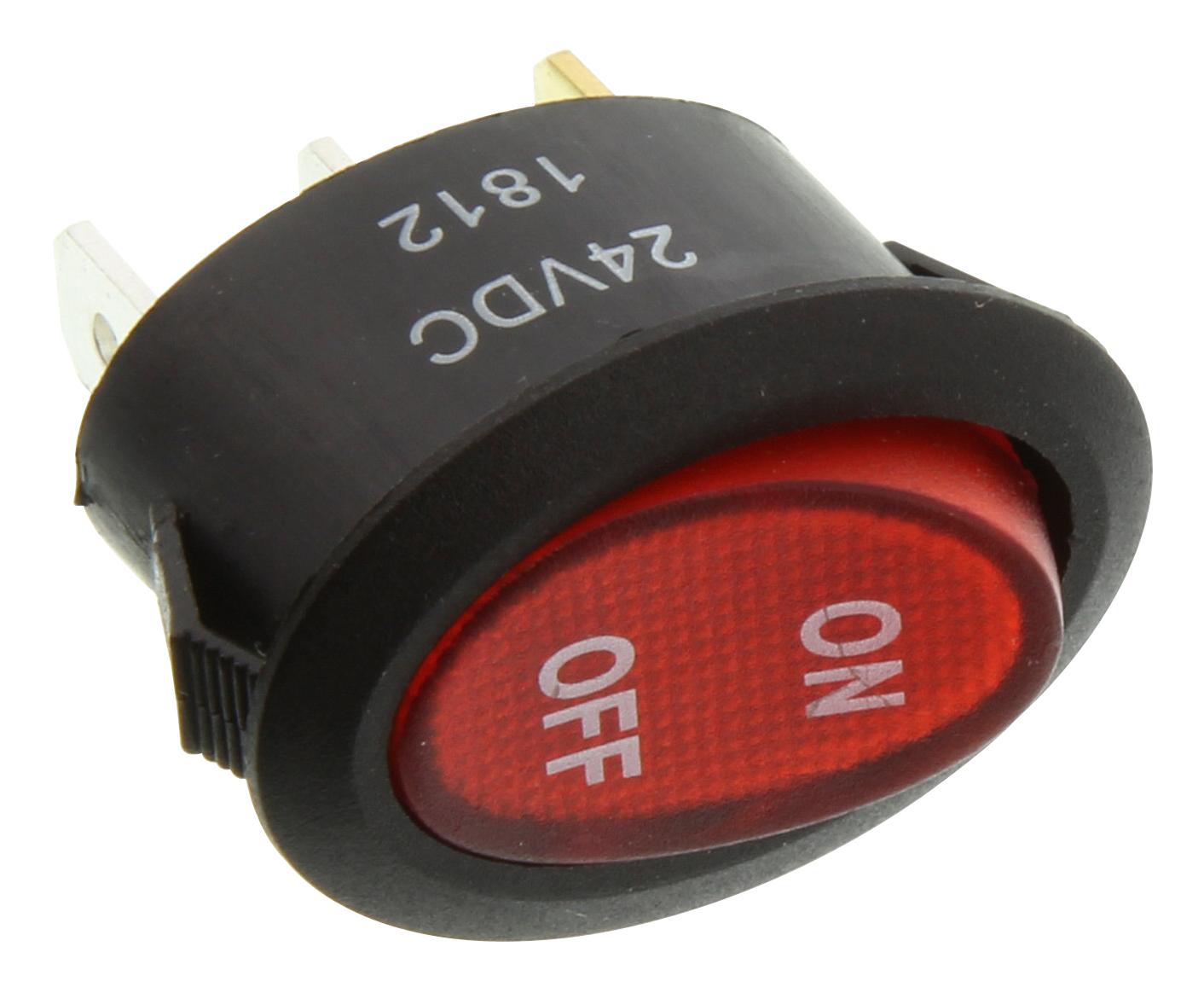

E-SWITCH RE11131023115 Oval Rocker Switch
The RE1 Series rocker switch features a unique oval shape with high ratings, UL and VDE approvals, and a sturdy polyamide housing. It supports 6A at 125VAC, 10A at 250VAC, and 1A at 125VAC, with electrical life of 10,000 cycles. Designed for panel mounting with a 4.8mm tab, it offers excellent insulation resistance, contact resistance of 35mΩ, and a wide temperature range from -20°C to 125°C. The switch includes silver alloy contacts, gold-plated copper terminals, and options for various actuator markings and color configurations, making it suitable for industrial control applications.
E-SWITCH RE11131023115 Oval Rocker Switch Specifications:
- Current Rating: 6A at 125VAC, 10A at 250VAC, 1A at 125VAC
- Voltage Rating: 125VAC, 250VAC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 35mΩ Max
- Insulation Resistance: 100MΩ Min at 500VDC
- Operating Temperature: -20°C to 125°C
- Material: Polyamide 6/6, UL94 V-2, Polycarbonate
- Contact Material: Silver Alloy
- Terminals: Silver Plated Copper, 4.8mm Tab
- Panel Cutout: Oval Shape
- Ratings Approval: UL, cUL, VDE
- VDE Switch Ratings: 2(10)A at 250V, 2(5)A at 250V
- Mechanical Life: 10,000 Cycles
Buy the Industrial Switch Series RE1 Oval Switch: RE11131023115
Order the Oval Rocker Switch from the RE1 Series today and enjoy fast shipping and secure online purchasing. Engineered with high-quality polyamide housing, UL and VDE approvals, and rated for up to 6A at 125VAC and 10A at 250VAC, this switch delivers long-lasting performance. Its robust construction ensures 10,000 mechanical cycles, making it ideal for industrial control panels. The switch’s durable contacts, wide operating temperature range, and versatile actuator options provide reliable operation in demanding environments. Purchase online now and enhance your control system with this dependable switch.
Buy RE1 Series oval rocker switch RE11131023115 now and experience unmatched reliability and performance for professional industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH RE11131023115?
You can click on the BUY or RFQ button to purchase RE11131023115 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RE11131023115?
You can download the RE11131023115 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RE11131023115?
E-SWITCH
