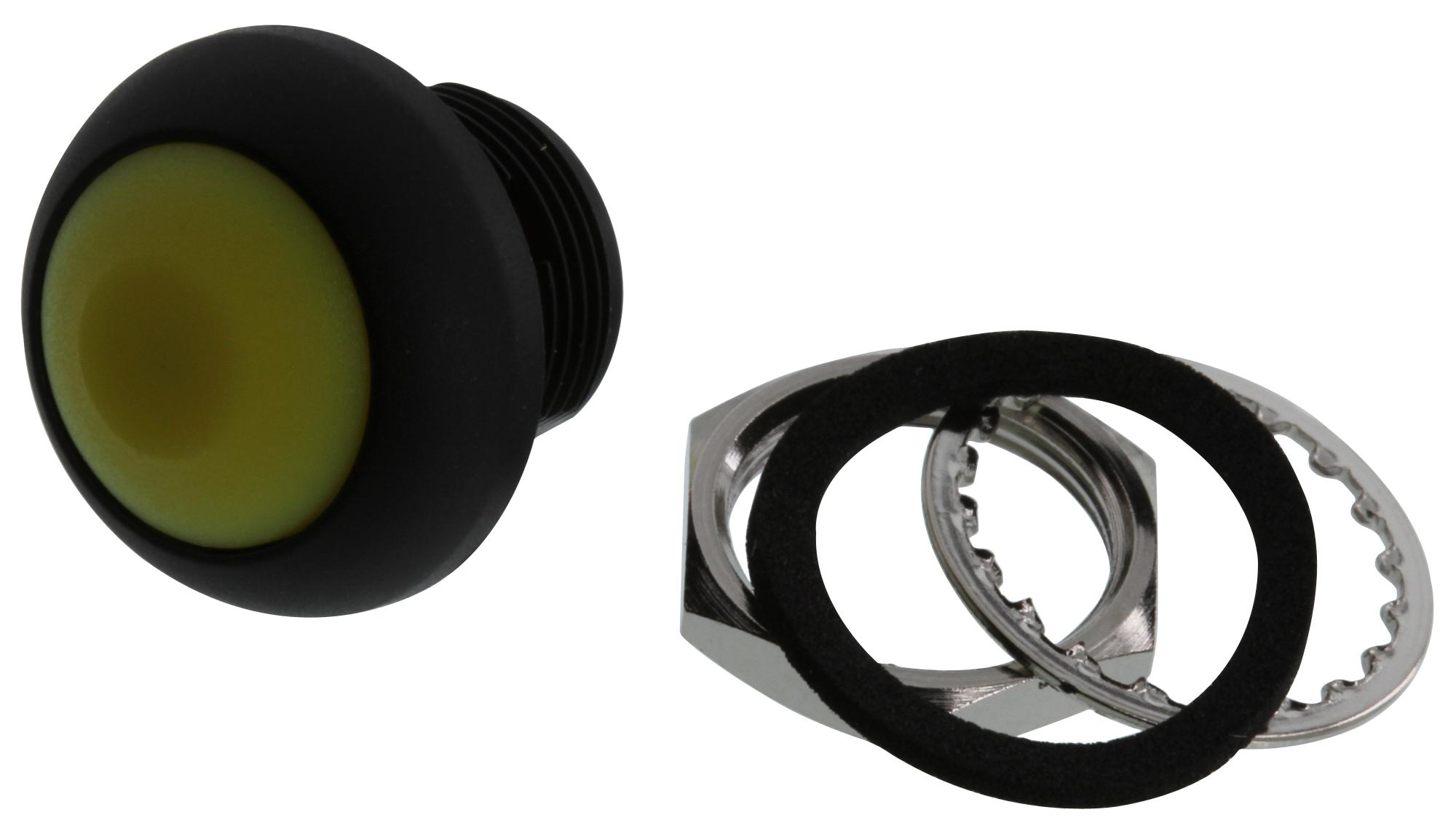

E-SWITCH RP8100B2M1CEBLKYELNIL Pushbutton Switch
The pushbutton switch series is IP67 rated, featuring sealed construction, LED illumination options, and a contact resistance of max 50mΩ. Suitable for industrial environments, it offers a life expectancy of 500,000 cycles at full load, operating from -30°C to 85°C. Available in various configurations with threaded or snap-in mounting, it includes contact arrangements like SPST and momentary. Key features include durable epoxy contact seals, an actuation force of 350 gf, and an ingress protection rating of IP67, making it ideal for vandal-resistant and demanding industrial applications.
E-SWITCH RP8100B2M1CEBLKYELNIL Pushbutton Switch Specifications:
- Ingress Protection: IP67
- Contact Resistance: 50mΩ Max. (initial)
- Life Expectancy: 500,000 Cycles at full load
- Operating Temperature: -30°C to 85°C
- Actuation Force: 350 gf
- Travel: 1.5mm
- Contact Arrangement: SPST, Off-(On), Momentary
- Electrical Ratings: 125mA @ 125VAC, 100mA @ 50VDC
- Material: Epoxy contact seal
- Bushing Types: Threaded or Snap-In
- Seal Material: Epoxy
- Sealed to IP67
- Contact Bounce: 10ms MAX
- Insulation Resistance: 1,000MO Min. @ 500VDC
- Dielectric Strength: 1,000VAC rms
- Operating Temperature Range: -30°C to 85°C
Buy the Industrial Brand RP8100 – Reliable Pushbutton Switch for Industrial Applications
Experience the reliability and durability of the RP8100 Series sealed pushbutton switches, designed for demanding industrial environments. With IP67 sealing, LED illumination options, and a lifecycle of 500,000 cycles, these switches ensure long-term performance. They feature a compact design suitable for panel mounting, with a travel of 1.5mm and an actuation force of 350 gf. Ideal for vandal-resistant applications, they are available in various contact configurations and mounting options. Improve your machinery and control panels by ordering online today for prompt delivery and superior quality.
Order your Brand RP8100 Series sealed pushbutton switch today and ensure your industrial projects are equipped with durable, IP67-rated switch solutions.
Frequently Asked Questions
Where can I buy E-SWITCH RP8100B2M1CEBLKYELNIL?
You can click on the BUY or RFQ button to purchase RP8100B2M1CEBLKYELNIL from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RP8100B2M1CEBLKYELNIL?
You can download the RP8100B2M1CEBLKYELNIL datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RP8100B2M1CEBLKYELNIL?
E-SWITCH
