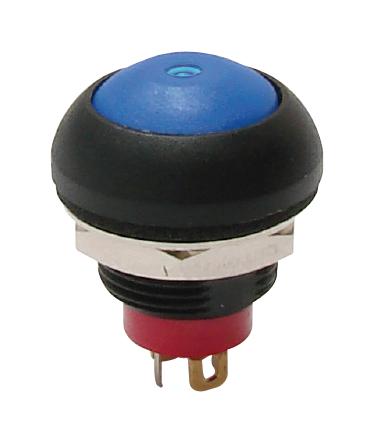

E-SWITCH RP8100B2W1CEBLKBLKRED Pushbutton Switch
The RP8100 series pushbutton switches offer reliable, sealed operation with options for LED illumination, threaded or snap-in panel mounts, and an IP67 rating suitable for industrial environments. Designed for durability, these switches support up to 500,000 cycles at full load, with low contact resistance and high insulation resistance. Featuring momentary contact, an actuation force of 350 gf, and operating temperatures from -30°C to 85°C, they are ideal for industrial automation, control panels, and machinery where durability and performance are critical.
E-SWITCH RP8100B2W1CEBLKBLKRED Pushbutton Switch Specifications:
- Life Expectancy: 500,000 cycles at full load
- Contact Resistance: 50mΩ max (initial)
- Insulation Resistance: 1,000MΩ min @ 500VDC
- Dielectric Strength: 1,000VAC rms
- Operating Temperature: -30°C to 85°C
- Actuation Force: 350 gf
- Contact Arrangement: SPST, Off-(On), Momentary
- Ingress Protection: IP67
- LED Illumination Options: Available with various colours
- Wiring: Molded back with wire leads, 500mm long
- Threaded or snap-in panel mount options
- Thread Size: M12 x 0.75
- Material: Sealed, molded plastic with metal contacts
- Voltage Rating: 125VAC @ 125mA, 50VDC @ 100mA
- Travel: 1.5mm
Buy the IndustrialTech RP8100 – Reliable Pushbutton Switches for Industrial Applications
Buy your industrial grade pushbutton switch online today and ensure exceptional performance and durability for your control panels and machinery. Featuring IP67 sealing, LED illumination options, and support for high cycle life, this switch is perfect for demanding industrial environments. With easy panel mounting options and reliable contact performance, the RP8100 series guarantees a secure and long-lasting connection. Improve your automation systems and equipment reliability by purchasing your high-quality switch online today, benefiting from fast delivery and competitive pricing.
Order your IndustrialTech RP8100 series pushbutton switch today and enhance your control panel reliability with durable, sealed, and long-lasting switches.
Frequently Asked Questions
Where can I buy E-SWITCH RP8100B2W1CEBLKBLKRED?
You can click on the BUY or RFQ button to purchase RP8100B2W1CEBLKBLKRED from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RP8100B2W1CEBLKBLKRED?
You can download the RP8100B2W1CEBLKBLKRED datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RP8100B2W1CEBLKBLKRED?
E-SWITCH
