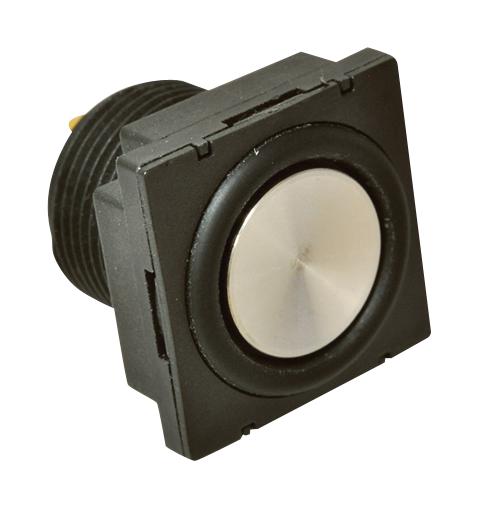

E-SWITCH RP8600B2M1CEBLKSIL Pushbutton Switch
The RP8600 series pushbutton switch is a reliable, sealed control component rated for up to 0.4VA at 20V, with a lifespan of 50,000 electrical cycles and 100,000 mechanical cycles. Featuring SPST off-(on) contact arrangement, it offers a compact design with a panel thickness tolerance of 1.5mm to 4.0mm, and a travel distance of 0.65mm (±0.20mm). Its IP67 moisture protection rating ensures durability in harsh environments, making it ideal for industrial applications requiring robust and dependable switching solutions.
E-SWITCH RP8600B2M1CEBLKSIL Pushbutton Switch Specifications:
- Contact Rating: 0.4VA Max. @ 20V Max (AC or DC)
- Electrical Life: 50,000 Cycles
- Mechanical Life: 100,000 Cycles
- Contact Resistance: 200mΩ Initial @ 2-4VDC, 100mA
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 1,000VAC for 1 minute
- Operating/Storage Temperature: -30°C to 85°C
- Travel: 0.65 +/- 0.20mm
- Contact Arrangement: SPST, Off-(On)
- Actuation Force: 630 gf +/- 130 grams
- Panel Thickness: 1.5mm- 4.0mm
- Moisture Protection: IP67
- Max Hex Nut Torque: 2.2 Nm Max.
Buy the Generic RP8600 – Reliable Pushbutton Switch for Industrial Applications
Purchase the RP8600 series pushbutton switch online today and enjoy dependable operation in harsh environments. Engineered for durability, it features IP67 sealing, a long lifespan of 100,000 mechanical cycles, and a compact design. Ideal for control panels, automation, and machinery requiring reliable switching. With a rated voltage of 20V and a contact resistance of just 200mΩ, this switch ensures consistent performance. Secure your industrial projects with a proven durable switch—order now to get fast, reliable delivery and professional support.
Order your Generic RP8600 series pushbutton switch today and enhance your industrial control panels with a durable, sealed switching solution that guarantees performance.
Frequently Asked Questions
Where can I buy E-SWITCH RP8600B2M1CEBLKSIL?
You can click on the BUY or RFQ button to purchase RP8600B2M1CEBLKSIL from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RP8600B2M1CEBLKSIL?
You can download the RP8600B2M1CEBLKSIL datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RP8600B2M1CEBLKSIL?
E-SWITCH
