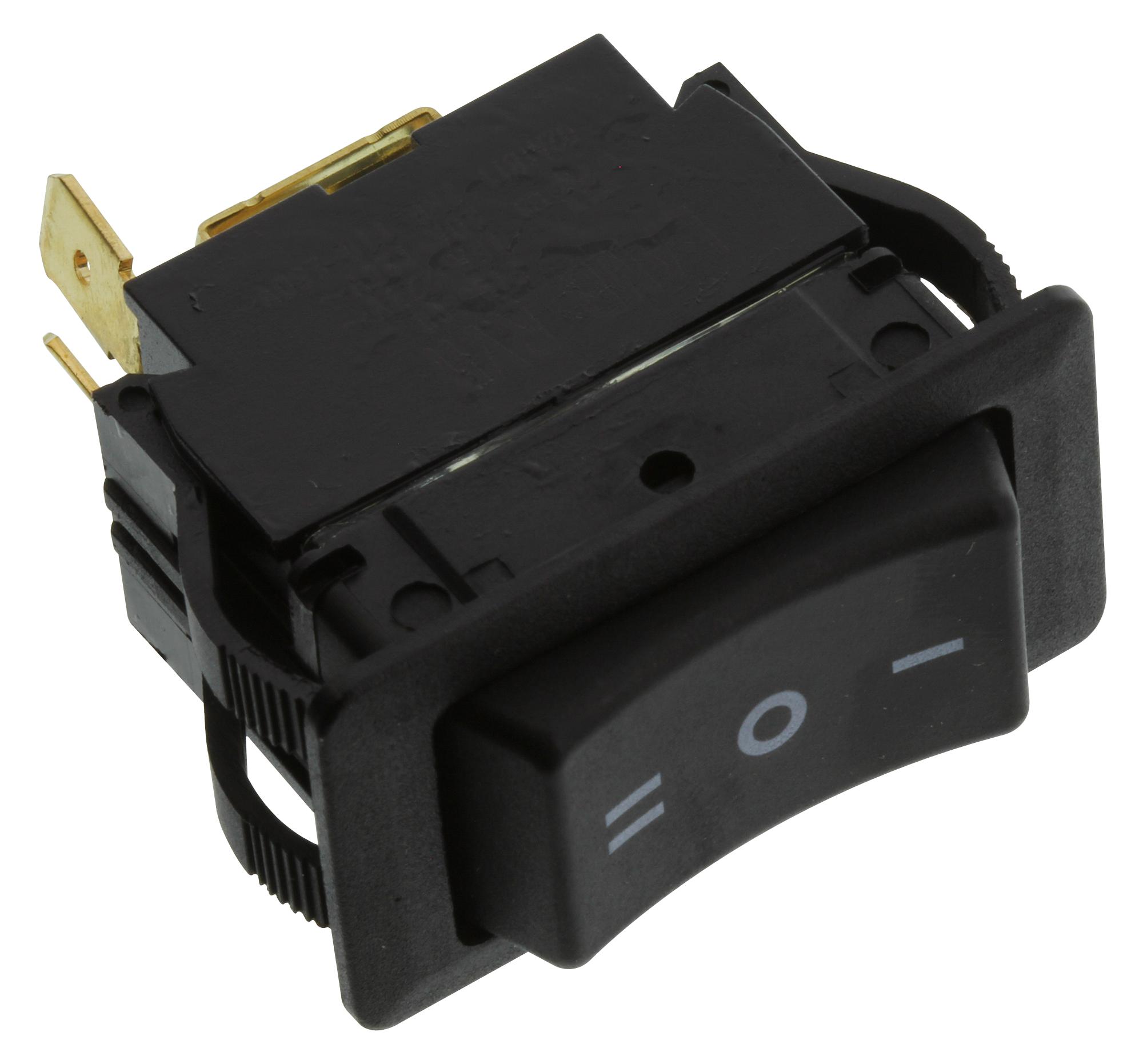

E-SWITCH RVW4Z07D112S Rocker Switch
The RVW series rocker switch offers reliable operation with a rating of up to 20A 125VAC, 15A 277VAC, and 2HP 110/250VAC. It features IP54 ingress protection, a 37.5mm x 21mm panel cutout, and is approved by cURus. Designed for various applications, it provides multiple terminal options including solder, screw, and terminals with different pole configurations. Its durable body is suitable for industrial and commercial use, with characteristics supporting high electrical life and insulation resistance for versatile switching needs.
E-SWITCH RVW4Z07D112S Rocker Switch Specifications:
- Rating: 20A 125VAC (cURus UL508), 15A 277VAC (cURus UL508), 2HP 110/250VAC (cURus UL508)
- Operating Temperature: 0°C to 55°C
- Electrical Life: 6,000 cycles
- Contact Resistance: 50 mO Max.
- Insulation Resistance: 800 MΩ Min. at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Ingress Protection: IP54 Standard
- Panel Cutout: 37.5mm x 21mm
- Terminal Options: Solder, screws, various pole configurations
- Certification: cURus Approved
- Body Dimensions: specific to model, panel mount with 17mm to 19.5mm depth
- Mechanical durability suitable for industrial control panels
- Switching function options include On-Off, Off-On, On-On, On-Off-On
Buy the HVAC Series RVW Rocker Switch: RVW4Z07D112S
Order the HV Series rocker switch RVW4Z07D112S online today to ensure your control panels operate smoothly with high durability, multiple terminal options, and robust ratings. Designed for industrial and commercial environments, this switch provides excellent electrical life, IP54 protection, and cURus approval, making it the perfect choice for demanding control systems. Enjoy quick delivery and trusted performance for all your switching needs by purchasing directly online now.
Buy HV Series RVW4Z07D112S rocker switch now and experience unmatched reliability and performance in industrial applications.
Frequently Asked Questions
Where can I buy E-SWITCH RVW4Z07D112S?
You can click on the BUY or RFQ button to purchase RVW4Z07D112S from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part RVW4Z07D112S?
You can download the RVW4Z07D112S datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of RVW4Z07D112S?
E-SWITCH
