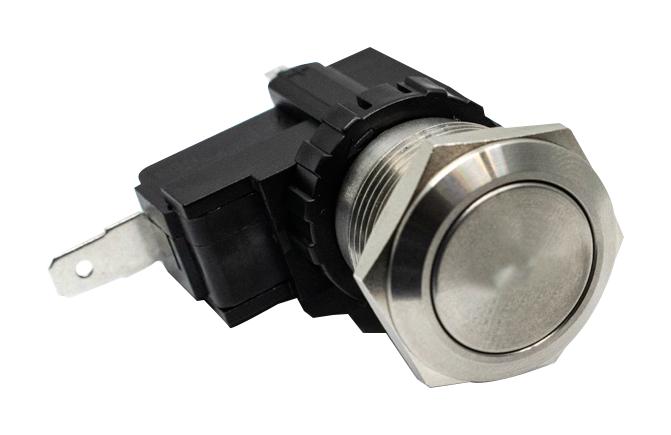

E-SWITCH SAV4F13SS331 Vandal Switch
The SAV4 series anti-vandal switch offers a rugged, 19mm diameter panel-mounted solution designed for industrial and commercial applications. It features high electrical ratings of 15A at 125/250VAC, with a mechanical life of 10,000 cycles. The switch incorporates various illumination options, including non-illuminated, ring, power, or ring/power symbols, with voltage ranges from 3V to 220V. Constructed with stainless steel or black anodized actuators, it provides reliable performance with a compact design suitable for harsh environments. Its IP67 moisture protection makes it ideal for outdoor and industrial use, while the operating temperature range is from -25°C to 85°C.
E-SWITCH SAV4F13SS331 Vandal Switch Specifications:
- Electrical Rating: 15A, 125/250VAC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mQ max
- Insulation Resistance: 100MQ @ 500VDC
- Dielectric Strength: 1,500VAC for 60 seconds
- Operating/Storage Temperature: -25°C to 85°C
- Travel: 3.2mm
- Moisture Protection: IP67 (at front panel)
- Actuation Force: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 1-3Nm
- Panel Cutout Diameter: 19mm
- Lens Style Options: Non-illuminated, illuminated rings, or power symbols
- Illumination Voltage Options: 3V-220V
- Actuator Finish: S - Stainless steel or Black anodized
- Thread Size: M19 x 1.0
Buy the Duracell 13SS331 – Reliable Switches for Industrial Applications
Secure your industrial control systems with the durable SAV4 vandal switch. This 19mm panel-mounted switch features high current ratings, IP67 moisture protection, and multiple illumination options, making it ideal for harsh environments. Its stainless steel finish and robust design ensure long-lasting performance, whether used indoors or outdoors. With a compact profile and versatile features like ring and power symbols, it simplifies installation and maintenance. Purchase online today to enhance your equipment reliability and operational efficiency with trusted industrial-grade switches.
Order your Duracell Series SAV4F13SS331 today and give your projects the dependable quality they deserve with rugged vandal-proof performance.
Frequently Asked Questions
Where can I buy E-SWITCH SAV4F13SS331?
You can click on the BUY or RFQ button to purchase SAV4F13SS331 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SAV4F13SS331?
You can download the SAV4F13SS331 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SAV4F13SS331?
E-SWITCH
