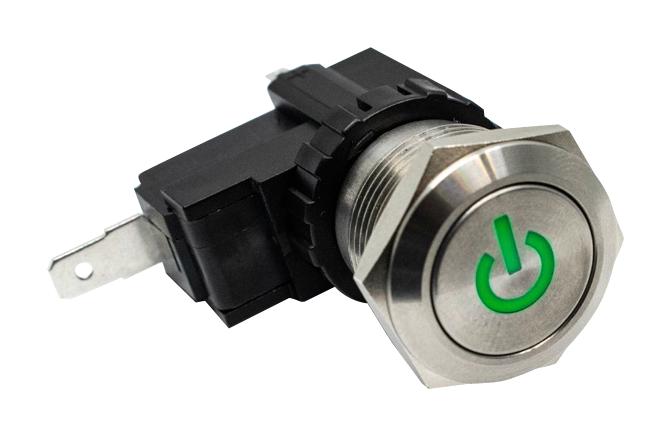

E-SWITCH SAV4F1BSS531 Industrial Anti-Vandal Switch
The SAV4 series anti-vandal switch is a durable, high-current industrial switch designed for demanding applications. It features a 19mm panel cutout, and offers multiple actuation and illumination options, including non-illuminated, ring, power, and ring/power symbols with LED illumination. The switch supports both momentary and latching functions, rated at 15A, 125/250VAC, with an electrical life of 10,000 cycles. Its rugged stainless steel or black anodized aluminum actuator ensures long-lasting, reliable operation in harsh environments, with IP67 moisture protection and a travel distance of 3.2mm.
E-SWITCH SAV4F1BSS531 Industrial Anti-Vandal Switch Specifications:
- Electrical Rating: 15A, 125/250VAC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 1,500VAC for 60 seconds
- Operating/Storage Temperature: -25°C to 85°C
- Travel: 3.2mm
- Moisture Protection: IP67 (front panel)
- Actuation Force: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 1-3Nm
- Body Series: F - Flat
- Actuator Finish: S - Stainless Steel, Black Anodized
- Dimensions: Panel cutout diameter 19mm, Mounting hole 22.00mm x 15.50mm
- Illumination Voltage Options: 3-24VDC
- Rated for high current applications, suitable for industrial equipment and control panels.
Buy the Buy Brand Switch Part Number SAV4F1BSS531 Online
Purchase the Brand SAV4 series anti-vandal switch online and ensure reliable, durable control for your industrial applications. Featuring high current rating of 15A at 125/250VAC, this switch supports multiple actuation and illumination options, making it ideal for demanding environments. Its IP67 rated moisture protection, rugged stainless steel or black anodized actuator, and compact 19mm panel cutout provide excellent durability and ease of installation. Whether for power control or signaling, this switch is designed for long-lasting, high-performance operation in industrial panels, automation, and control systems.
Get Brand SAV4F1BSS531 today—built for precision and long-lasting durability in demanding industrial environments.
Frequently Asked Questions
Where can I buy E-SWITCH SAV4F1BSS531?
You can click on the BUY or RFQ button to purchase SAV4F1BSS531 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SAV4F1BSS531?
You can download the SAV4F1BSS531 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SAV4F1BSS531?
E-SWITCH
