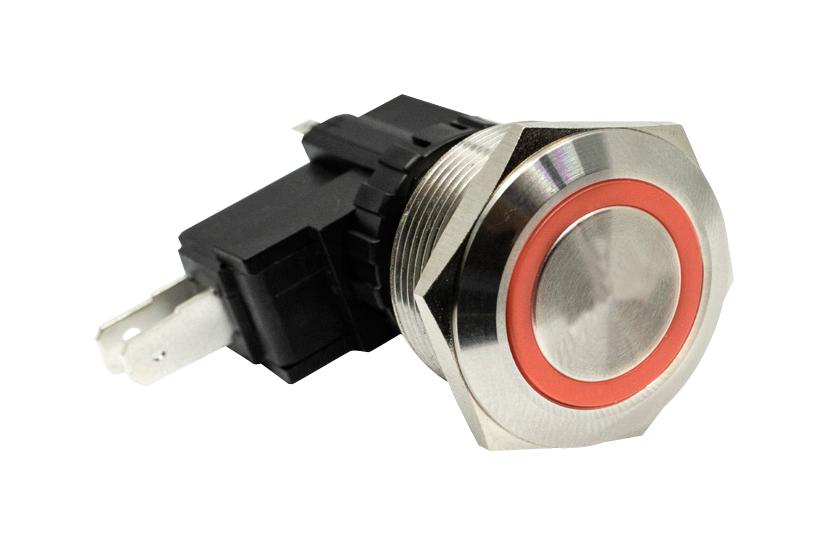

E-SWITCH SAV8F13SS311 Anti-Vandal Switch
The SAV8 series anti-vandal switch offers a reliable, durable solution for industrial applications. It features a 25mm panel cutout, with various illumination options and high current ratings of 15A at 125/250VAC. The switch supports multiple actuation functions including momentary and latching, with a robust stainless steel or black anodized finish. Designed for harsh environments, it provides moisture protection IP67, operates within -25°C to 85°C, and includes specifications on electrical ratings, contact resistance, insulation resistance, dielectric strength, and actuation force for dependable performance in demanding settings.
E-SWITCH SAV8F13SS311 Anti-Vandal Switch Specifications:
- Electrical Rating: 15A, 125/250VAC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 100mΩ max
- Insulation Resistance: 100MΩ @ 500VDC
- Dielectric Strength: 1,500VAC for 60 seconds
- Operating/Storage Temperature: -25°C to 85°C
- Travel: 3.2mm
- Moisture Protection: IP67 at front panel
- Actuation Force: 3.5N
- Panel Thickness: 1-10mm
- Hex Nut Torque: 1-3Nm
Buy the Generic 13SS311 – Reliable Anti-Vandal Switch for Industrial Applications
Purchase the SAV8F13SS311 anti-vandal switch online today and enjoy a robust, high-performance switch designed for harsh industrial environments. It features a 25mm panel cutout, IP67 moisture protection, and illuminated options for visibility. With a 15A current rating at 125/250VAC, it supports both momentary and latching actuation with high durability, operating within -25°C to 85°C. Ideal for industrial, security, and automation applications, this switch ensures reliable performance and easy installation for demanding projects.
Get SAV8F13SS311 today—built for precision and long-lasting durability in rugged environments.
Frequently Asked Questions
Where can I buy E-SWITCH SAV8F13SS311?
You can click on the BUY or RFQ button to purchase SAV8F13SS311 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SAV8F13SS311?
You can download the SAV8F13SS311 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SAV8F13SS311?
E-SWITCH
