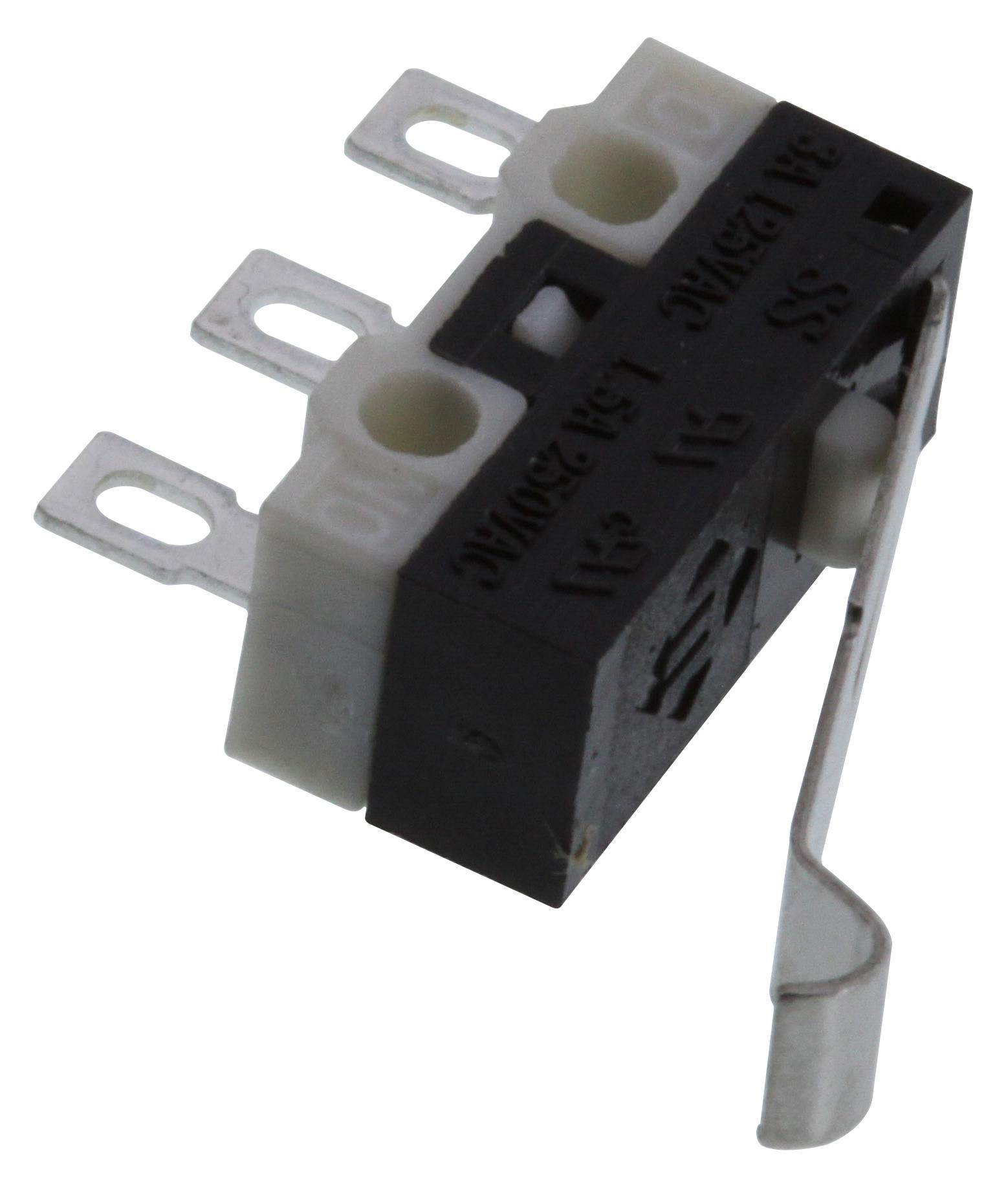

E-SWITCH SS0750302F035S1A Snap Action Switch
The SS series snap action switches are sub-miniature, highly reliable components designed for precise operation in various applications like appliances, vending, and industrial controls. They feature a high temperature PBT housing, silver or gold alloy contacts, and a mechanical life expectancy of 1,000,000 cycles. With contact ratings up to 3A at 125V AC, insulation resistance of 100 MQ, and operating temperatures from -25°C to 75°C, these switches provide durability and dependable performance in compact sizes, suitable for demanding circuit control environments.
E-SWITCH SS0750302F035S1A Snap Action Switch Specifications:
- Contact Rating: 0.4VA max. @ 20 VDC or VAC, 0.1 A @ 5 VDC, 1.5 A @ 250 V UL, 3 A @ 125 V UL
- Life Expectancy: 10,000 cycles typical
- Mechanical Life: 1,000,000 cycles typical
- Insulation Resistance: 100 MQ min. @ 500 V DC
- Dielectric Strength: 500 V DC
- Operating Temperature: -25°C to 75°C
- Housing: High Temperature PBT (UL94 V-0)
- Terminals: Copper Alloy, plated
- Contacts: Silver Alloy or Gold
- Operating Force: See Chart
- Switch and actuator buttons: High Temperature PBT (UL94 V-0)
- Terminals: PCB pins, solder lug, right/left angle options
- Certifications: UL Listed
Buy the SYST Te – Reliable Snap Action Switches for Industrial Applications
Purchase the dependable snap action switch online today. Designed for high reliability in industrial controls, appliances, and vending machines, this compact switch offers outstanding durability with a mechanical life of 1,000,000 cycles, and ratings up to 3A at 125V. Its high temperature PBT housing ensures resilience in extreme environments, making it ideal for demanding applications. Easy to install with multiple terminal options, ensuring seamless integration into your systems while providing consistent, reliable performance over time.
Get SYST Te SS0750302F035S1A today—built for precision and long-lasting durability in demanding circuit control environments.
Frequently Asked Questions
Where can I buy E-SWITCH SS0750302F035S1A?
You can click on the BUY or RFQ button to purchase SS0750302F035S1A from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part SS0750302F035S1A?
You can download the SS0750302F035S1A datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of SS0750302F035S1A?
E-SWITCH
