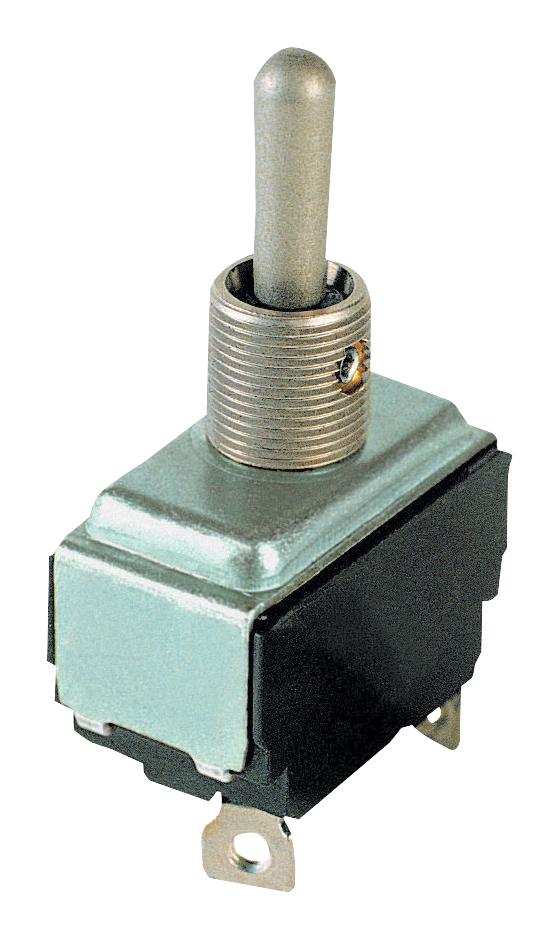

E-SWITCH ST124D00 Industrial Control Switch
The ST124D00 is a heavy-duty industrial switch designed for demanding applications, featuring UL approvals and various terminal options including tab, screw, and solder. It offers multiple functions with rubber boot protection for water and dust resistance, along with stainless steel housing, nickel-plated brass actuator and bushing, and silver alloy contacts for durability. Rated for 125VAC and 250VAC at 20A, it supports up to 6,000 cycles, with a temperature range of -20°C to 85°C. Ideal for industrial control and automation, this switch provides reliable performance under tough conditions.
E-SWITCH ST124D00 Industrial Control Switch Specifications:
- Voltage Rating: 125VAC [cULus], 250VAC [cULus]
- Current Rating: 20A at 125VAC, 4.5HP at 125-250VAC
- Switch Cycles: 6,000 cycles
- Temperature Range: -20°C to 85°C
- Contact Resistance: 50mΩ Max
- Insulation Resistance: 800MO Min. at 500VDC
- Dielectric Strength: 1,500VAC for 1 minute
- Body Material: Phenolic, UL94 V-0
- Actuator & Bushing: Nickel-plated Brass
- Housing: Stainless Steel
- Contacts: Silver Alloy
- Terminal Options: Solder, Screw, 4.8mm Tab
- Protection: Rubber Boot for water and dust protection
- Mechanical Life: 6,000 cycles
- Mounting: Panel Mount with standard and optional accessories
Buy the Industrial Series Switch: ST124D00
Purchase the ST124D00 industrial control switch online today to ensure reliable performance in your applications. Featuring UL approvals, water and dust protection via rubber boot, and multiple terminal options, this switch delivers durability and versatility. Suitable for demanding industrial environments, it supports 20A at 125VAC, 4.5HP at 125-250VAC. Its stainless steel housing, nickel-plated brass actuator, and silver alloy contacts make it ideal for automation, machinery, and control systems. Order now for fast, secure delivery and exceptional quality.
Get ST124D00 industrial switch today—built for precision and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy E-SWITCH ST124D00?
You can click on the BUY or RFQ button to purchase ST124D00 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ST124D00?
You can download the ST124D00 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ST124D00?
E-SWITCH
