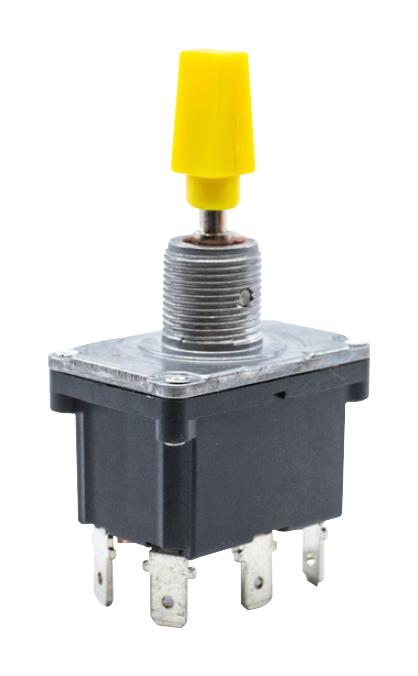

E-SWITCH ST4DP5AT1S2 Industrial Toggle Switch
The ST4 series toggle switch is designed for industrial and control panel applications, offering reliable performance with single and double pole options. It features a contact rating of up to 20A at 125/250VAC, with an electrical life of 10,000 cycles. The switches support multiple actuator, termination, and circuit configurations, including IP68 moisture protection and UL listing. Suitable for panel thicknesses of 1-8mm, these switches are ideal for demanding environments requiring durability, multiple positions, and easy installation options.
E-SWITCH ST4DP5AT1S2 Industrial Toggle Switch Specifications:
- Contact Rating: 16(8)A 125/250VAC, 20(8)A 125/250VAC, 20A 6-30VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 50mΩ Max. initial
- Insulation Resistance: 50MΩ Min.
- Dielectric Strength: 1500V RMS
- Operating Temperature: -10°C to 55°C
- Storage Temperature: -10°C to 65°C
- Circuit Function: SP or DP, 2 or 3 Position
- Agency Approvals: cURus
- Moisture Protection: IP68
- Panel Thickness: 1-8mm
- Poles: Single or Double
- Terminals: Quick Connect, Solder Lug, Screw Terminal
- Actuator Options: Metal or Plastic Bat, Snap Action, Tactile
Buy the Industrial Series Switches ST4DP5AT1S2: Reliable Toggle Switch
Purchase the reliable industrial toggle switch series ST4P5AT1S2 online today. Designed for demanding environments, this switch offers 20A current capacity, IP68 moisture protection, and UL listing. With various circuit and actuator options, it provides durability and flexibility for control panels and machinery. Easy to install with quick connect or screw terminals, it supports panel thicknesses of 1-8mm. Ensure your project’s success with this high-quality, rugged toggle switch available for online purchase now.
Order your industrial Series Switches ST4P5AT1S2 today and give your projects the dependable quality they deserve with durable, high-performance toggle switches.
Frequently Asked Questions
Where can I buy E-SWITCH ST4DP5AT1S2?
You can click on the BUY or RFQ button to purchase ST4DP5AT1S2 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ST4DP5AT1S2?
You can download the ST4DP5AT1S2 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ST4DP5AT1S2?
E-SWITCH
