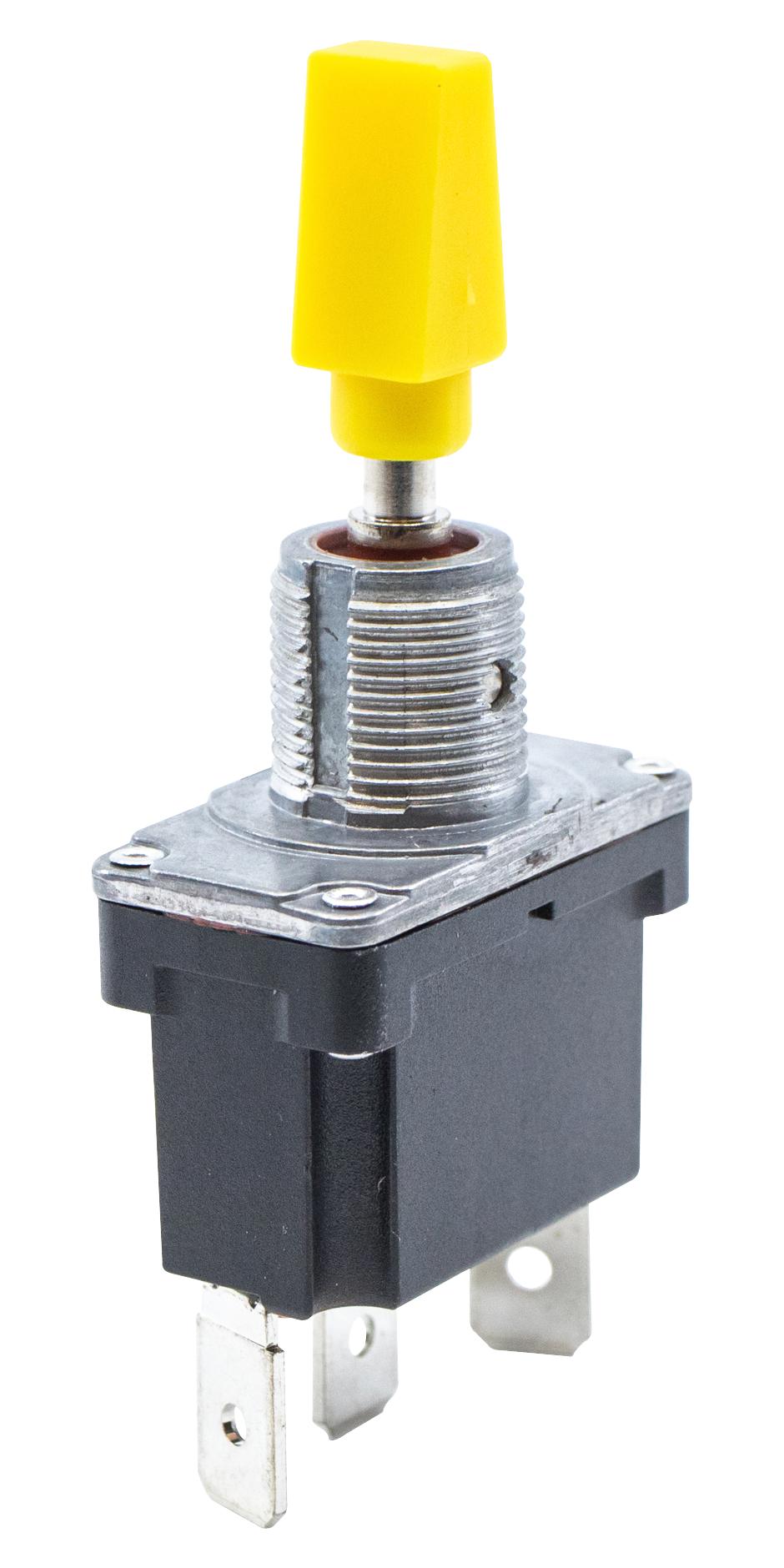

E-SWITCH ST5SP81T2C2 Industrial Toggle Switch
The ST5 series toggle switch offers versatile, reliable switching for industrial control panels and electronic equipment. Designed with multiple pole and circuit options, it features a durable construction with various actuator and termination configurations, making it suitable for demanding environments. The switch provides an electrical rating of 16A at 125/250VAC and 20A at 6-30VDC, with a mechanical life of 10,000 cycles. It complies with cURus standards and is protected against moisture, making it ideal for industrial automation, machinery, and control systems.
E-SWITCH ST5SP81T2C2 Industrial Toggle Switch Specifications:
- Contact Rating: 16A 125/250VAC, 20A 125/250VAC, 20A 6-30VDC
- Electrical Life: 10,000 Cycles
- Contact Resistance: 50mΩ Max. initial
- Insulation Resistance: 50MOQ Min.
- Dielectric Strength: 1500V RMS
- Operating Temperature: -10°C to 125°C
- Storage Temperature: -10°C to 125°C
- Circuit Function: SP or DP, 2 or 3 Position
- Agency Approvals: cURus
- Moisture Protection: IP40
- Panel Thickness: 1-8mm
- Number of Poles and Functions: Single or Double Pole, Multiple Positional Options
- Actuator Options: Metal Bat (17mm), Plastic Bat (22mm)
- Termination Options: Quick Connect, Solder Lug, Screws
- Dimensions: Body length approx. 15.70mm, actuator diameter 5.00mm, switch depth 12.00mm
Buy the Innovative Switchgear ST5 Series – Reliable Toggle Switches for Industrial Applications
Purchase the ST5 Series toggle switch online today and enjoy reliable switching performance in demanding environments. Designed with multiple circuit options, actuator styles, and termination methods, this switch is perfect for industrial automation, control panels, machinery, and electronic equipment. Its durable construction ensures a lifespan of 10,000 cycles, combining high electrical ratings with moisture protection and cURus approval. Simplify your control system assembly with this versatile, easy-to-install toggle switch available for quick online ordering and fast delivery.
Get ST5 Series toggle switch today—built for precision and long-lasting durability in industrial control systems.
Frequently Asked Questions
Where can I buy E-SWITCH ST5SP81T2C2?
You can click on the BUY or RFQ button to purchase ST5SP81T2C2 from an authorized E-SWITCH distributor.
How do I troubleshoot issues or seek technical support for part ST5SP81T2C2?
You can download the ST5SP81T2C2 datasheet or visit the E-SWITCH website for support.
Who is the manufacturer of ST5SP81T2C2?
E-SWITCH
